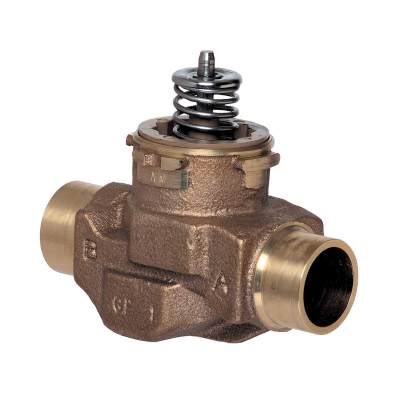

HEATINGVARIOUSMFG-GENERIC VCZAM1100 2-way 3/4 in Sweat VC Valve Assembly 4.6 Cv

Product Description

The HEATINGVARIOUSMFG-GENERIC VCZAM1100 is a two-way valve assembly suitable for both heating and cooling systems. This product is designed to control the flow of hot or chilled water, making it ideal for hydronic applications. It operates effectively with solutions that contain up to sixty percent glycol concentration. The bronze body ensures durability, while the EPDM O-ring seal on a Noryl piston provides reliable operation. The valve can be controlled through various controllers including low or line voltage SPDT, SPST, or floating types.

• Quick open and linear flow characteristics
• Bi-directional installation capability
• Easy actuator removal without system drainage

Product Highlights

This valve is essential for zoned heating and cooling, allowing for efficient temperature management in various environments.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: VCZAM1100

Technical Specifications

• Maximum Safe Operating Pressure: 300 psi
• Connection Type: Sweat
• Pipe Size: 3/4 in
• Fluid Temperature: 34 F to 203 F
• Maximum Differential Pressure Ratings: 60 psi
• Capacity (Cv): 4.6 Cv
• Valve Action: Stem up to close A port
• Controlled Fluid: Chilled or hot water with up to 60% Glycol
