Product Description

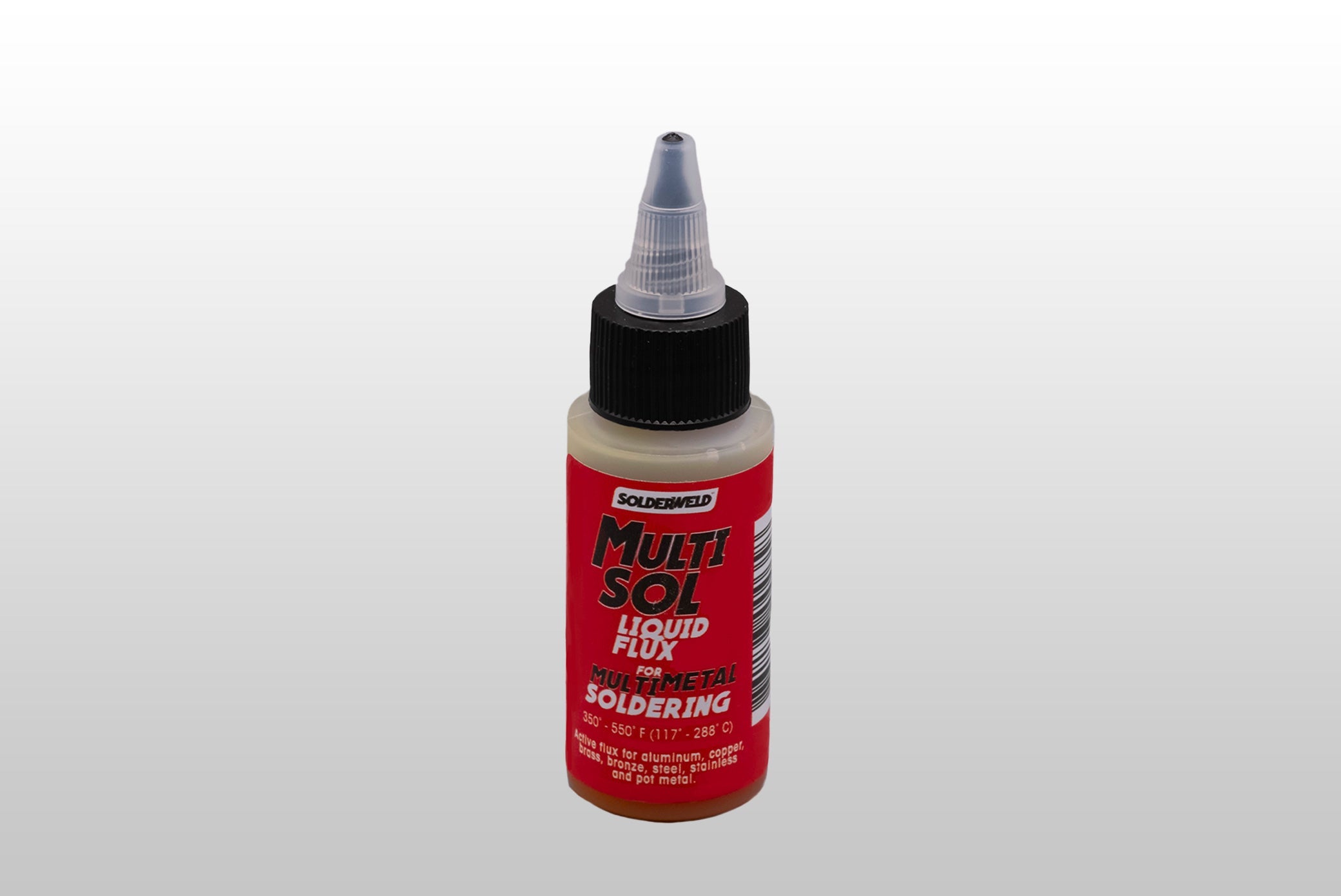

The HEATINGVARIOUSMFG-GENERIC SW-MSF2 Multi Sol Liquid Flux is made for low-temperature soldering of aluminum, copper, and other metals. It is especially useful for working with dissimilar metals like pot metal. This flux is chloride-free and organic-based, presenting a golden color. Its effective working range is between three hundred fifty to five hundred fifty degrees Fahrenheit (one hundred seventy-seven to two hundred eighty-eight degrees Celsius). The residue left by this flux is conductive and requires removal using hot water or alcohol.
- Designed for low-temperature soldering of various metals.
- Effective at three hundred fifty to five hundred fifty degrees Fahrenheit (one hundred seventy-seven to two hundred eighty-eight degrees Celsius).
- Residue is conductive and slightly corrosive; remove with hot water or alcohol.
Product Highlights
This liquid flux is designed for effective soldering across different metals, making it suitable for a variety of applications.
Product Information
Standard Information
-
Active Temperature Range: three hundred fifty to five hundred fifty degrees Fahrenheit (one hundred seventy-seven to two hundred eighty-eight degrees Celsius)
-
Appearance: clear gold-colored viscous syrup
Technical Specifications
-
Viscosity: one thousand fifty cps #3 spindle, twenty rpm
-
Solubility: soluble in water
-
pH: slightly alkaline
-
Corrosion Resistance: fair
-
Boiling Point: two hundred seventy-three degrees Fahrenheit (one hundred thirty-four degrees Celsius)
-
Flash Point: two hundred thirty degrees Fahrenheit (one hundred ten degrees Celsius)
-
Weight Per Gallon: ten lbs. (four point five kg)
-
Shelf Life: two years unopened at ambient temperature
