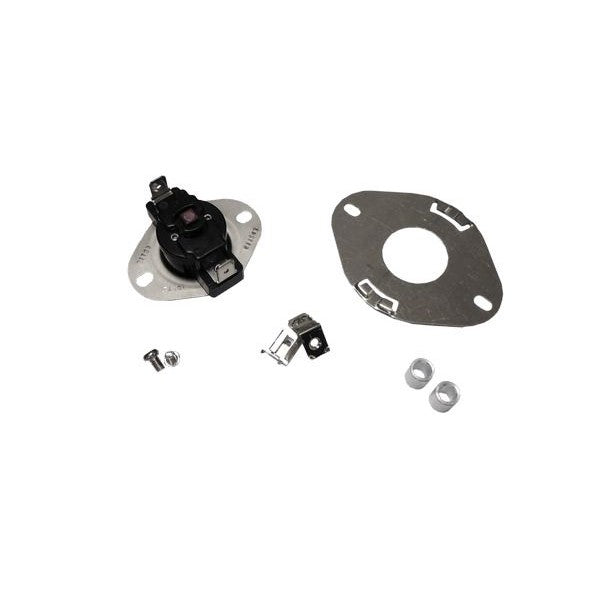

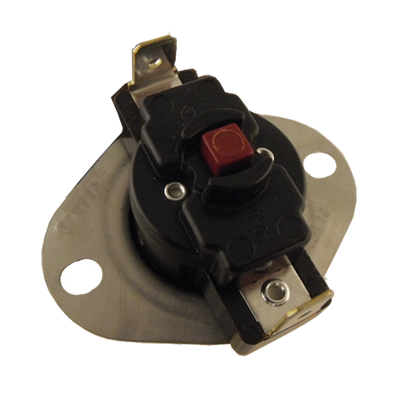

HEATINGVARIOUSMFG-GENERIC SHM210 Supco SHM210 Heating Limit Thermostat Thermodisc

Product Description

The HEATINGVARIOUSMFG-GENERIC SHM210 is a thermostat designed for heating applications. It features a bimetal disc temperature control and is suitable for loads up to twenty-five amps at two hundred forty volts AC. This manual reset, SPST two-terminal switch opens on rise, providing safety and reliability.

• Bimetal disc temperature control
• Manual reset SPST two-terminal switch
• Opens at 210 degrees Fahrenheit

Product Highlights

The SHM210 is built for durability with welded construction, ensuring the integrity of its components.

Product Information

Standard Information

• Country of Origin: Mexico
• UPC: 6.87152E+11

Technical Specifications

• Cut out temperature: 210 degrees Fahrenheit
• FLA @ 120VAC: 10 amps
• FLA @ 240VAC: 5 amps
• LRA @ 120VAC: 60 amps
• LRA @ 240VAC: 30 amps
• Pilot Duty @ 120VAC: 125 VA
• Pilot Duty @ 240VAC: 125 VA
