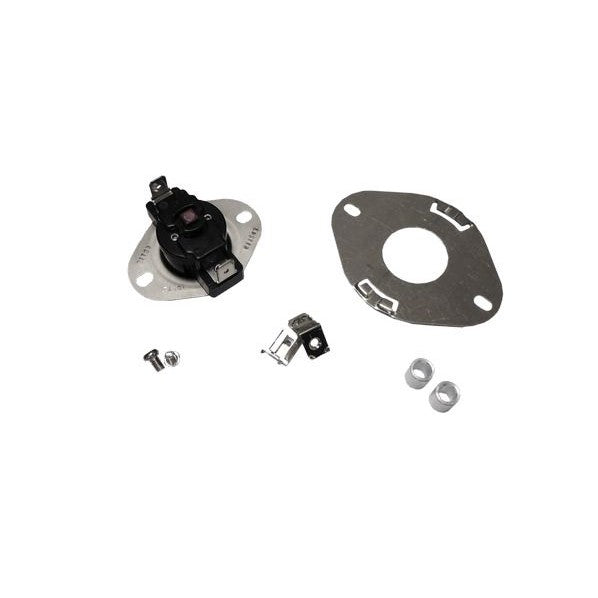

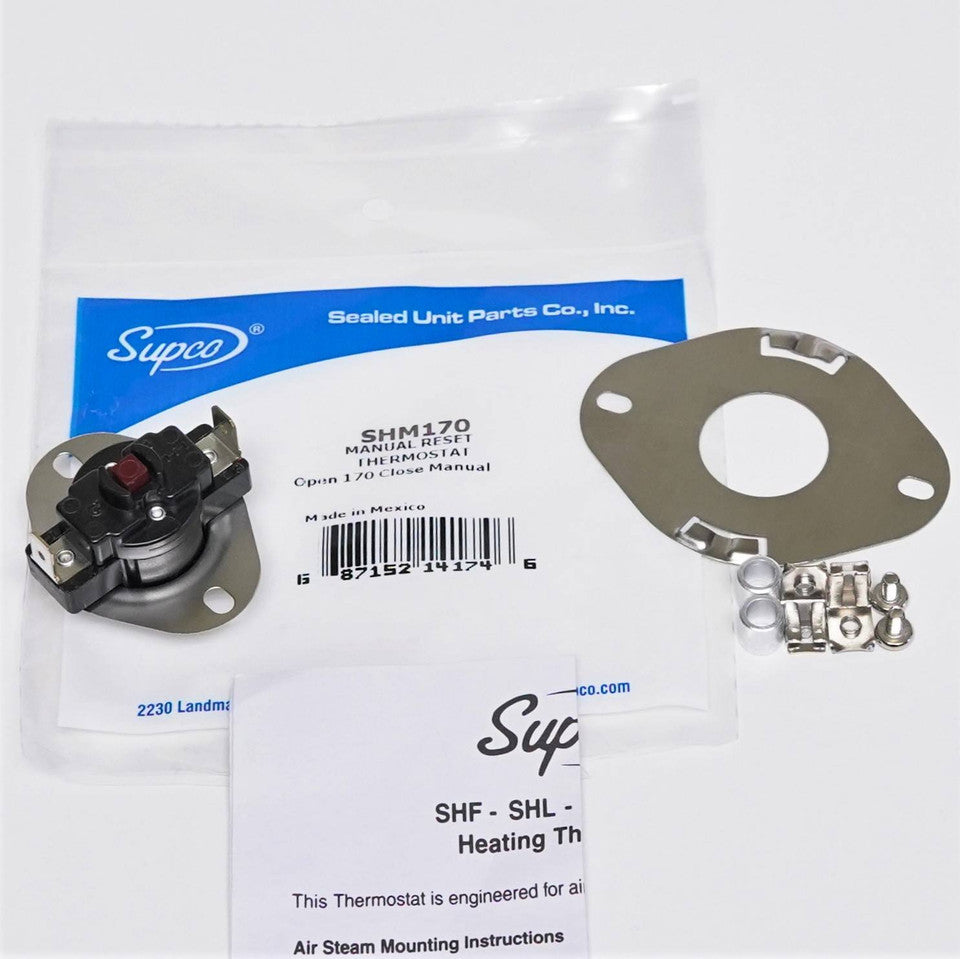

HEATINGVARIOUSMFG-GENERIC SHM170 Thermostat w/ Manual Reset

Product Description

The HEATINGVARIOUSMFG-GENERIC SHM170 thermostat is a bimetal disc temperature control device. It provides efficient temperature management for various applications. This model can support loads up to twenty-five amps at two hundred forty volts AC. The design ensures robust performance, with a welded construction enhancing the durability of internal components.

• Bimetal disc temperature control for effective management.
• Handles loads up to twenty-five amps at two hundred forty volts AC.
• Manual reset SPST switch configuration for user control.

Product Highlights

This thermostat is suited for environments requiring manual reset functions and reliable temperature control.

Product Information

Standard Information

• Country of origin: Brazil
• UPC: 687152000000

Technical Specifications

• Cut out temperature: 170°F
• Cut in temperature: Manual
• FLA @ 120VAC: 10A
• FLA @ 240VAC: 5A
• LRA @ 120VAC: 60A
• LRA @ 240VAC: 30A
• Operating temperature range: 170°F
• Switch action: Manual reset
