HEATINGVARIOUSMFG-GENERIC SHL518 Plenum Limit Thermostat Thermodisc L250-40

Product Description

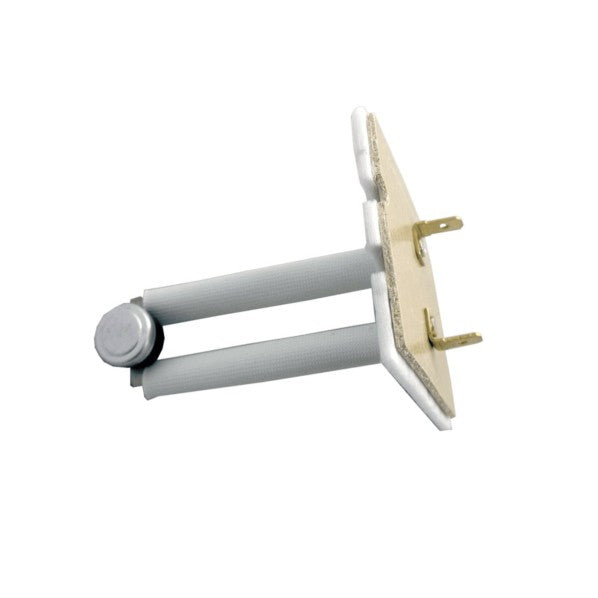

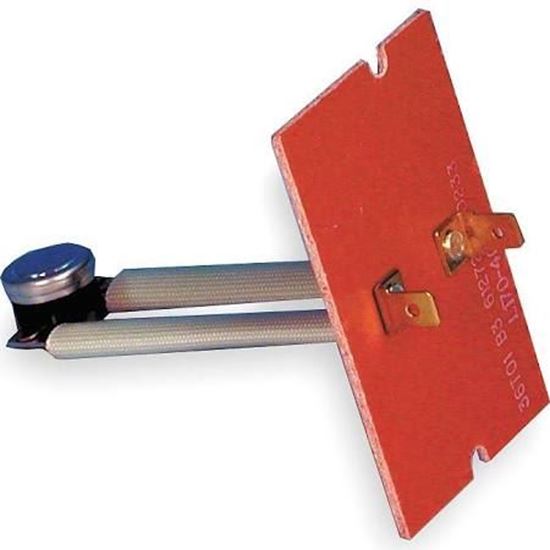

The HEATINGVARIOUSMFG-GENERIC SHL518 is a plenum limit thermostat designed for effective temperature control in heating systems. This model features a thermodisc L250-40, providing reliable performance with a compact design. It is suitable for plenum mounting and has a switch action that opens on temperature rise.

• UL recognized and CSA approved
• Temperature range from 210 degrees F to 250 degrees F
• Direct OEM replacement

Product Highlights

This thermostat is built for reliability with fixed temperature settings and auto-reset functionality. Ideal for various heating applications, the SHL518 serves as a cost-effective solution.

Product Information

Standard Information

• Brand: HEATINGVARIOUSMFG-GENERIC
• MPN: SHL518

Technical Specifications

• Open (°F): 250°F
• Close (°F): 210°F
• Differential: 40°F
• Board Width: 1.88 inches
• Board Height: 2.94 inches
• Insertion Length: 3.12 inches
• Resistive Amps @120V: 15A
• Resistive Amps @240V: 10A
• Voltage Range: 120/240/480
• Cycle/Hertz: 50/60 Hz
