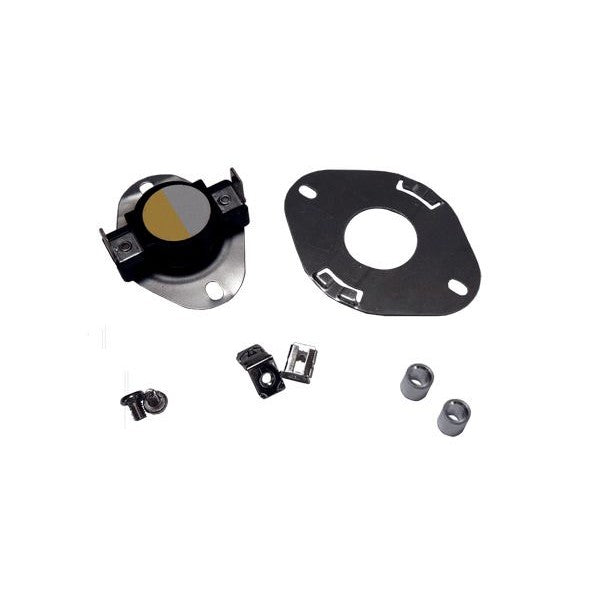

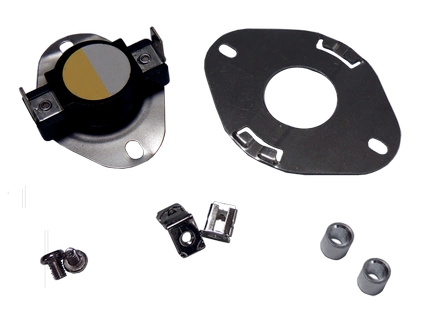

HEATINGVARIOUSMFG-GENERIC SHF120 Thermostat Fan Control

Product Description

The HEATINGVARIOUSMFG-GENERIC SHF120 thermostat fan control regulates temperature effectively. It is part of the SHF Series. This thermostat features a 3/4 (19mm) bimetal disc design. It can handle electrical loads of up to 25 amps at 240VAC. The welded construction enhances the reliability of current-carrying components. This thermostat is suitable for various applications requiring accurate temperature control.

• Handles up to 25 amps at 240VAC
• Available in SPST or SPDT switch configurations with automatic and manual reset options
• UL recognized for safety

Product Highlights

Product Information

Standard Information

• Series: SHF
• Application: Fan control

Technical Specifications

• Disc Size: 3/4 (19mm)
• Switch Configuration: SPST or SPDT
• Maximum Amperage: 25 amps
• Maximum Voltage: 240VAC
