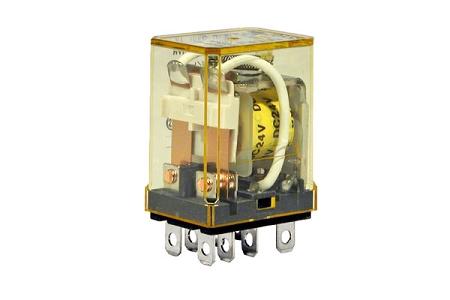

HEATINGVARIOUSMFG-GENERIC RH2B-UAC24V Relay Plug-In DPDT 10A 24VAC
Availability:
In Stock
Ships same day if ordered by 12 pm
- $39.41
- $39.41
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe HEATINGVARIOUSMFG-GENERIC RH2B-UAC24V is a relay designed for diverse applications. This compact unit features a DPDT contact configuration and is intended for socket mounting. It operates on a coil voltage of twenty-four volts AC and accommodates a contact rating of ten amps. The relay is equipped with blade terminals for simplified connections. It meets industry standards, being UL recognized, CSA certified, and CE marked.
- Contact Configuration: DPDT
- Coil Voltage: 24VAC
- Contact Current: 10A
Product Highlights
This relay is suitable for HVAC systems, offering reliable performance for electrical power control needs.Product Information
Standard Information
-
Brand: HEATINGVARIOUSMFG-GENERIC
-
Range: RH Series
Technical Specifications
Coil Type
Non Latching
Relay Terminals
Quick Connect
Contact Voltage VDC
30VDC
Coil Resistance
153ohm
Contact Material
Silver Cadmium Oxide
Approvals & Standards
CE, CSA, UL
Contact Resistance
50 mOhms max. (initial value)
Operate Time
20 msec max.
Release Time
20 msec max.
Insulation Resistance
100 MOhms min.
Rated Voltage
24VAC
Number of Poles
2
- Contact Configuration: DPDT
- Coil Voltage: 24VAC
- Contact Current: 10A
Product Highlights
This relay is suitable for HVAC systems, offering reliable performance for electrical power control needs.Product Information
Standard Information
- Brand: HEATINGVARIOUSMFG-GENERIC
- Range: RH Series
Technical Specifications
Vendor: HEATINGVARIOUSMFG-GENERIC
HEATINGVARIOUSMFG-GENERIC RH2B-UAC24V Relay Plug-In DPDT 10A 24VAC
$39.41
Vendor: HEATINGVARIOUSMFG-GENERIC
HEATINGVARIOUSMFG-GENERIC RH2B-UAC24V Relay Plug-In DPDT 10A 24VAC
$39.41
