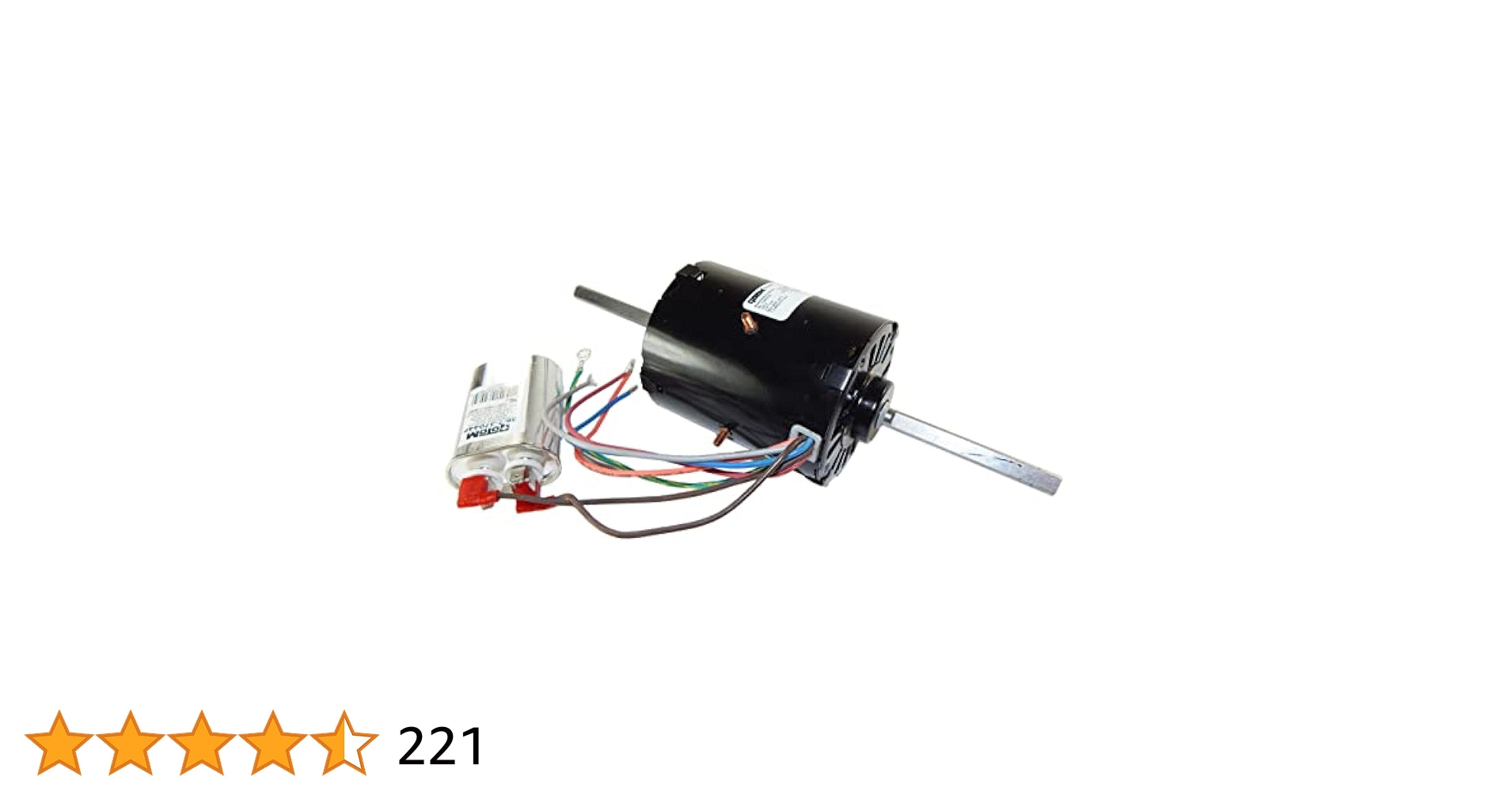

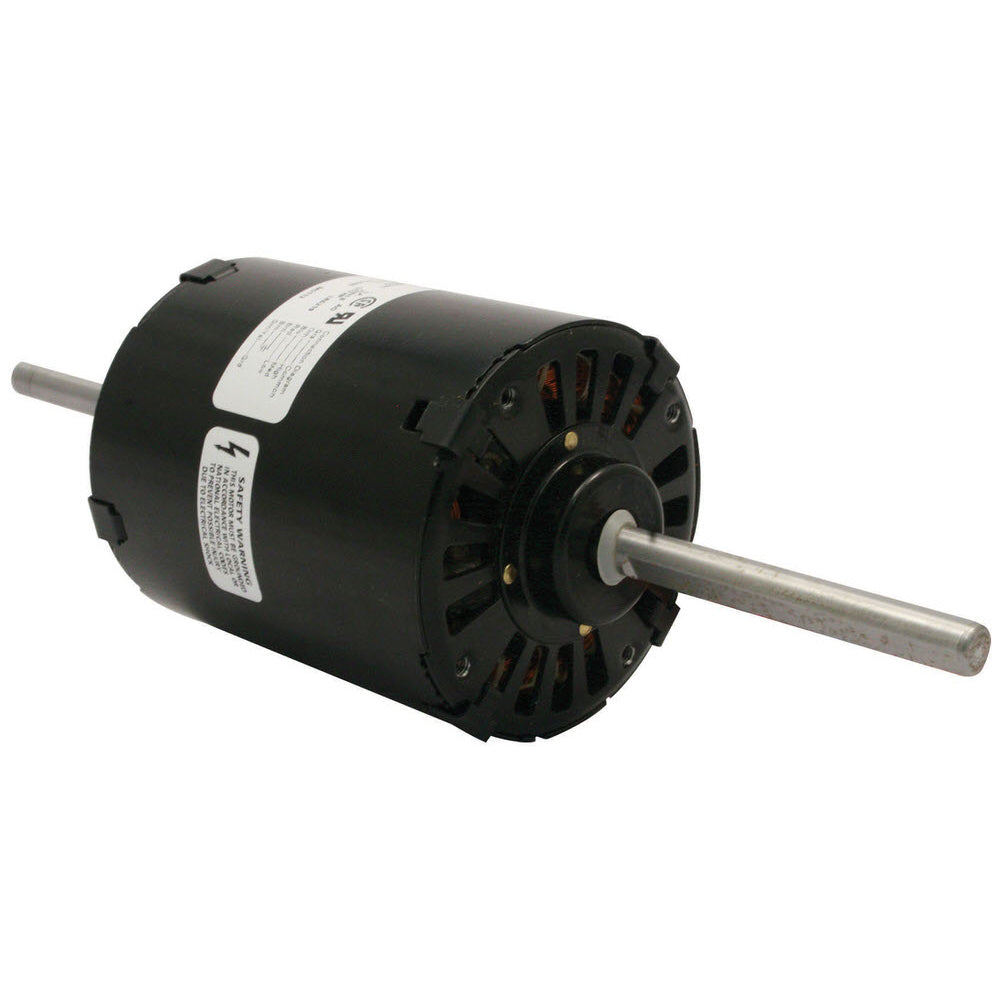

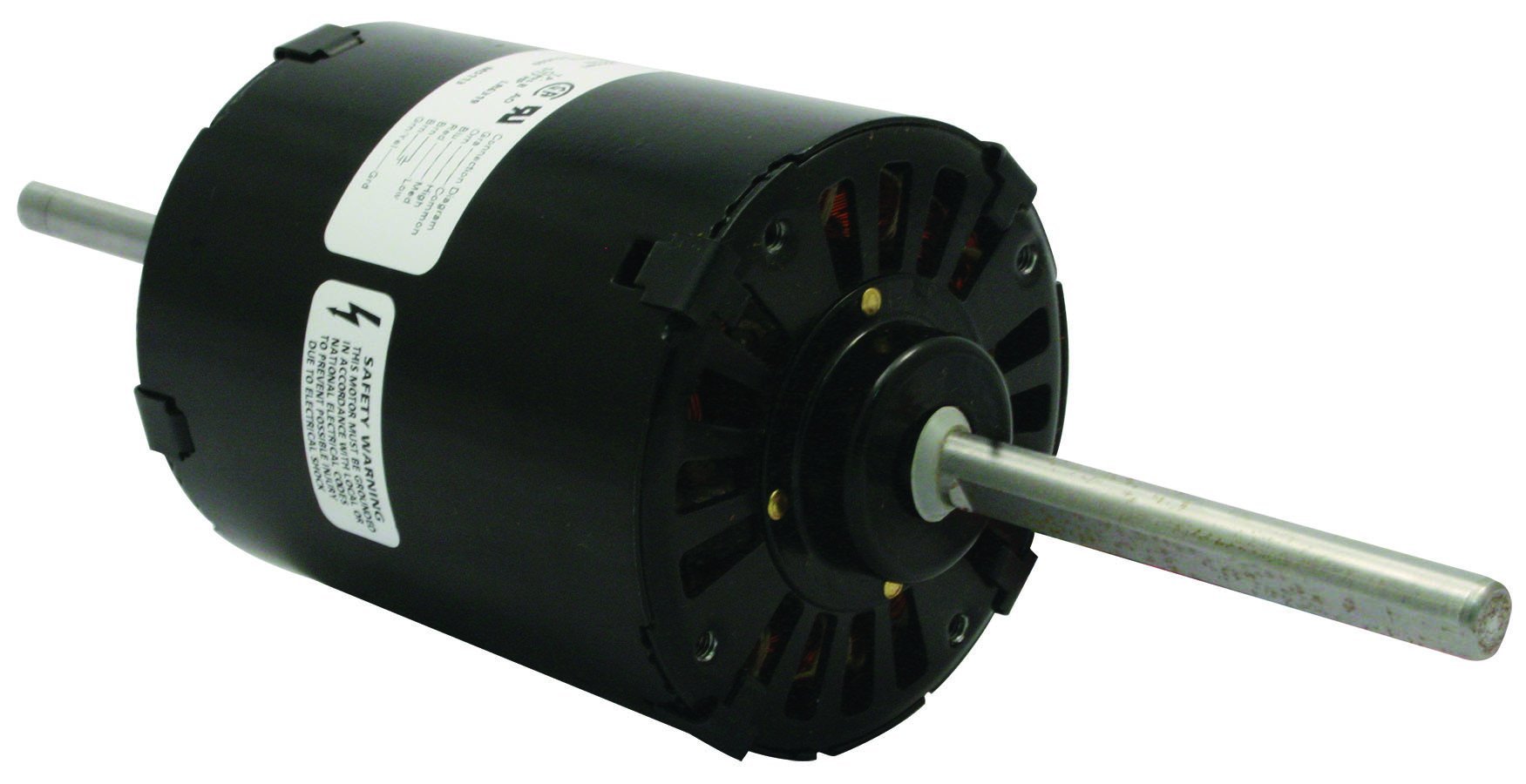

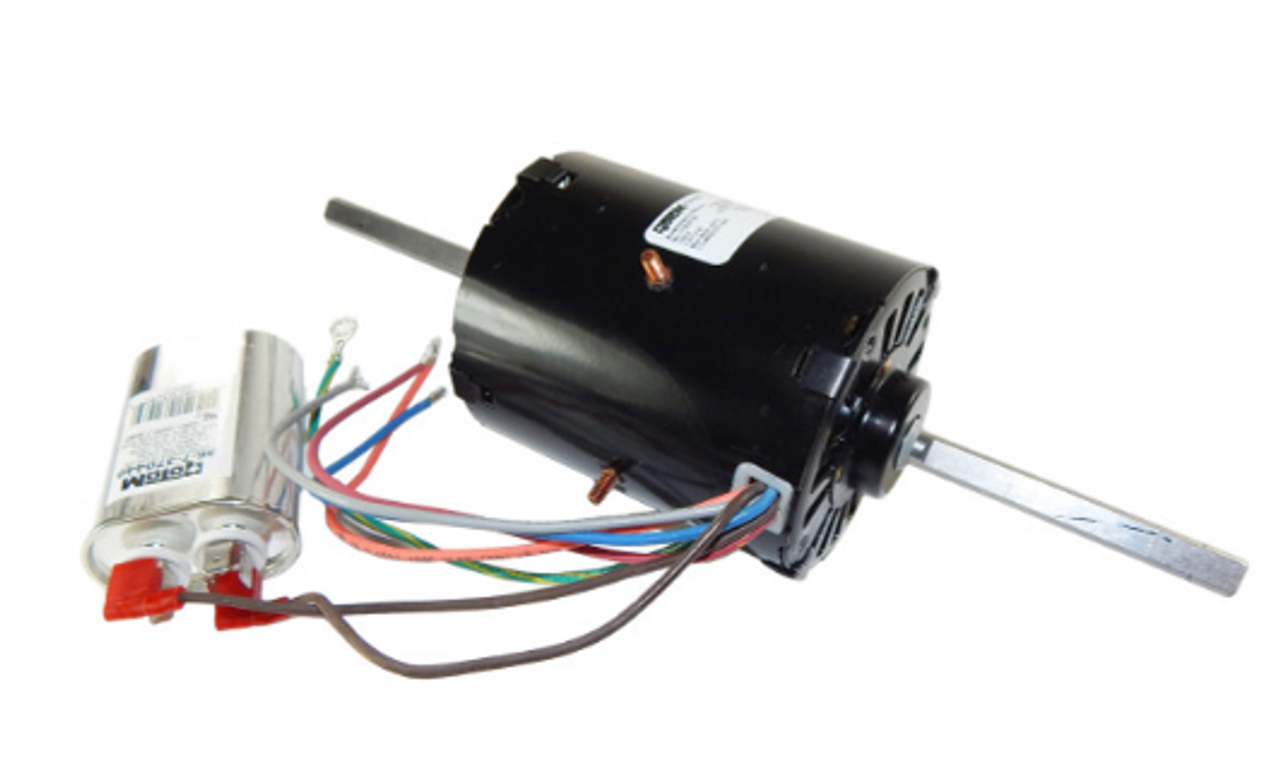

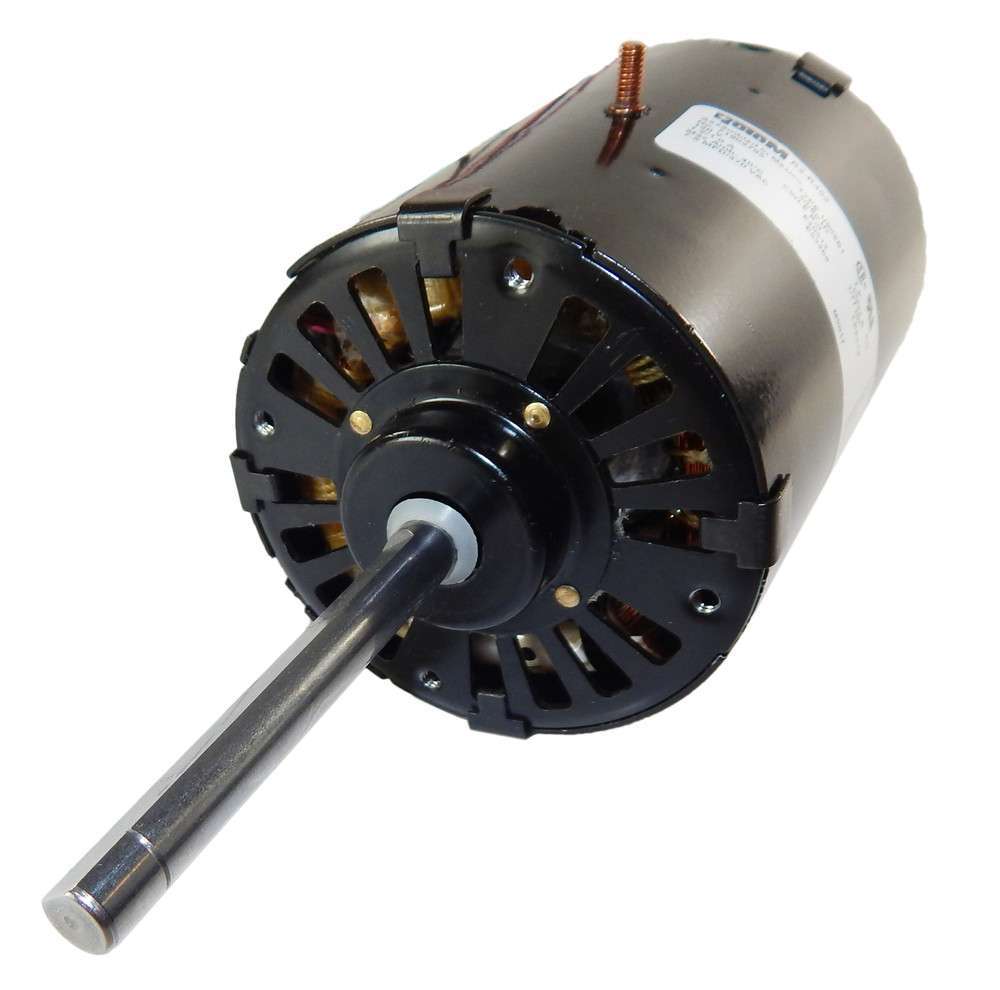

HEATINGVARIOUSMFG-GENERIC R2-R462 Rotom For Venmar Make-Up Unit 1/17 HP 115 Volts

Product Description

The HEATINGVARIOUSMFG-GENERIC R2-R462 is a Rotom-manufactured motor designed specifically for Venmar make-up air units. This motor operates at one hundred fifteen volts and delivers one-seventeenth horsepower. It features a PSC/SE type design with a sleeve bearing, ensuring reliable performance for continuous operations. The motor is thermally protected, providing added safety during use.

• 1/17 HP, 115 Volts, 0.90 Amps
• 1660 RPM with 3-speed options
• Clockwise with left-hand end rotation

Product Highlights

This motor is suitable for various applications that require consistent airflow. The durable construction is designed to withstand the demands of continual operation.

Product Information

Standard Information

• Brand: Rotom
• Voltage: 115 Volts

Technical Specifications

• Horsepower: 1/17 HP
• Speed: 1650 RPM
• Motor Diameter: 3.3 inches
• Rotation: CW
• Shaft Dimensions: 3.5 x 3/8 x 3.5 inches
• Amps: 0.90 A
