HEATINGVARIOUSMFG-GENERIC L180-40 Thermostat

Product Description

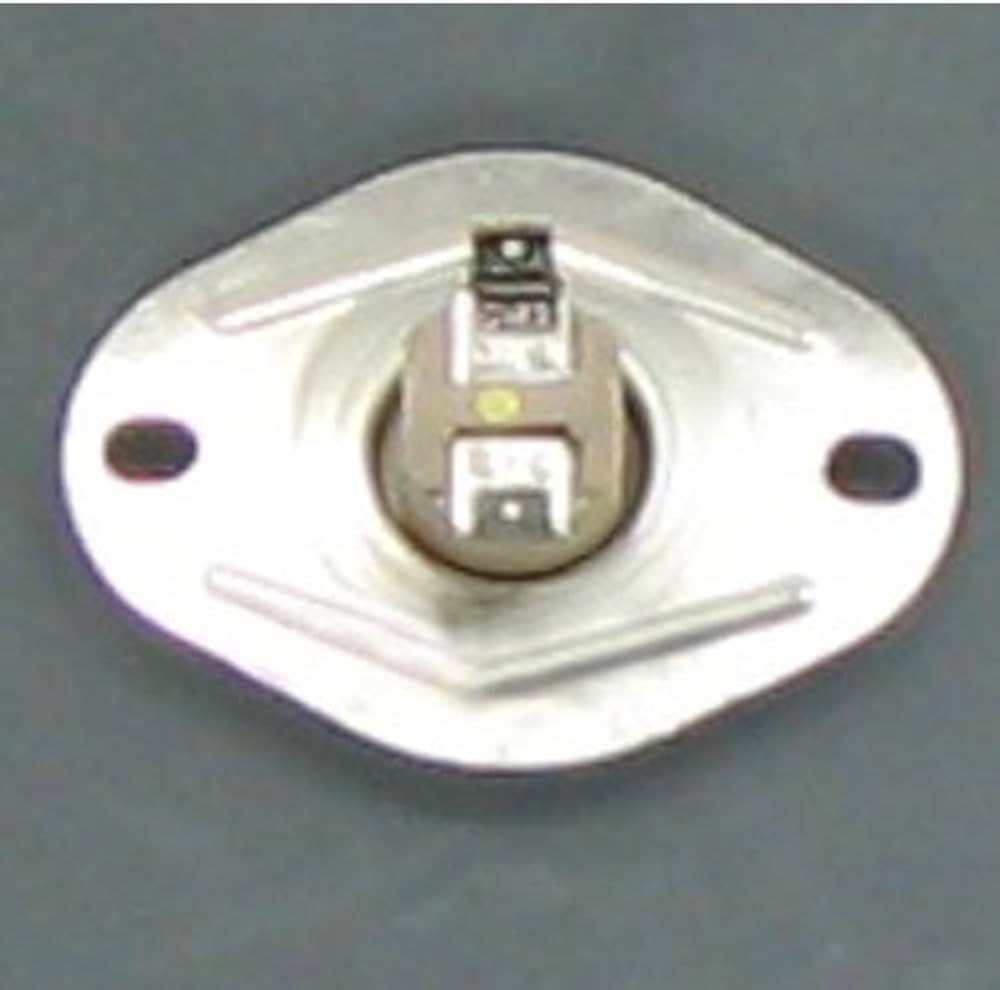

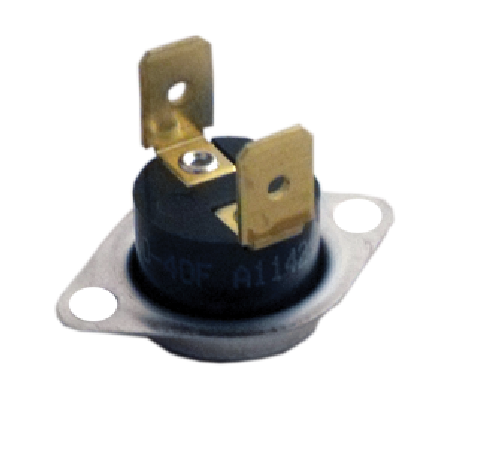

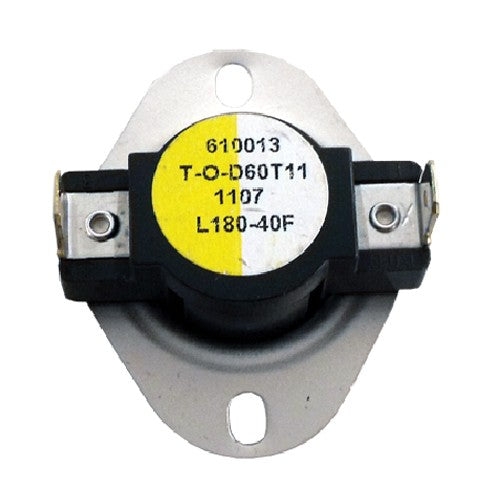

The HEATINGVARIOUSMFG-GENERIC L180-40 is a bimetal disc thermostat, ideal for temperature control applications. It is designed to reliably manage heating systems while maintaining cost-effectiveness. This thermostat features a three-quarter inch disc and operates with loads up to twenty-five amps at two hundred forty volts alternating current (VAC). It opens when temperatures rise and closes at a set differential.

• 1/4 quick disconnect terminals for straightforward installation.
• Opens at one hundred eighty degrees Fahrenheit and closes at one hundred forty degrees Fahrenheit.
• Compatible with fan and limit applications in a single pole - single throw configuration.

Product Highlights

The L180-40 thermostat is made for durability with welded construction. It serves various applications, ensuring safety and efficiency in temperature regulation.

Product Information

Standard Information

• Agency: UL, CSA

Technical Specifications

• Open Temperature (°F): 180
• Close Temperature (°F): 140
• Differential (°F): 40
• FLA @ 120VAC: 10A
• FLA @ 240VAC: 5A
• LRA @ 120VAC: 60A
• LRA @ 240VAC: 30A
• Pilot Duty @ 120VAC / 240VAC: 125 VA
• RLA @ 120VAC / 240VAC: 25A
