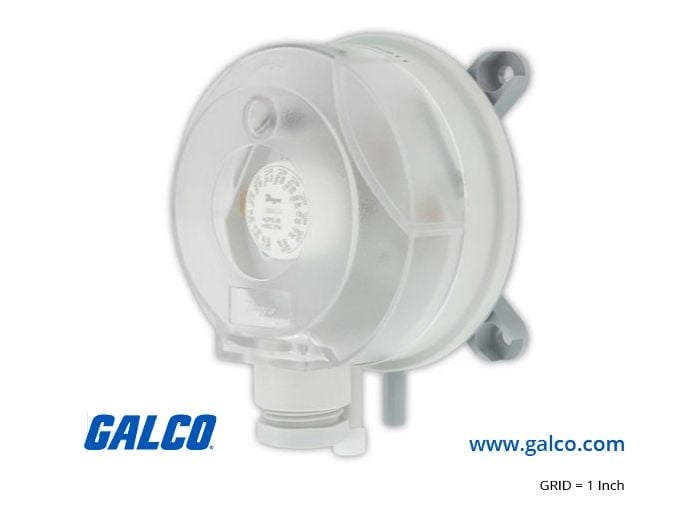

HEATINGVARIOUSMFG-GENERIC ADPS-03-2-N Adjustable Differential Pressure Switch

Product Description

The HEATINGVARIOUSMFG-GENERIC ADPS-03-2-N is an adjustable differential pressure switch suitable for various applications, including pressure, vacuum, and differential pressure. The switch features a dual-scaled adjustment knob, enabling users to modify the switching pressure without a pressure gauge. Its durable silicone diaphragm and PA 6.6 body make it compatible for use with air and other noncombustible gases.

• Designed for pressure, vacuum, and differential pressure applications.
• Dual-scaled adjustment knob for convenient switching pressure adjustment.
• Compatible with HVAC systems for monitoring and controlling environmental conditions.

Product Highlights

This switch is typically used in HVAC systems to monitor air filters, control dampers, and provide frost protection in heat exchangers.

Product Information

Standard Information

• Country of Origin: DE
• Weight: 5.6 oz (160 g)

Technical Specifications

• Service: Air and non-combustible, compatible gases
• Wetted Materials: Diaphragm material: Silicone; Housing material: POM; Switch body: PA 6.6; Cover: Polystyrene
• Temperature Limits: Process and ambient temperature from -4 to 185°F (-20 to 85°C)
• Pressure Range: 0.20 to 2.00 W.C. (50 to 500 Pa)
• Pressure Limits: Maximum operating; 40 W.C. (10 kPa)
• Switch Type: Single-pole double-throw (SPDT)
• Electrical Rating: Maximum 1.5 A @ 250 Vac, 50-60 Hz
• Electrical Connections: Push-on screw terminals, M20x1.5 with cable strain relief
• Process Connections: 5/16 (7.94 mm) OD tubing, 1/4 (6.0 mm) ID tubing
• Enclosure Rating: NEMA 13, IP54
• Approvals: CE, ETL, CSA, RoHS
• Contact Rating: 1 A
• Contact Type: SPDT
• Direction: Uni-Directional
• Housing Material: Poly
• Measurement: Inches of Water Column
• Type: Adjustable
• Power Required: Switch
• Set Point Range: 0.20 - 2 in.
• Connection Size: 1/4 in.
