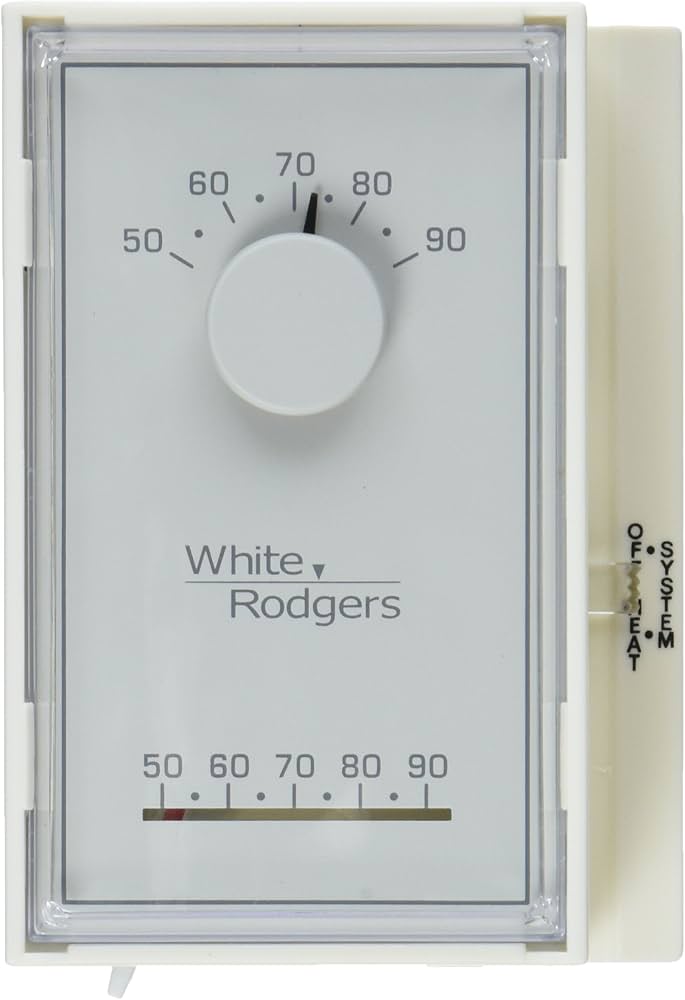

HEATINGVARIOUSMFG-GENERIC 1E50N-301 Single Stage Mercury Free Mechanical Thermostat

Product Description

The HEATINGVARIOUSMFG-GENERIC 1E50N-301 is a mechanical thermostat designed for efficient and safe temperature management. It operates at twenty-four volts alternating current and is compatible with multiple heating systems including gas, oil, and electric. This unit is ideal for applications requiring simple and effective temperature control without mercury.

• Mercury-free design enhances environmental safety.
• Works with a variety of heating systems for versatility.
• Snap-action switch ensures dependable operation.

Product Highlights

This thermostat provides reliable control in heating applications, ensuring comfort while remaining eco-friendly.

Product Information

Standard Information

• Type: Universal, Non-Programmable, Mechanical, 1-Heat
• Temperature Rating: 50 to 90 Deg F

Technical Specifications

• Cover Type: Rectangular Vertical - Snap Action
• Voltage Rating: 24 Volt AC at 50/60 Hertz
• Current Rating: 0.15 to 1.2 Amp (Cooling/Heating)
• Switch Type: Mercury Free, Snap Action
• Set Point Temperature: 50 to 90 Deg F
• Terminal Designation: RH, W
• Humidity: 0 to 90 Percent (Non-Condensing)

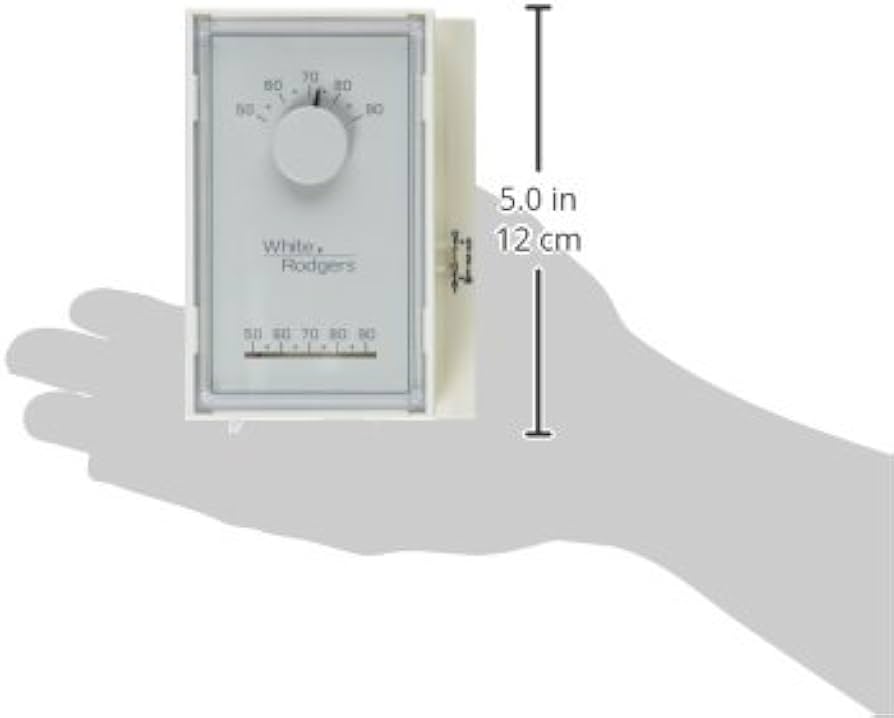

• Dimensions: 4.5H X 3.25W X 1.63D inches
