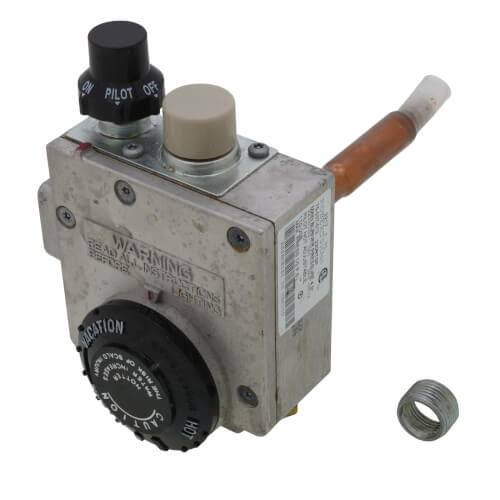

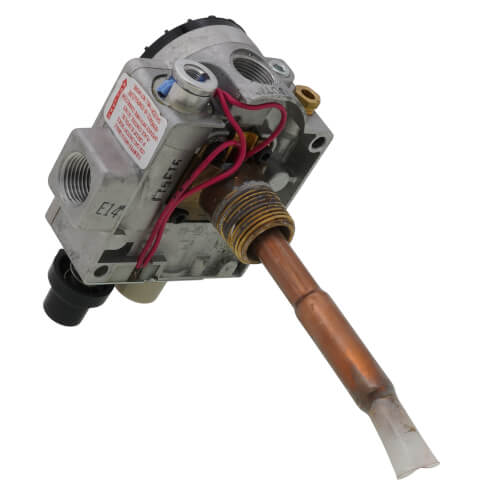

Robertshaw 110-202 Natural Gas Water Heater Control 45000 Btu with 1-3/8 Inch Shank

Product Description

The Robertshaw 110-202 Natural Gas Water Heater Control is a reliable component for maintaining optimal water heater functionality. This control has a capacity of 45000 Btu and a shank length of 1-3/8 inches.

• Built-in non-cycling Energy Cut-Off system
• 1/2 inch inlet and outlet connections
• Fixed pilot with manifold pressure tap

Product Highlights

This water heater control is designed to ensure efficient gas flow and safety. It's suitable for both residential and commercial water heaters, with a temperature range of 60 to 160 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Robertshaw
• Gas Type: Natural Gas

Technical Specifications

• MPN: 110-202
• Capacity: 45000 Btu
• Shank Length: 1-3/8 inches
• Inlet Connection: 1/2 inch NPT
• Outlet Connection: 1/2 inch inverted flare
• Temperature Range: 60 to 160 degrees Fahrenheit
• Pressure Regulation: 4.0 W.C.
• Standards: AGA, CSA
