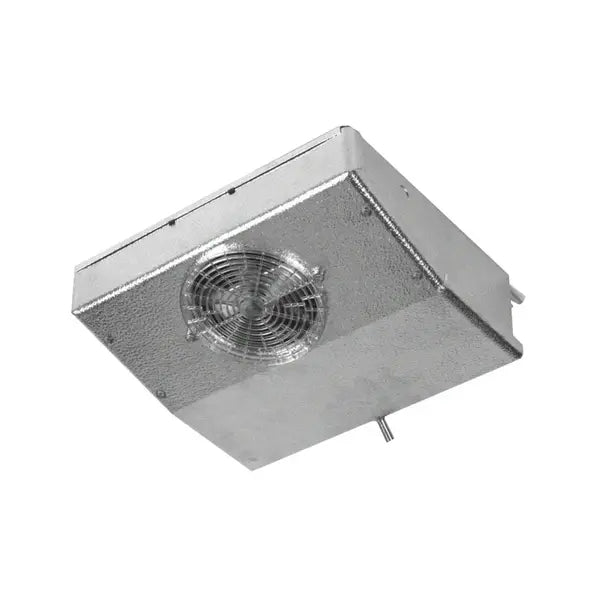

Heatcraft TL35BG Reach-In Unit Cooler 2 Fan

Product Description

The HEATCRAFT TL35BG is a reach-in unit cooler with a completely automatic defrost system. Designed for a normal operating range of +15°F to -20°F, it suits commercial freezers, ice cream boxes, and dual-temp reach-in boxes. The electric defrost system uses high-quality tubular heaters with Incoloy sheaths for oxidation and corrosion protection.

• Plate type aluminum fins with full collars and copper tubes
• Defrost termination and fan delay controls
• Compact design

Product Highlights

This cooler is ideal for applications requiring a reliable and efficient cooling system in a compact space.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: TL35BG
• Country of Origin: UNITED STATES

Technical Specifications

• Type: Equipment
• Vendor Name: Heatcraft
• URI Part Number: TL35BG
• Vendor Part Number: TL35BG
• Length (In.): 38.38
• Width (In.): 18.50
• Height (In.): 6.75
• Application: Medium Temp
• CFM: 420
• Coil Finish: Uncoated
• Connection Size Inlet (In.): 3/8
• Connection Suction (In.): 5/8
• Connection Type: IDS Suction x ODS Inlet
• Hertz: 60
• Motor FLA: 1.0
• Number of Motors: 2
• Phase: 1
• Voltage: 208-230
• Length (Inch): 38.370000
• Width (Inch): 18.500000
• Height (Inch): 6.750000
• Weight (Lbs): 31.000000
• Defrost: Electric
• Depth: 16-1/2"
• Drain Conn.: 1/2" O.D.
• Fan Diam.: 8"
• Inlet Conn.: 1/2" O.D.
• No. of Fans: 2
• Suction Conn.: 5/8" I.D.
• Volts: 230
• Width: 38-3/8"
• BtuH @ 10 TD: 3,500
• BtuH @ 12 TD: 4,200
• BtuH @ 15 TD: 5,250
