Heatcraft TAK30AG Reach-In Unit Cooler 30 MBH 115/1 3 Fan

Product Description

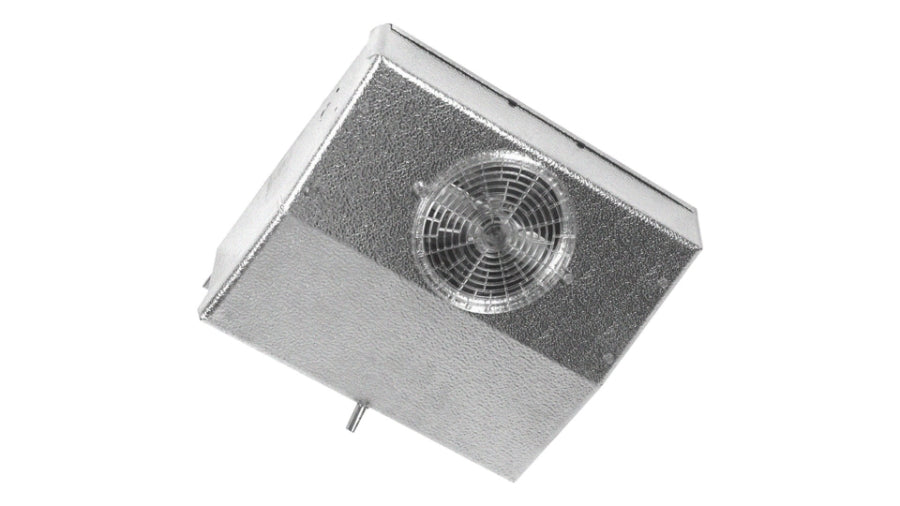

The HEATCRAFT TAK30AG is a reach-in unit cooler with a low-profile air defrost function. Designed for top mounting in refrigerators, this thin unit maximizes usable top shelf space. Features include coated coils, a grained aluminum cabinet, and a 45° drain fitting. It is UL listed, CSA certified, and certified to NSF standards.

• Thin unit design suitable for top mount refrigerator
• Maximizes usable top shelf area
• Certified to UL, CSA, and NSF standards

Product Highlights

The HEATCRAFT TAK30AG reach-in unit cooler is ideal for display-type refrigerators, back bars, and under-counter cabinets where space is limited.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: TAK30AG
• Country of Origin: UNITED STATES

Technical Specifications

• Type: Reach-In Unit Coolers
• Voltage: 115V
• Capacity: 3,000 BTUH
• Function: Low Profile Air Defrost
• Frequency: 60Hz
• Manufacturer: Heatcraft
• Model #: TAK30AG
• URI Part Number: TAK30AG
• Vendor Part Number: TAK30AG
• Length (In.): 40.00
• Width (In.): 16.50
• Height (In.): 4.50
• Application: Medium Temp
• CFM: 320
• Coil Finish: Coated
• Connection Size Inlet (In.): 3/8
• Connection Suction (In.): 1/2
• Connection Type: IDS Suction x ODS Inlet
• Hertz: 60
• Motor FLA: 2.4
• Number of Motors: 3
• Phase: 1
