Heatcraft TA30AG Reach-In Unit Cooler 30 MBH 3 Fan Shaded Pole 115/1 Thin Profile Air Defrost

Product Description

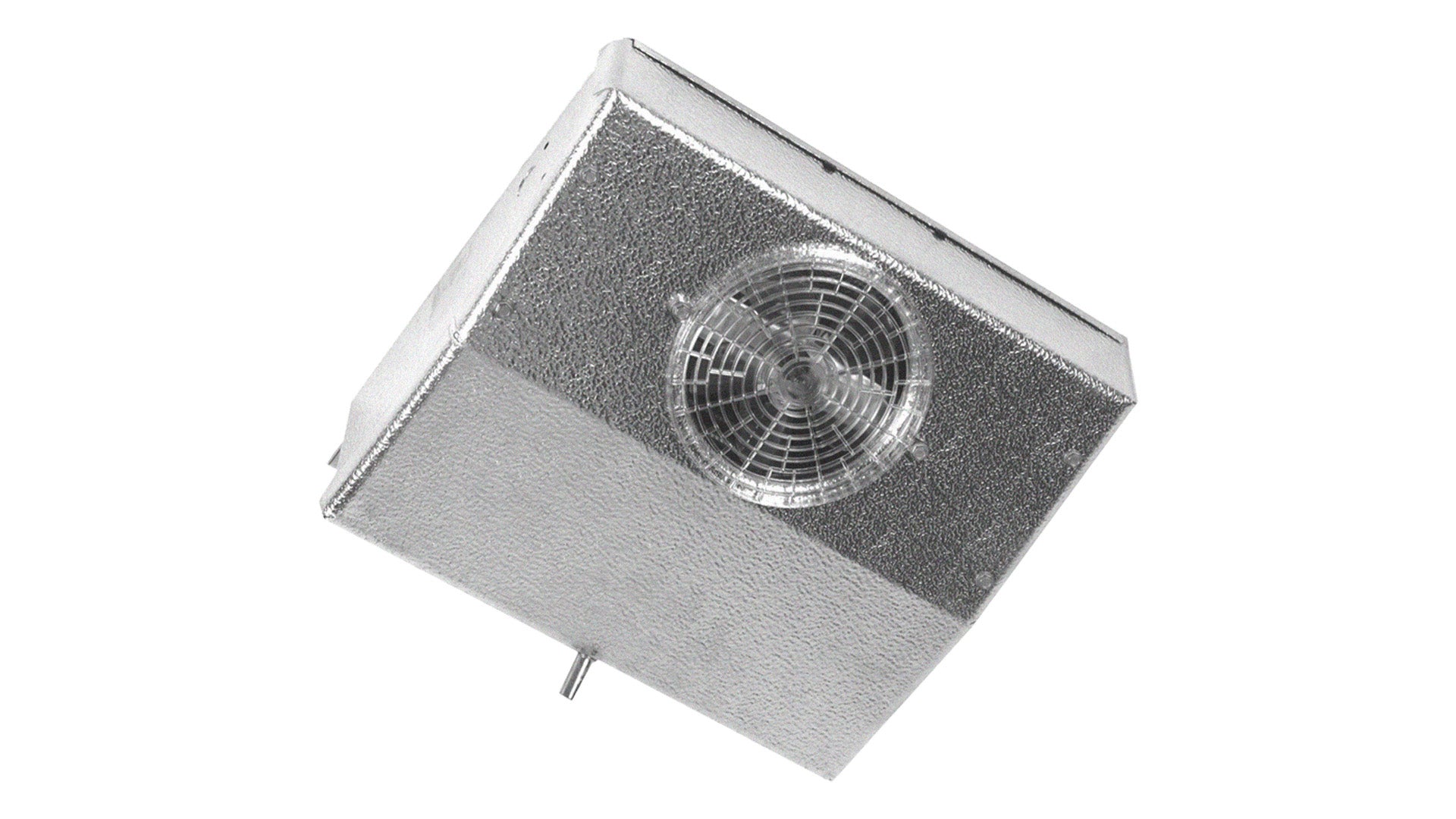

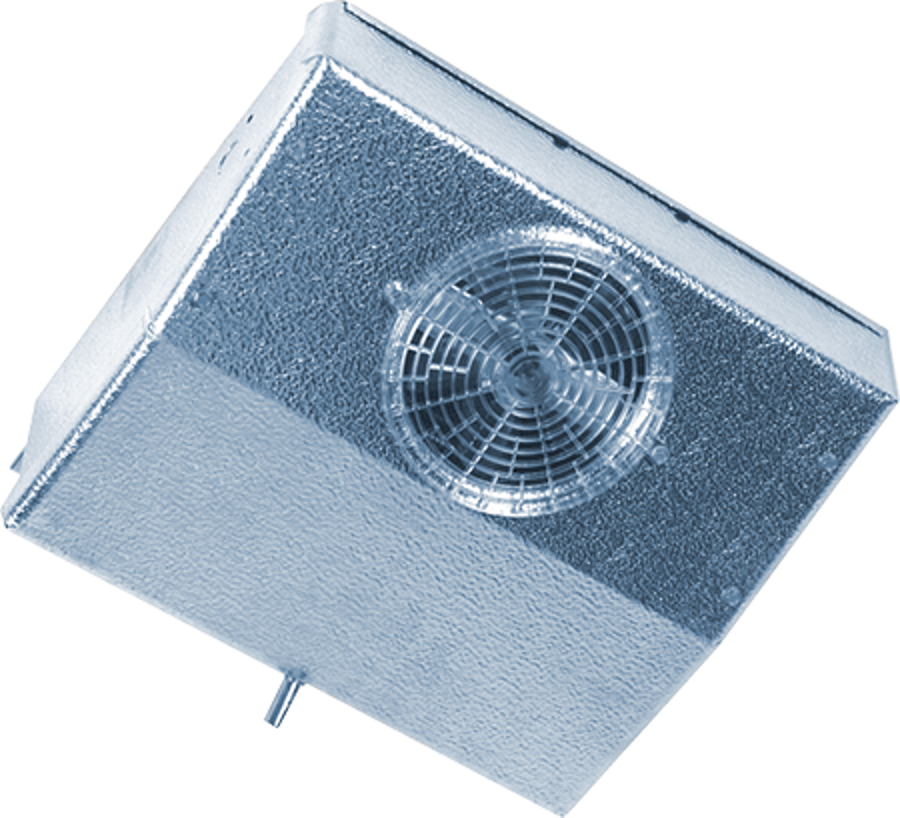

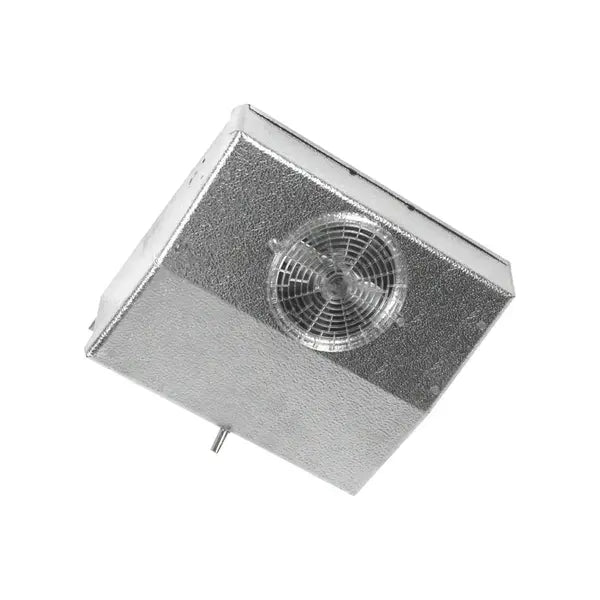

The HEATCRAFT TA30AG is a reach-in unit cooler with a thin profile air defrost design. It mounts at the top of a refrigerator, maximizing the top shelf area. Ideal for display-type refrigerators, back bars, and under-counter cabinets where space is limited. Operates at 115/1/60 voltage and features a shaded pole motor.

• Thin unit design suitable for refrigerators, back bars and under counter cabinets.
• Features an attractive grained aluminum cabinet.
• Flexible drain fitting mounted at a 45° angle.

Product Highlights

This unit cooler is designed for efficient cooling in tight spaces, offering a sleek design and flexible installation.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: TA30AG
• Country of Origin: UNITED STATES

Technical Specifications

• MPN: TA30AG
• Brand: Heatcraft
• Product Brand: Bohn
• Product Type: Reach-In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Thin Profile Air Defrost
• Product Classification: current
• Voltage: 115
• Defrost Type: Air Defrost
• Coil Option: Standard
• Refrigerant: HFC
• Rating Point F: 10 00b0F TD
• Capacity BTUH: 3,000
• CFM: 360
• Depth In: 14.5
• Length (in.): 40
• Motor Type: Shaded Pole Motor
• No Of Fans: 3
• Motor Voltage: 115/1/60
• Total FLA: 2.4
• Coil Inlet OD: 0.375
• Suction Od: 0.5
• Drain OD: 0.5
• Vendor Name: Heatcraft
• URI Part Number: TA30AG
• Vendor Part Number: TA30AG
• Width (In.): 16.50
• Application: Medium Temp
• Coil Finish: Uncoated
• Connection Size Inlet (In.): 3/8
• Connection Suction (In.): 1/2
• Connection Type: IDS Suction x ODS Inlet
• Hertz: 60
• Motor FLA: 2.4
• Number of Motors: 3
• Phase: 1
• Length (Inch): 40.000000
• Width (Inch): 16.500000
• Height (Inch): 4.500000
• Volts: 115
• BTU Rating: 3000 Btu/hr
• CFM Rating: 360 cfm
• Coil Type: Standard
• Connection Size: 3/8 in, 1/2 in
• Dimensions: 4-1/2 in H x 40 in W x 14-1/2 in D
• Finish: Textured
• Frequency Rating: 60 Hz
• Model: TA30
• Series: TA Series
• Voltage Rating: 115 V
• Height: 4-1/2"
• Depth: 14-1/2"
• Units of measure: EA
• Material: Aluminum
• Type Filter: Blower
• BtuH @ 10 00b0 TD: 3,000
• BtuH @ 12 00b0 TD: 3,600
• BtuH @ 15 00b0 TD: 4,500
• Drain Conn.: 1/2" O.D.
• Fan Diam.: 5-1/2"
• Inlet Conn.: 3/8" O.D.
• Suction Conn.: 1/2" I.D.
