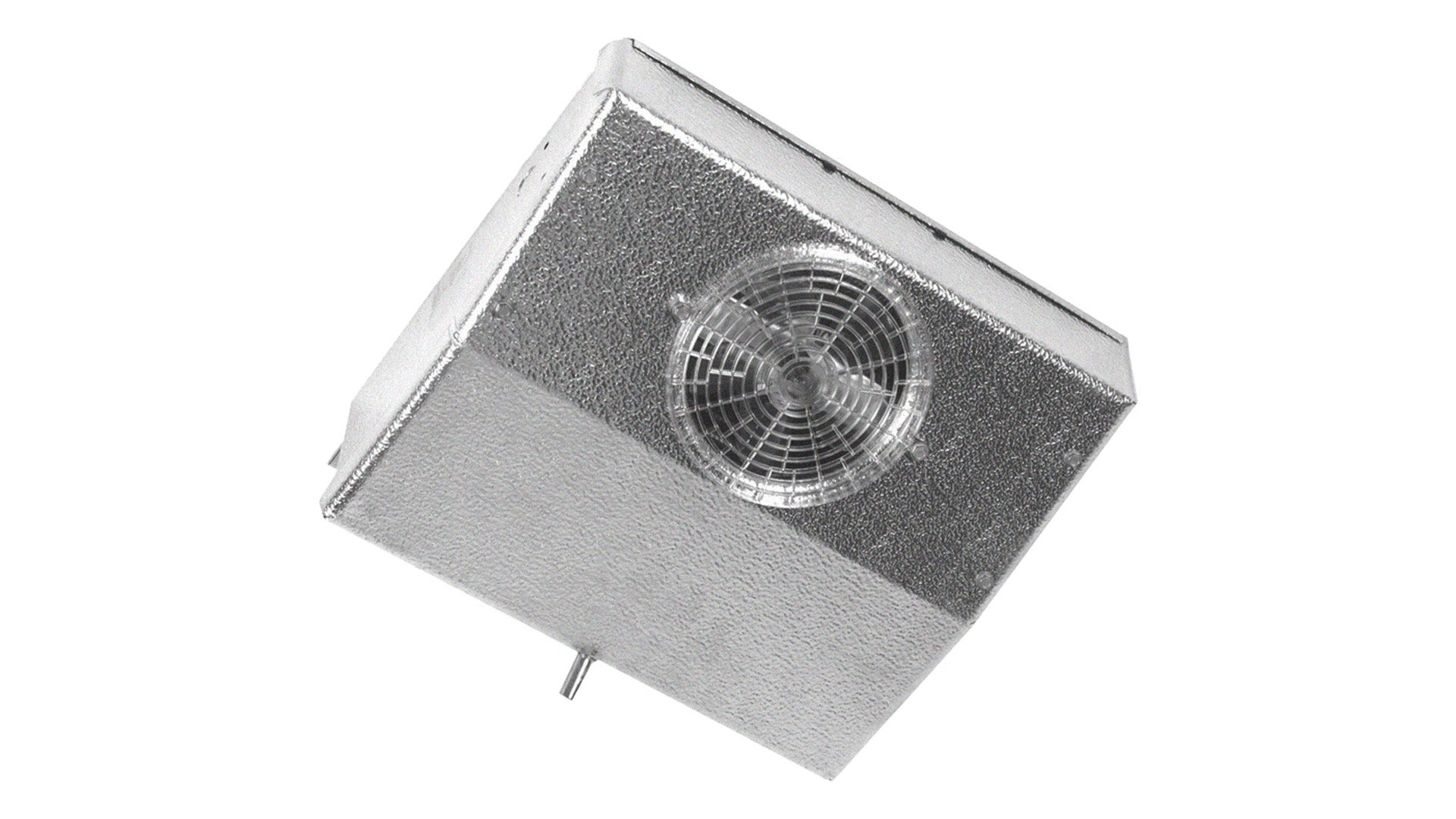

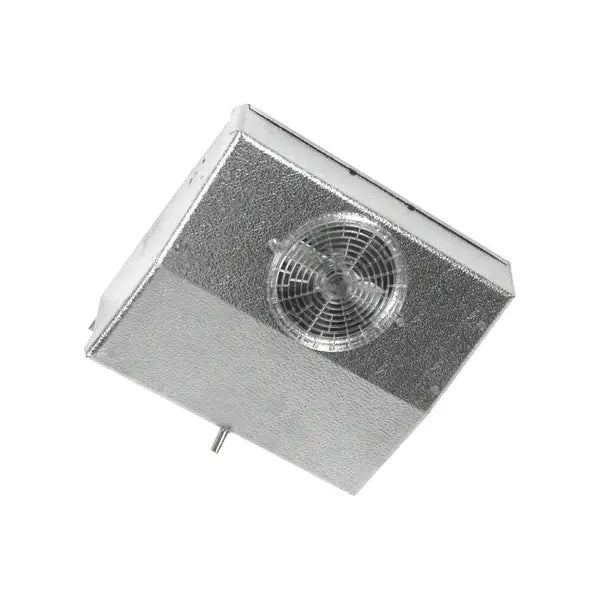

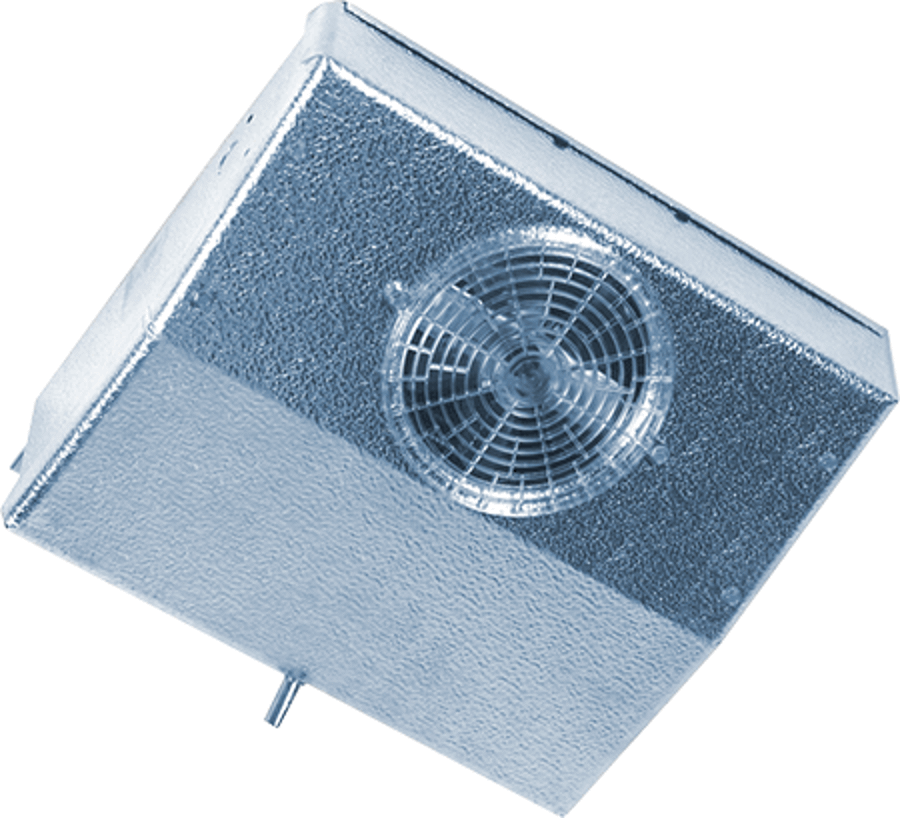

Heatcraft TA17AG Reach-In Unit Cooler 17 MBH 2 Fan Shaded Pole 115/1 Thin Profile Air Defrost

Product Description

The HEATCRAFT TA17AG is a reach-in unit cooler with a thin profile air defrost design. This unit cooler can be mounted at the top of a refrigerator, maximizing the usable top shelf area. Its low silhouette is ideal for display-type refrigerators and can also be used in back bars or under-counter cabinets where space is limited.

• Thin unit design
• Suitable for display refrigerators, back bars, and under counter cabinets
• Attractive low silhouette

Product Highlights

This unit cooler is designed for space-limited environments and provides efficient cooling with its air defrost system.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: TA17AG
• Country of Origin: UNITED STATES

Technical Specifications

• MPN: TA17AG
• Brand: Heatcraft
• UOM: EA
• Product Type: Reach-In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Thin Profile Air Defrost
• Product Classification: current
• Voltage: 115/1/60
• Defrost Type: Air Defrost
• Coil Option: Standard
• Refrigerant: HFC
• Capacity BTUH: 1,700
• CFM: 210
• Motor Type: Shaded Pole Motor
• No Of Fans: 2
• Motor Voltage: 115/1/60
• Total FLA: 1.6
• Coil Inlet OD: 0.375
• Suction Od: 0.375
• Drain OD: 0.5
• Application: Medium Temp
• Connection Type: IDS Suction x ODS Inlet
• Hertz: 60
• Motor FLA: 1.6
• Phase: 1
• Coil Finish: Uncoated
• Connection Size Inlet (In.): 3/8
• Connection Suction (In.): 3/8
• Volts: 115
• Depth In: 14.5
• Length (in.): 24
• Width (In.): 16.50
