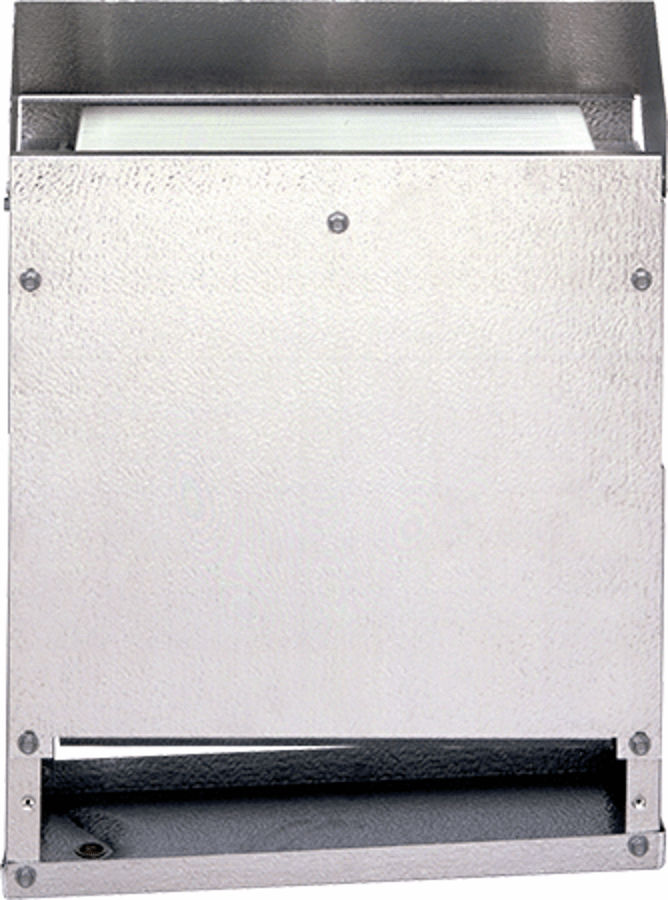

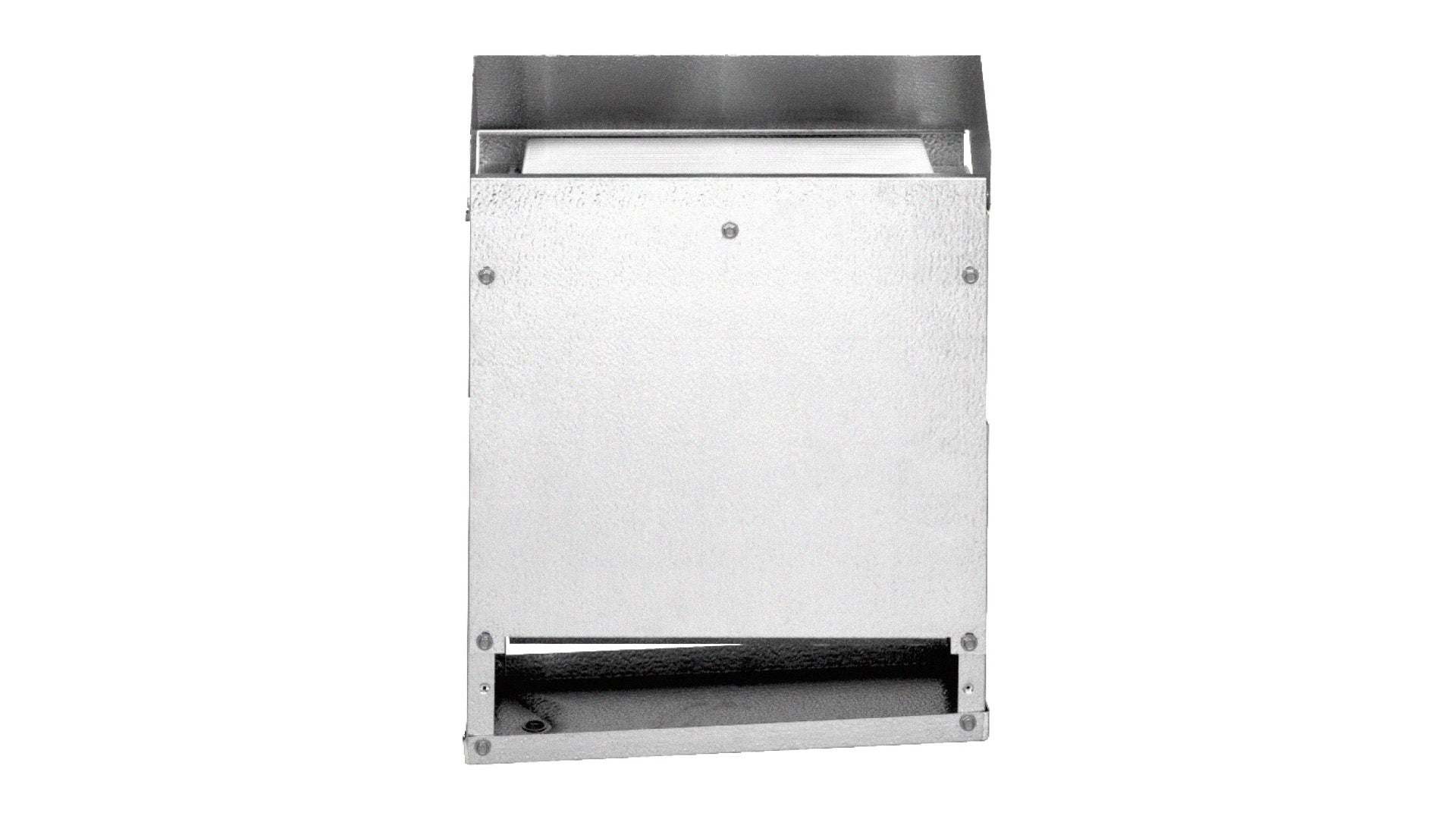

Heatcraft RAMK17AG Reach-In Unit Cooler 17 MBH 2 Fan

Product Description

The Heatcraft RAMK17AG is a reverse mullion reach-in unit cooler ideal for mounting behind a mullion or on a wall. It features an up-flow air pattern that draws air in at the bottom and discharges it at the top, providing uniform temperature. It also includes an adjustable and detachable air deflector/splash protector for excellent air distribution.

• Ideal for mounting behind a mullion or on a wall
• Up-flow air pattern
• Provides uniform temperature
• Adjustable and detachable air deflector/splash protector
• Excellent air distribution

Product Highlights

Reverse mullion reach-in unit cooler with up-flow air pattern and adjustable air deflector for uniform temperature distribution.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: RAMK17AG
• Country of Origin: UNITED STATES

Technical Specifications

• Product Brand: Bohn
• Product Type: Reach-In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Reverse Mullion
• Product Classification: current
• Voltage: 115
• Defrost Type: Air Defrost
• Coil Option: Coated
• Refrigerant: HFC
• Rating Point F: 10 TD
• Capacity BTUH: 1,700
• CFM: 170
• Motor Type: Shaded Pole Motor
• No Of Fans: 2
• Motor Voltage: 115/1/60
• Total FLA: 1.6
• Coil Inlet OD: 0.375
• Suction Od: 0.375
• Drain OD: 0.625
• URI Part Number: RAMK17AG
• Vendor Part Number: RAMK17AG
• Application: Medium Temp
• Coil Finish: Coated
• Connection Size Inlet (In.): 3/8
• Connection Suction (In.): 3/8
• Connection Type: IDS Suction x ODS Inlet
• Hertz: 60
• Motor FLA: 1.6
• Number of Motors: 2
• Phase: 1
• Brand: BOHN
• MPN: RAMK17AG
• BtuH @ 10 TD: 1,700
• BtuH @ 12 TD: 2,040
• BtuH @ 15 TD: 2,550
• Inlet Conn.: 3/8" O.D.
• Suction Conn.: 3/8" O.D.
• Type: Upflow
• Volts: 115
