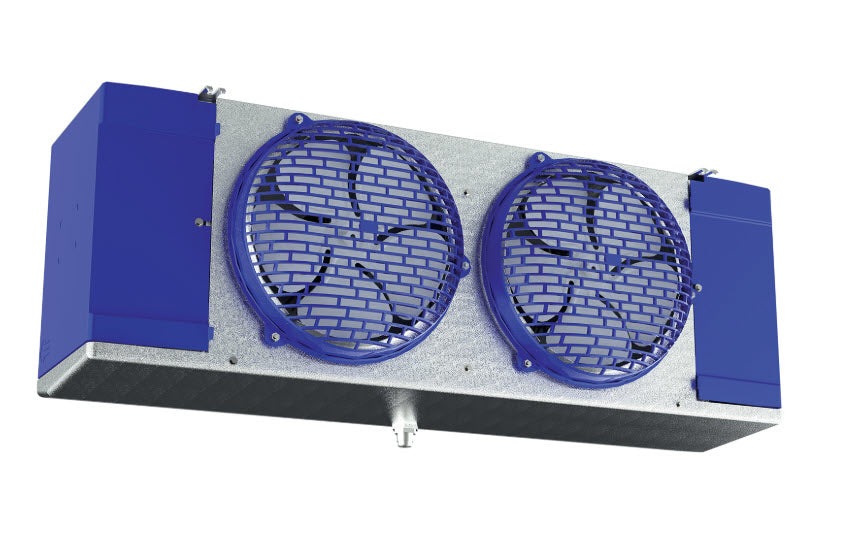

Heatcraft HEL0250AY6AMAB0000 Low Profile Walk In Cooler

Product Description

The HeatCraft Chandler HEL0250AY6AMAB0000 is a low profile walk-in cooler designed for cooler applications. It features a 2-Speed EC motor and air defrost. Operating at 115/1/60 voltage, this unit cooler has a capacity of 24,800 BTUH and an airflow of 2,440 CFM.

• Hinged and removable access panels
• Hinged drain pan
• Easy service motor mount

Product Highlights

The HEL0250AY6AMAB0000 unit cooler is UL Listed and NSF certified, suitable for walk-in cooler applications.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0250AY6AMAB0000

Technical Specifications

• Application: cooler
• CFM: 2,440
• Capacity BTUH: 24,800
• Coil Inlet OD: 1/2
• Defrost Type: air defrost
• Depth In: 13.25
• Drain MPT: 3/4
• Dual Rated: False
• External Equalizer OD: 1/4
• FPI: 6
• Fins Per Inch: 6
• Height (In.): 16.4375
• Length (in.): 77.5
• Motor Amps: 3.6
• Motor HP: 1/20
• Motor Type: 2-Speed EC
• Motor Voltage: 115/1/60
• Motor Watts: 220
• No Of Fans: 4
• Number Of Circuits: 6
• Number Of Coil Circuits: 6
• Product Brand: Chandler
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Type: Walk In Unit Coolers
• Rating Point F: 10 F TD 25 F SST
• Refrigerant: R-454A
• Suction Od: 7/8
• Tube OD: 3/16
• Unit MCA: 3.8
• Unit MOPD: 20
• Voltage: 115/1/60
