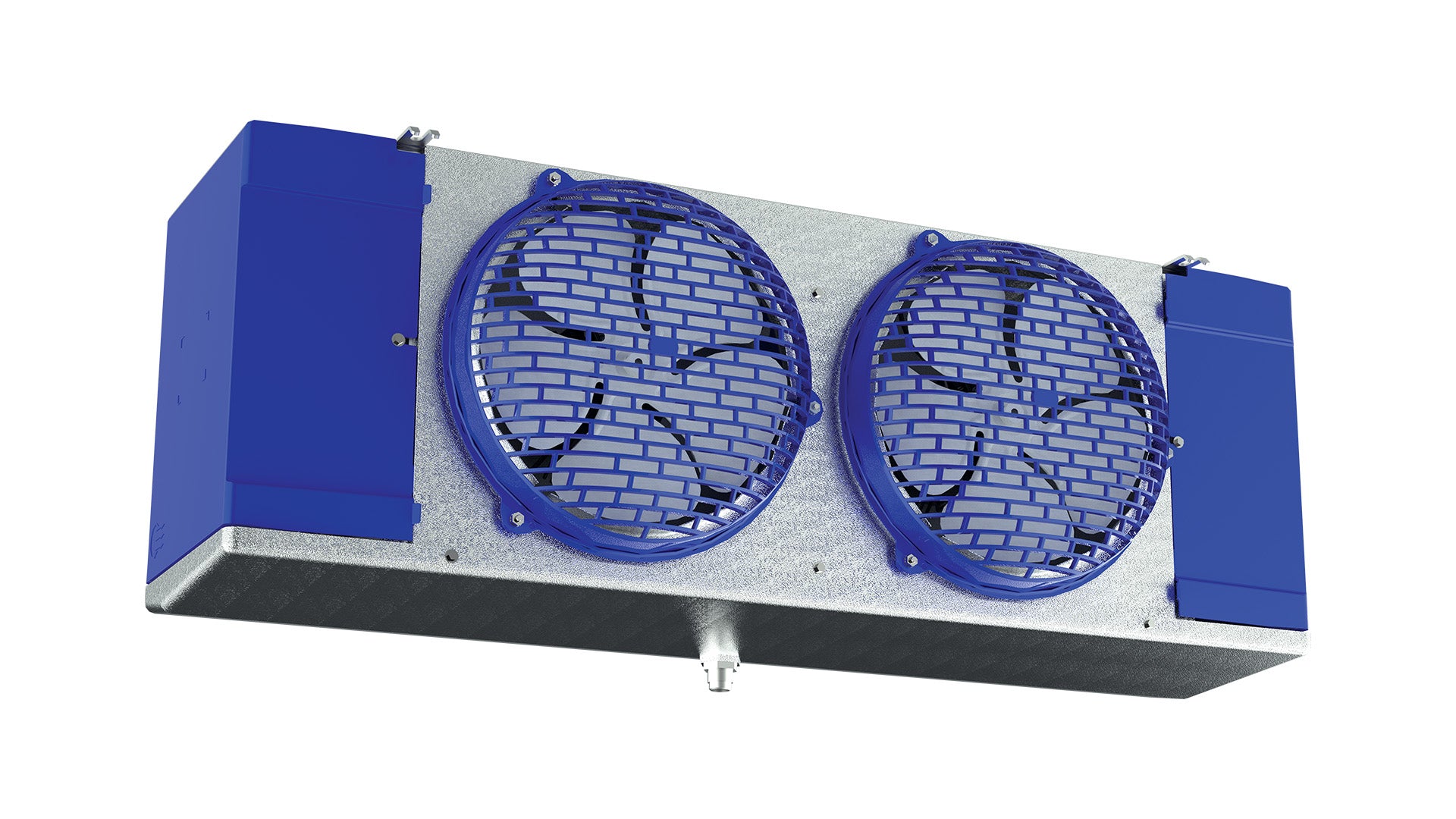

Heatcraft HEL0155BS6EEAB0200 unit cooler 16,000 BTU

Product Description

The HEATCRAFT HEL0155BS6EEAB0200 low profile unit coolers have been engineered for efficiency and improved air circulation. Suitable for freezer applications, it features an electric defrost and operates at 208-230/1/60 voltage. The unit has a capacity of 16,000 BTUH and a CFM of 1,922.

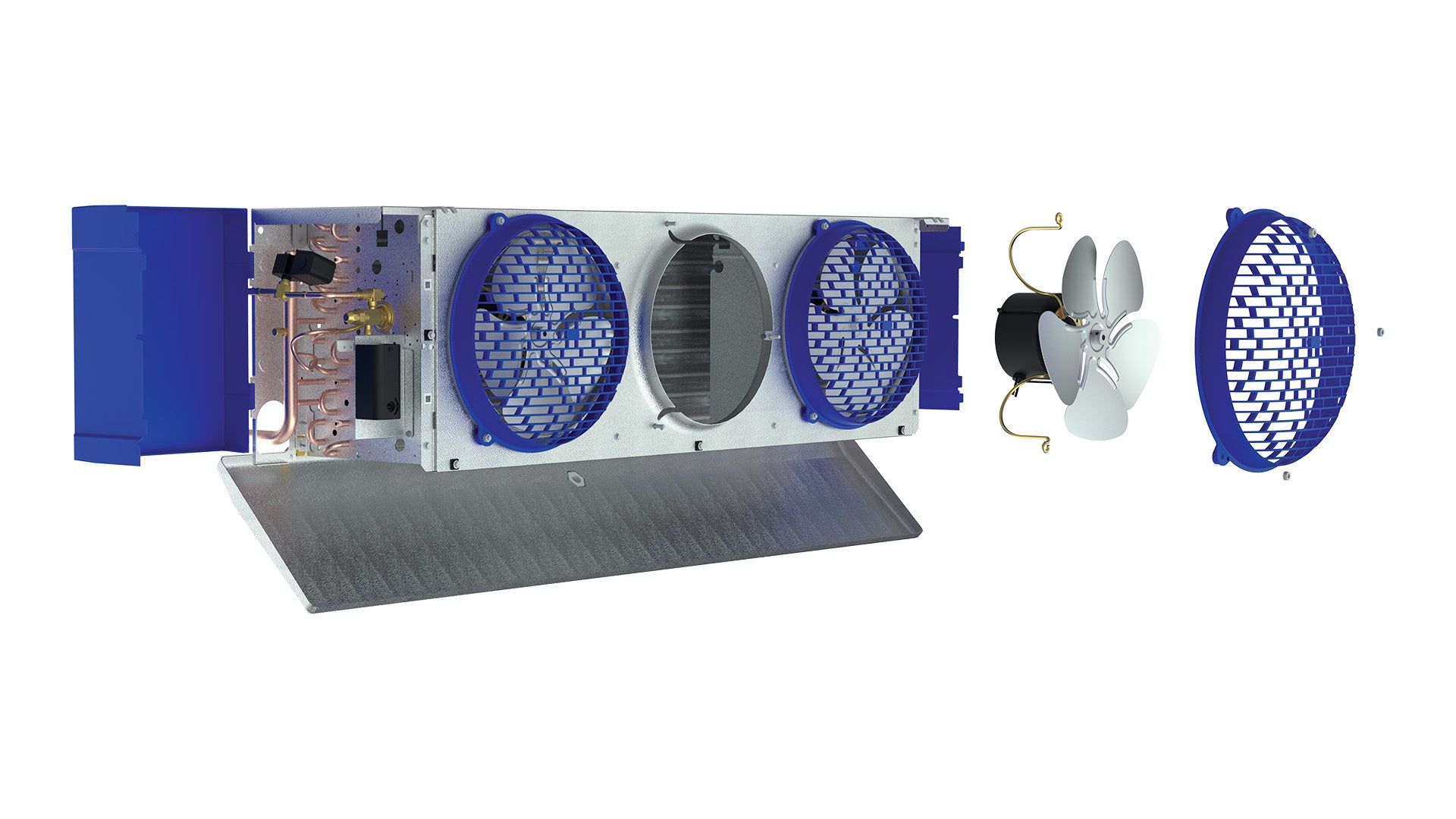

• Hinged and removable access panels
• Hinged drain pan
• Easy service motor mount

Product Highlights

Low profile unit cooler with hinged access panels and drain pan for easy maintenance.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0155BS6EEAB0200

Technical Specifications

• Product Brand: Heatcraft
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Application: Freezer
• Input Voltage: 208-230/1/60
• Defrost Type: Electric Defrost
• FPI: 6
• Dual Rated: true
• Refrigerant: R-448A
• Capacity BTUH: 16,000
• CFM: 1,922
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 61.5
• Est Net Weight (lbs): 78
• Motor Type: 1-Speed EC
• No Of Fans: 3
• Motor HP: 1/20
• Unit MCA: 1.6
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 177
• Motor Amps: 1.5
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 13.7
• Defrost Heater Watts: 3150
• Coil Inlet OD: 1/2
• Suction Od: 1-1/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
