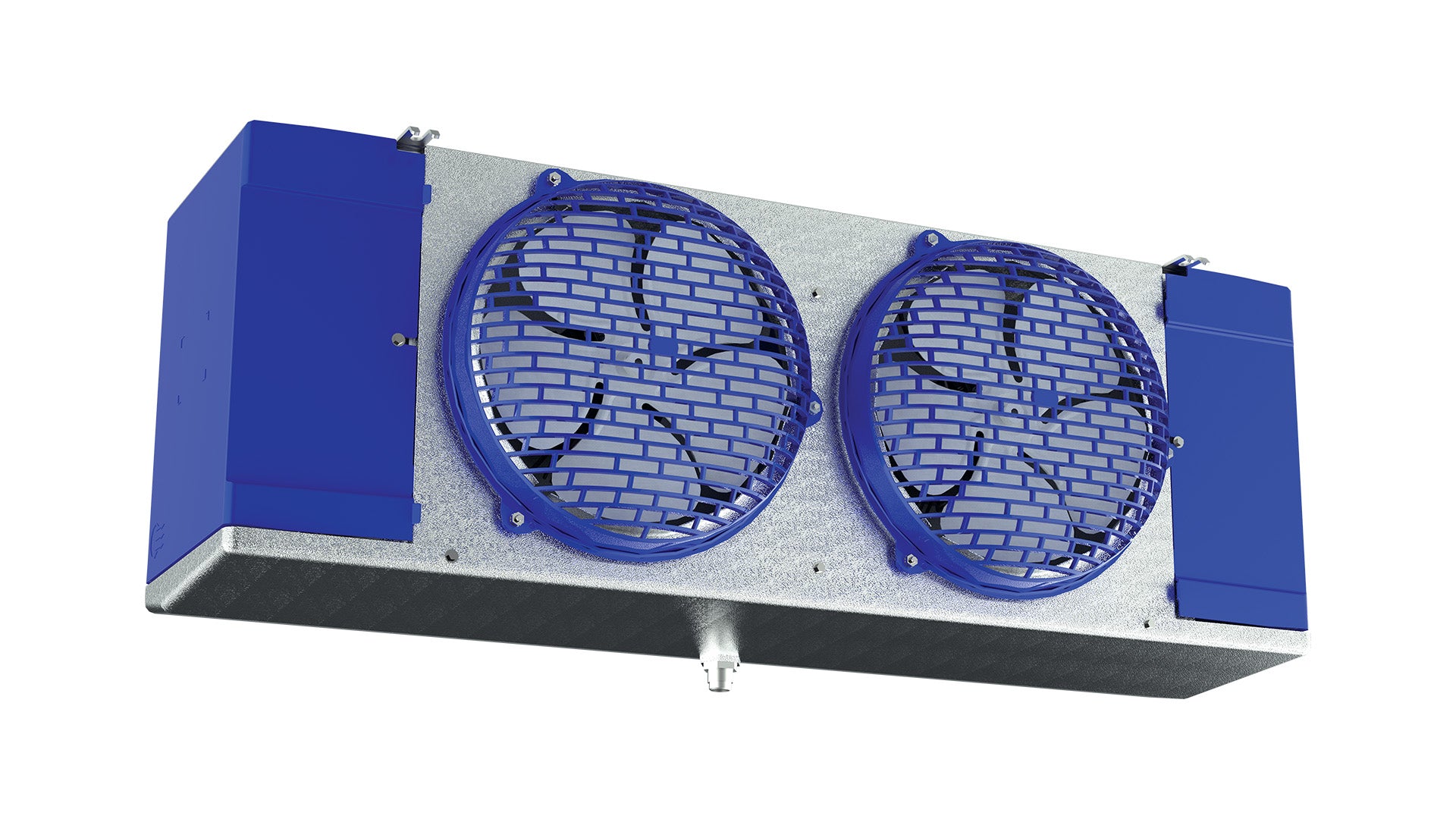

Heatcraft HEL0130BY6EEAB0000 Chandler Low Profile Unit Cooler 13,100 Capacity BTUH

Product Description

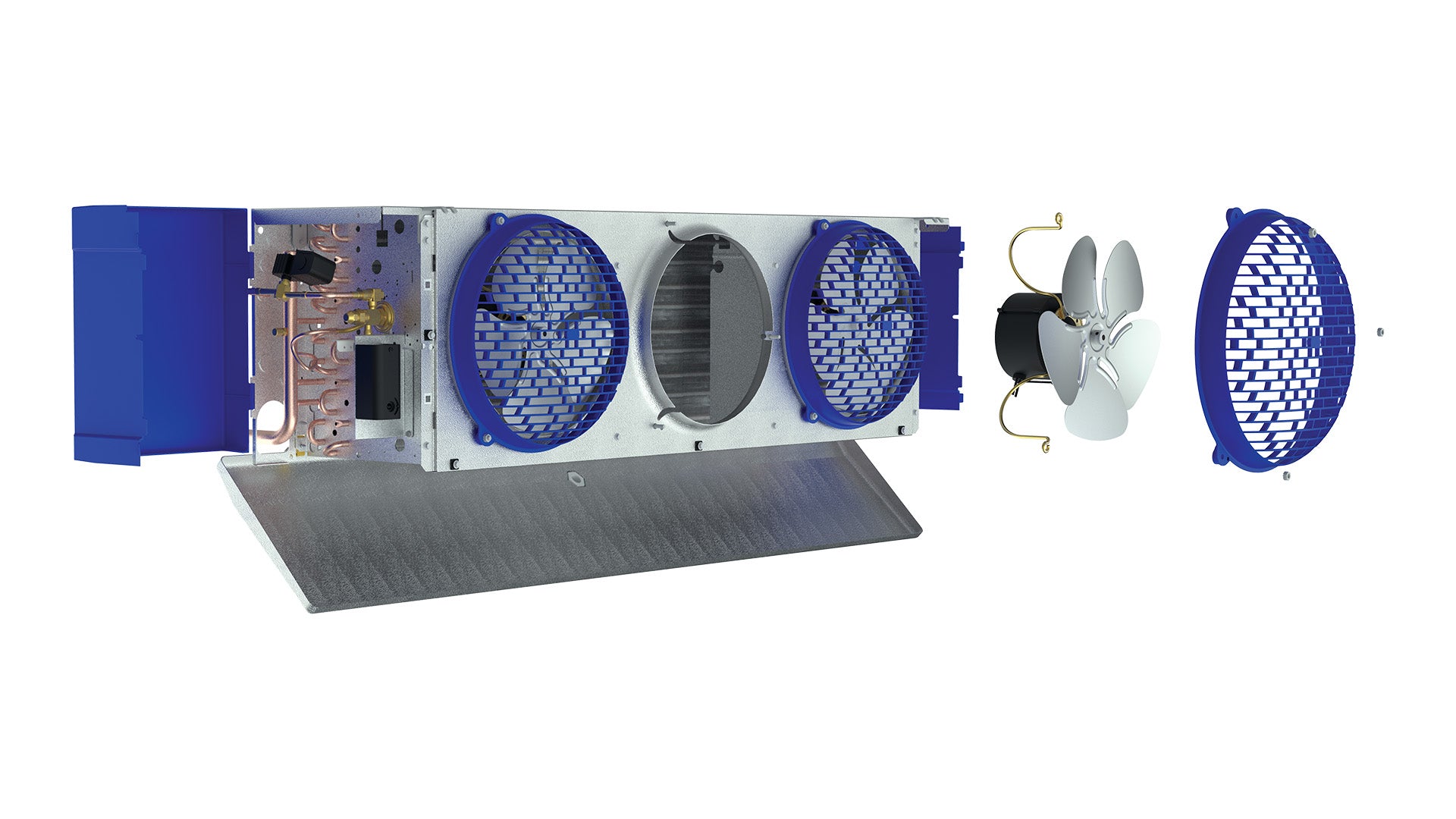

The HEATCRAFT HEL0130BY6EEAB0000 is a Chandler low profile unit cooler engineered for efficiency and improved air circulation. It is designed for freezer applications. Features hinged and removable access panels, a hinged drain pan and an easy service motor mount reduce maintenance time and cost.

• Hinged and removable access panels
• Hinged drain pan
• Easy service motor mount

Product Highlights

This low profile unit cooler has a 13,100 BTU capacity, 2,056 CFM, and operates at 208-230/1/60 voltage. It features electric defrost and a 1-Speed EC motor.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0130BY6EEAB0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Walk In Unit Coolers
• Product Category: Unit Coolers
• Product Style: Low Profile
• Product Classification: current
• Application: freezer
• Voltage: 208-230/1/60
• Defrost Type: electric defrost
• FPI: 6
• Dual Rated: True
• No Of Fans: 3
• Refrigerant: R-454A
• Capacity BTUH: 13,100
• CFM: 2,056
• Height (In.): 16.4375
• Depth In: 13.25
• Length (in.): 61.5
• Fins Per Inch: 6
• Number Of Coil Circuits: 6
• Motor Type: 1-Speed EC
• Motor HP: 1/20
• Unit MCA: 1.6
• Unit MOPD: 15
• Motor Voltage: 208-230/1/60
• Motor Watts: 177
• Motor Amps: 1.5
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Amps: 13.7
• Defrost Heater Watts: 3150
• Coil Inlet OD: 1/2
• Suction Od: 7/8
• External Equalizer OD: 1/4
• Drain MPT: 3/4
• Tube OD: 3/16
• Number Of Circuits: 6
