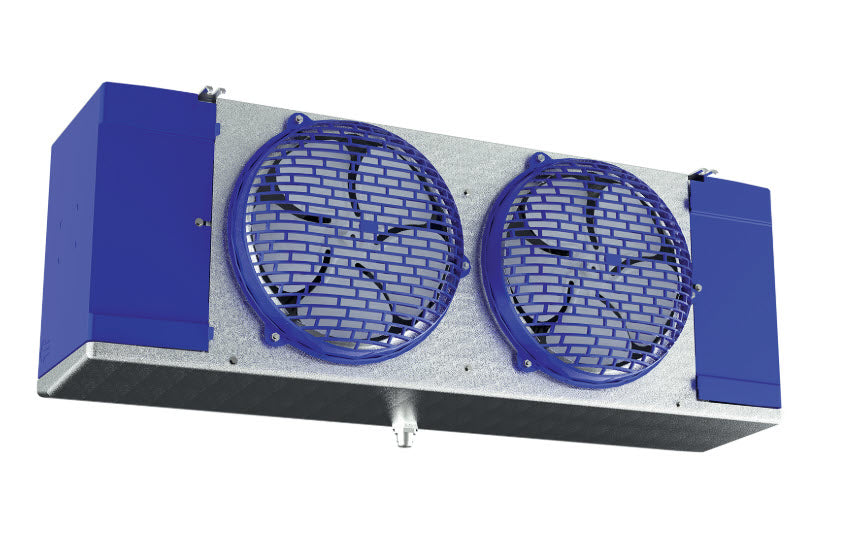

Heatcraft HEL0125AY6AMAB0000 Low Profile Walk In Cooler

Product Description

The HeatCraft HEL0125AY6AMAB0000 low profile walk in cooler is designed for cooler applications. This unit cooler features a 2-Speed EC motor, air defrost, and a capacity of 15,700 BTUH. It operates at 115/1/60 voltage and has a CFM of 1,220.

• Features hinged and removable access panels
• Equipped with a hinged drain pan
• Includes an easy service motor mount

Product Highlights

The HeatCraft Low Profile Walk In Cooler is UL Listed EPH, NSF, and UL Listed for US & Canada, ensuring quality and safety.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0125AY6AMAB0000

Technical Specifications

• Application: cooler
• CFM: 1,220
• Capacity BTUH: 15,700
• Coil Inlet OD: 1/2
• Defrost Type: air defrost
• Depth In: 13.25
• Drain MPT: 3/4
• Dual Rated: False
• Est Net Weight (lbs): 56
• External Equalizer OD: 1/4
• FPI: 6
• Fins Per Inch: 6
• Height (In.): 16.4375
• Length (in.): 45.5
• Motor Amps: 1.8
• Motor HP: 1/20
• Motor Type: 2-Speed EC
• Motor Voltage: 115/1/60
• Motor Watts: 110
• No Of Fans: 2
• Number Of Circuits: 4
• Number Of Coil Circuits: 4
• Product Brand: Chandler
• Product Category: Unit Coolers
• Product Classification: current
• Product Style: Low Profile
• Product Type: Walk In Unit Coolers
• Rating Point F: 10 °F TD 25 °F SST
• Refrigerant: R-454A
• Suction Od: 7/8
• Tube OD: 3/16
• Unit MCA: 2.0
• Unit MOPD: 20
• Voltage: 115/1/60
