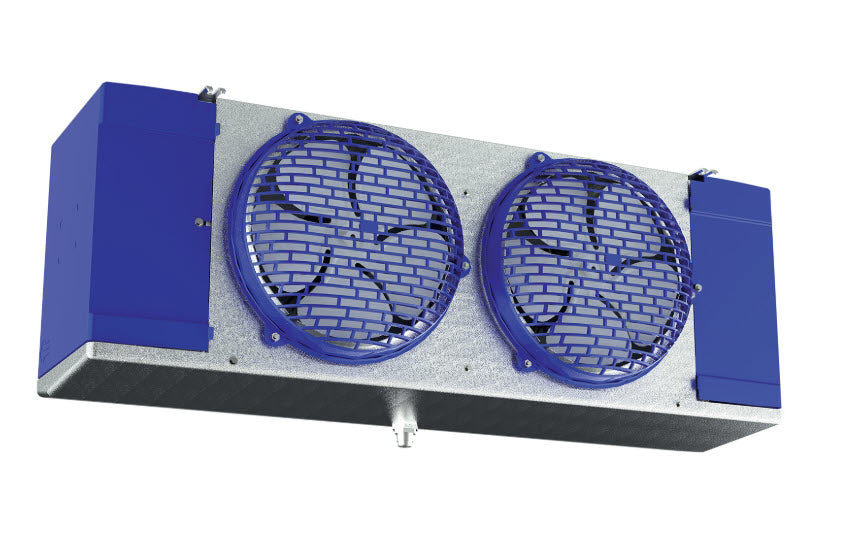

Heatcraft HEL0115AS6AMAB0200 Low Profile Walk In Cooler

Product Description

The HeatCraft HEL0115AS6AMAB0200 low profile walk in cooler is designed for cooler applications. Operating at 115/1/60 voltage, this unit cooler features a 2-Speed EC motor. With a capacity of 14,500 BTUH and an air defrost system, it ensures efficient cooling. The unit moves 1,220 CFM of air.

• Features hinged and removable access panels
• Equipped with a hinged drain pan
• Includes an easy service motor mount

Product Highlights

Efficient walk-in cooler with user-friendly features for easy maintenance and optimal performance.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0115AS6AMAB0200

Technical Specifications

• Application: Cooler
• CFM: 1,220
• Capacity BTUH: 14,500
• Coil Inlet OD: 1/2
• Defrost Type: Air Defrost
• Depth In: 13.25
• Drain MPT: ¾
• Dual Rated: false
• Est Net Weight (lbs): 56
• External Equalizer OD: 1/4
• FPI: 6
• Height (In.): 16.4375
• Length (in.): 45.5
• Motor Amps: 1.8
• Motor HP: 1/20
• Motor Type: 2-Speed EC
• Motor Voltage: 115/1/60
• Motor Watts: 110
• No Of Fans: 2
• Product Brand: Chandler
• Product Category: Unit Coolers
• Product Classification: current
• Product Style: Low Profile
• Product Type: Walk In Unit Coolers
• Rating Point F: 10°F TD 25°F SST
• Refrigerant: R-448A
• Suction Od: 7/8
• Unit MCA: 2
• Unit MOPD: 20
• Voltage: 115/1/60
