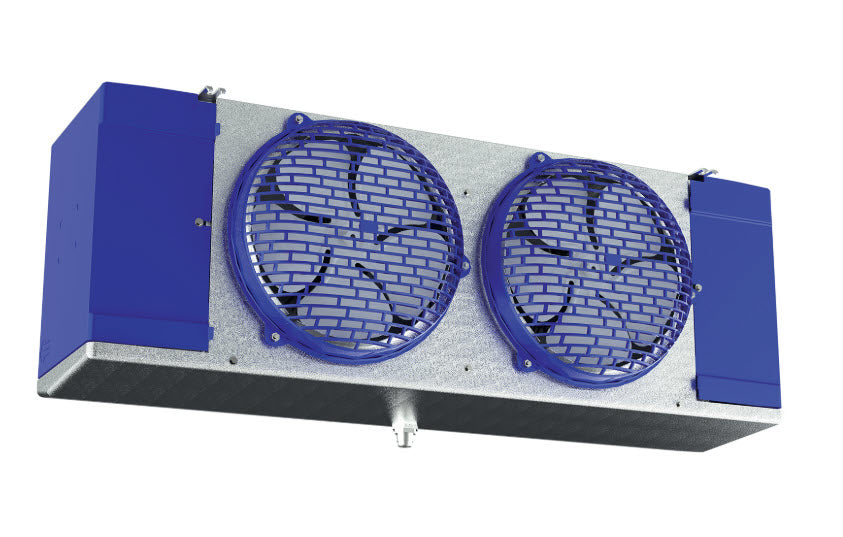

Heatcraft HEL0095AY6AMAB0000 Chandler Low Profile Walk In Cooler

Product Description

The Heatcraft HEL0095AY6AMAB0000 Chandler low profile walk in cooler is designed for cooler applications. With a capacity of 10,100 BTUH and an air defrost type, this unit cooler ensures efficient cooling. It operates on 115/1/60 voltage and features a 2-speed EC motor.

• Features hinged and removable access panels for easy maintenance.
• Equipped with a hinged drain pan for convenience.
• Includes an easy service motor mount.

Product Highlights

This low profile walk-in cooler is UL Listed EPH, NSF, and UL Listed for both US & Canada, ensuring quality and safety.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0095AY6AMAB0000

Technical Specifications

• Application: cooler
• CFM: 1,305
• Capacity BTUH: 10,100
• Coil Inlet OD: 1/2
• Defrost Type: air defrost
• Depth In: 13.25
• Drain MPT: 3/4
• Dual Rated: False
• Est Net Weight (lbs): 51
• External Equalizer OD: 1/4
• FPI: 6
• Fins Per Inch: 6
• Height (In.): 16.4375
• Length (in.): 45.5
• Motor Amps: 1.8
• Motor HP: 1/20
• Motor Type: 2-Speed EC
• Motor Voltage: 115/1/60
• Motor Watts: 110
• No Of Fans: 2
• Number Of Circuits: 2
• Number Of Coil Circuits: 2
• Product Brand: Chandler
• Product Category: Unit Coolers
• Product Classification: current
• Product Style: Low Profile
• Product Type: Walk In Unit Coolers
• Rating Point F: 10°F TD 25°F SST
• Refrigerant: R-454A
• Suction Od: 5/8
• Tube OD: 3/16
• Unit MCA: 2.0
• Unit MOPD: 20
• Voltage: 115/1/60
