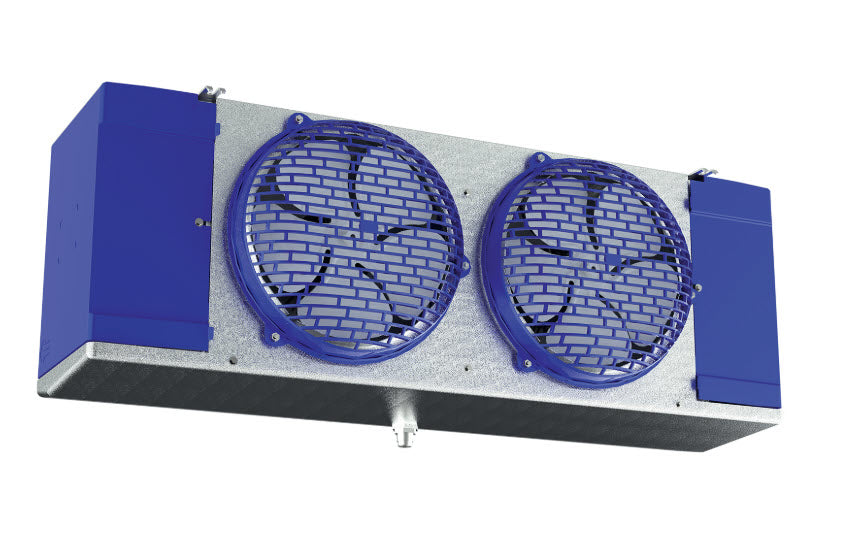

Heatcraft HEL0065BY6EEAB0000 Low Profile Walk In Cooler

Product Description

The HeatCraft HEL0065BY6EEAB0000 low profile walk in cooler is designed for freezer applications. With a capacity of 7,000 BTUH and an airflow of 1,371 CFM, it features electric defrost and a 1-Speed EC motor. The unit operates on 208-230/1/60 voltage and uses R-454A refrigerant.

• Hinged and removable access panels
• Hinged drain pan
• Easy service motor mount

Product Highlights

UL Listed EPH, NSF, and UL Listed for US & Canada, this cooler ensures quality and compliance.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HEL0065BY6EEAB0000

Technical Specifications

• Application: freezer
• CFM: 1,371
• Capacity BTUH: 7,000
• Coil Inlet OD: 1/2
• Defrost Heater Amps: 9.1
• Defrost Heater Voltage: 208-230/1/60
• Defrost Heater Watts: 2100
• Defrost Type: electric defrost
• Depth In: 13.25
• Drain MPT: 3/4
• Dual Rated: True
• External Equalizer OD: 1/4
• FPI: 6
• Fins Per Inch: 6
• Height (In.): 16.4375
• Length (in.): 45.5
• Motor Amps: 1.0
• Motor HP: 1/20
• Motor Type: 1-Speed EC
• Motor Voltage: 208-230/1/60
• Motor Watts: 118
• No Of Fans: 2
• Number Of Circuits: 3
• Number Of Coil Circuits: 3
• Product Brand: Chandler
• Product Category: Unit Coolers
• Product Classification: current
• Product Style: Low Profile
• Product Type: Walk In Unit Coolers
• Rating Point F: 10 00b0F TD -20 00b0F SST
• Refrigerant: R-454A
• Suction Od: 5/8
• Tube OD: 3/16
• Unit MCA: 1.1
• Unit MOPD: 15
• Voltage: 208-230/1/60
