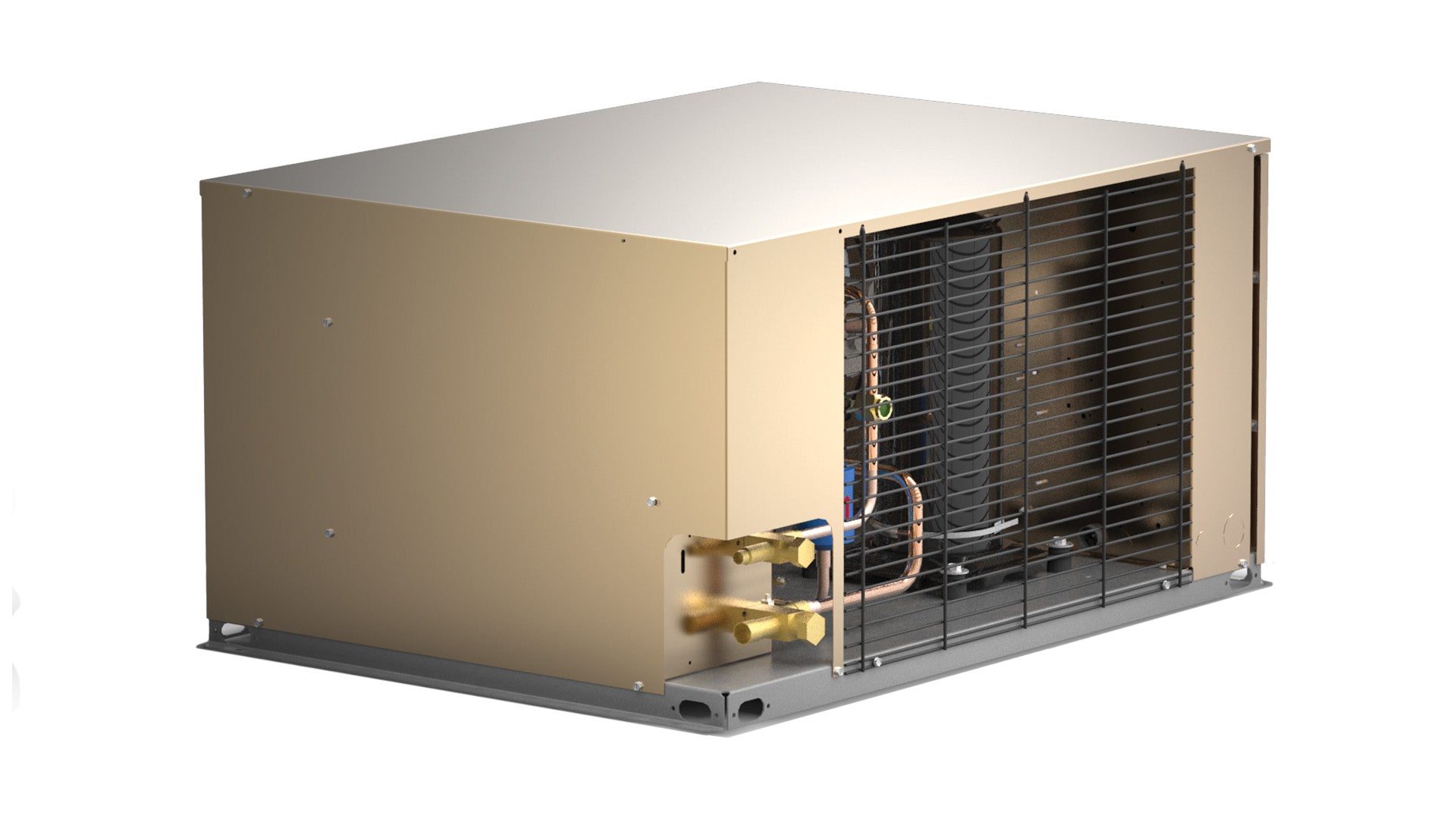

Heatcraft HCH0045MBACZA0000 Chandler Model Air-Cooled Condensing Unit 208-230/1/60

Product Description

The HEATCRAFT HCH0045MBACZA0000 is an air-cooled condensing unit with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll compressors, designed for flexibility and serviceability. These units are for medium or low temperature applications with pre-configured option packages or custom configurations. They are energy efficient and approved for use with multiple refrigerants.

• Designed for flexibility and serviceability
• Piping connections are externally mounted

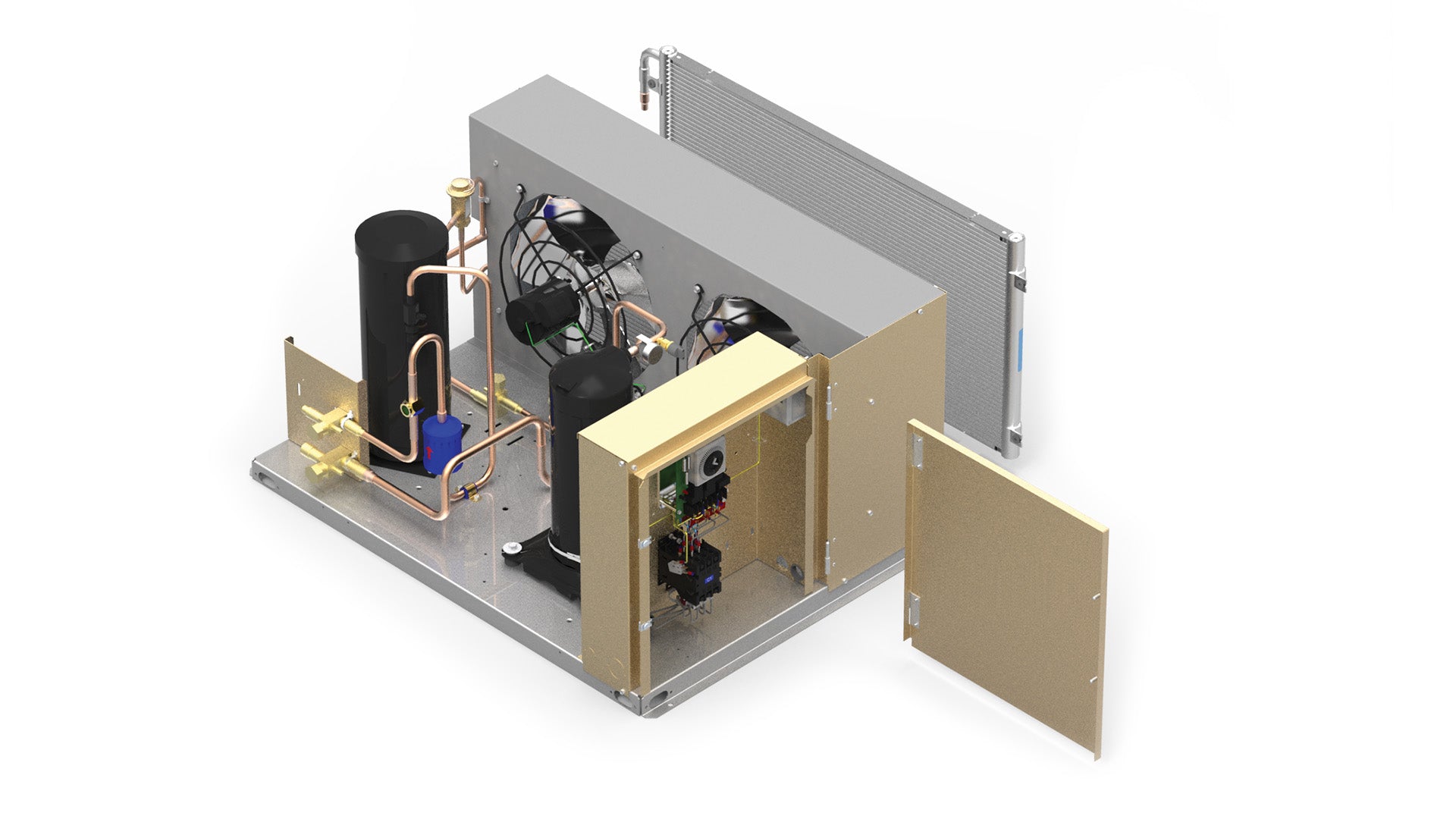

• Cabinets are removable for easy access to service components

Product Highlights

Air-cooled condensing units with scroll compressors for medium temperature applications. Features include externally mounted piping connections and removable cabinets for easy access.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0045MBACZA0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor P N: ZS29KAE-PFV
• Voltage: 208-230/1/60
• Cabinet: C3
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95 0 F Ambient 25 0 F SST
• Ambient Temperature F: 95 0 F
• Suction Temperature F: 25 0 F
• Capacity BTUH: 39,500
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 29.25
• Depth In: 30.25
• Width (In.): 43.875
• Approx Net Weight (lbs): 327
• Receiver 90 Pc Full Standard Lbs: 20
• Receiver 90 Pc Full Optional Lbs: 40
• Sound Data Dba: 63
• Compressor Model Number: ZS29KAE-PFV
• Compressor RLA: 23.3974359
• Compressor LRA: 137
• Fan Motor Qty: 1
• Fan Motor Fla: 3.5
• Defrost Amps: 30
• MCA: 32.7
• MOPD: 50
• Evap Fan Amps: 10
• Defrost Heater Amps: 30
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 42.7
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 60
• Connection Type: Parallel Piped
• Liquid Od: 0.5
• Suction Od: 1.125
