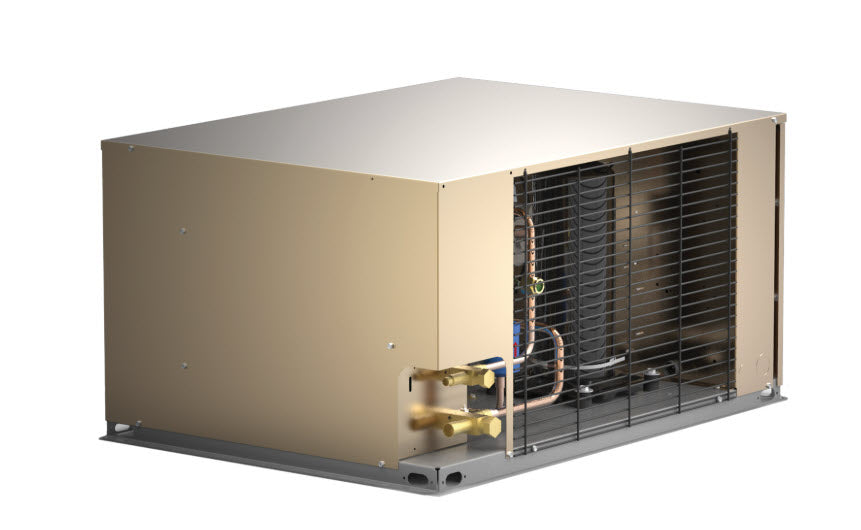

Heatcraft HCH0035LCBCZA0200 Chandler Air Cooled Condensing Unit 208-230/3/60

Product Description

The HeatCraft HCH0035LCBCZA0200 air-cooled condensing unit features Copeland Hermetic reciprocating or Scroll compressors, and LG scroll. Designed for medium or low-temperature applications with pre-configured option packages or custom configurations. Piping connections are externally mounted, and cabinets are removable for easy access to service components. It is UL Listed for US & Canada.

• ½ to 6 HP air-cooled condensing units, with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll
• Units available for medium or low temperature applications with either pre-configured option packages or custom
• Piping connections are externally mounted, and cabinets are removable for easy access to service components

Product Highlights

Air-cooled condensing unit with scroll compressor, suitable for low-temperature applications. Features easy access service components and UL listing.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0035LCBCZA0200

Technical Specifications

• Ambient Temperature F: 95 ° F
• Application: freezer
• Capacity BTUH: 13,070
• Compressor LRA: 88
• Compressor Model Number: ZF11K4E-TF5
• Compressor P N: ZF11K4E-TF5
• Compressor Type: Scroll
• Condenser Coil Type: Microchannel Coil
• Defrost Amps: 23
• Depth In: 28.25
• Evap Fan Amps: 9
• Fan Motor Fla: 1
• Fan Motor Qty: 2
• Height (In.): 19.75
• Liquid Od: 0.5
• MCA: 28.8
• MOPD: 35
• Meets Minimum Awef: TRUE
• Operating Range: Low Temperature
• Power: 208-230/3/60
• Product Brand: Chandler
• Product Category: Condensing Units and Packaged Systems
• Product Classification: current
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Type: Air-Cooled Condensing Units
• Rating Point: 95 ° F Ambient -20 ° F SST
• Receiver 90 Pc Full Optional Lbs: 20
• Receiver 90 Pc Full Standard Lbs: 14
• Refrigerant: R-404A
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 28.8
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 35
• Sound Data Dba: 64
• Suction Od: 0.875
• Suction Temperature F: -20 ° F
• Voltage: 208-230/3/60
• Width (In.): 39.125
• Compressor RLA: 12.17948718
