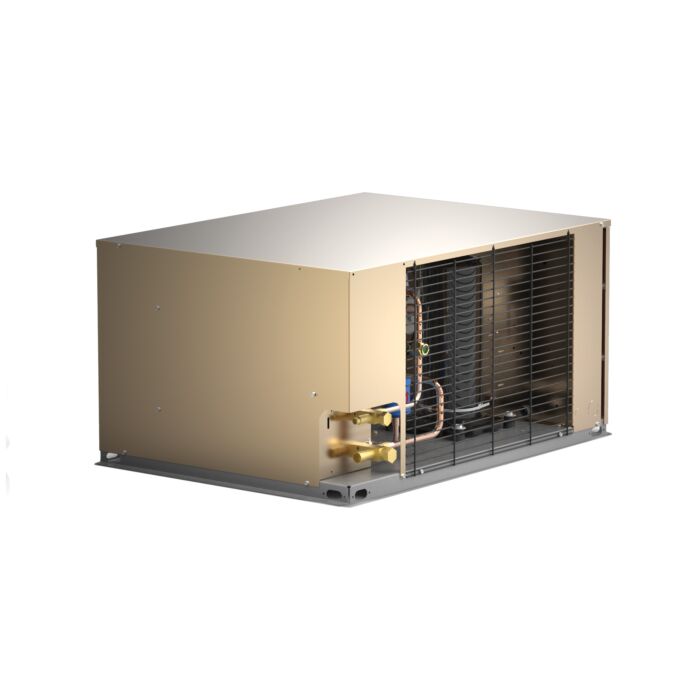

Heatcraft HCH0030MCACZA0000 Chandler Model : HCH0030MCACZA0000

Product Description

The HEATCRAFT HCH0030MCACZA0000 Chandler Model : HCH0030MCACZA0000 is a ½ to 6 HP air-cooled condensing unit with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll compressors, designed for flexibility and serviceability. These units are energy efficient and approved for use with multiple refrigerants. Units can be configured to meet minimum AWEF, Title 24 or other regulations.

• Designed for flexibility and serviceability.
• Energy efficient design.
• Approved for use with multiple refrigerants.

Product Highlights

Air-cooled condensing units with scroll compressors for medium or low temperature applications. Piping connections are externally mounted, and cabinets are removable for easy access to service components.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0030MCACZA0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor P N: ZS21KAE-TF5
• Voltage: 208-230V/3 Phase
• Cabinet: C3
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95 F Ambient 25 F SST
• Ambient Temperature F: 95 F
• Suction Temperature F: 25 F
• Capacity BTUH: 31,930
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 29.25
• Depth In: 30.25
• Width (In.): 43.875
• Approx Net Weight (lbs): 297
• Receiver 90 Pc Full Standard Lbs: 20
• Receiver 90 Pc Full Optional Lbs: 40
• Sound Data Dba: 63
• Compressor Model Number: ZS21KAE-TF5
• Power: 208-230/3/60
• Compressor RLA: 13.65384615
• Compressor LRA: 93
• Fan Motor Qty: 1
• Fan Motor Fla: 3.5
• Defrost Amps: 30
• MCA: 20.6
• MOPD: 30
• Evap Fan Amps: 10
• Defrost Heater Amps: 30
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 37.5
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 40
• Connection Type: Parallel Piped
• Liquid Od: 0.5
• Suction Od: 0.875
• Compressor Brand: Copeland Scroll
• HP: 3
• Manufacturer: Heat Craft
• Manufacturer Part Number: HCH0030MCACZA0000
• Temperature: Medium
