Heatcraft HCH0030LBACZA0000 Parts & Manuals

Product Description

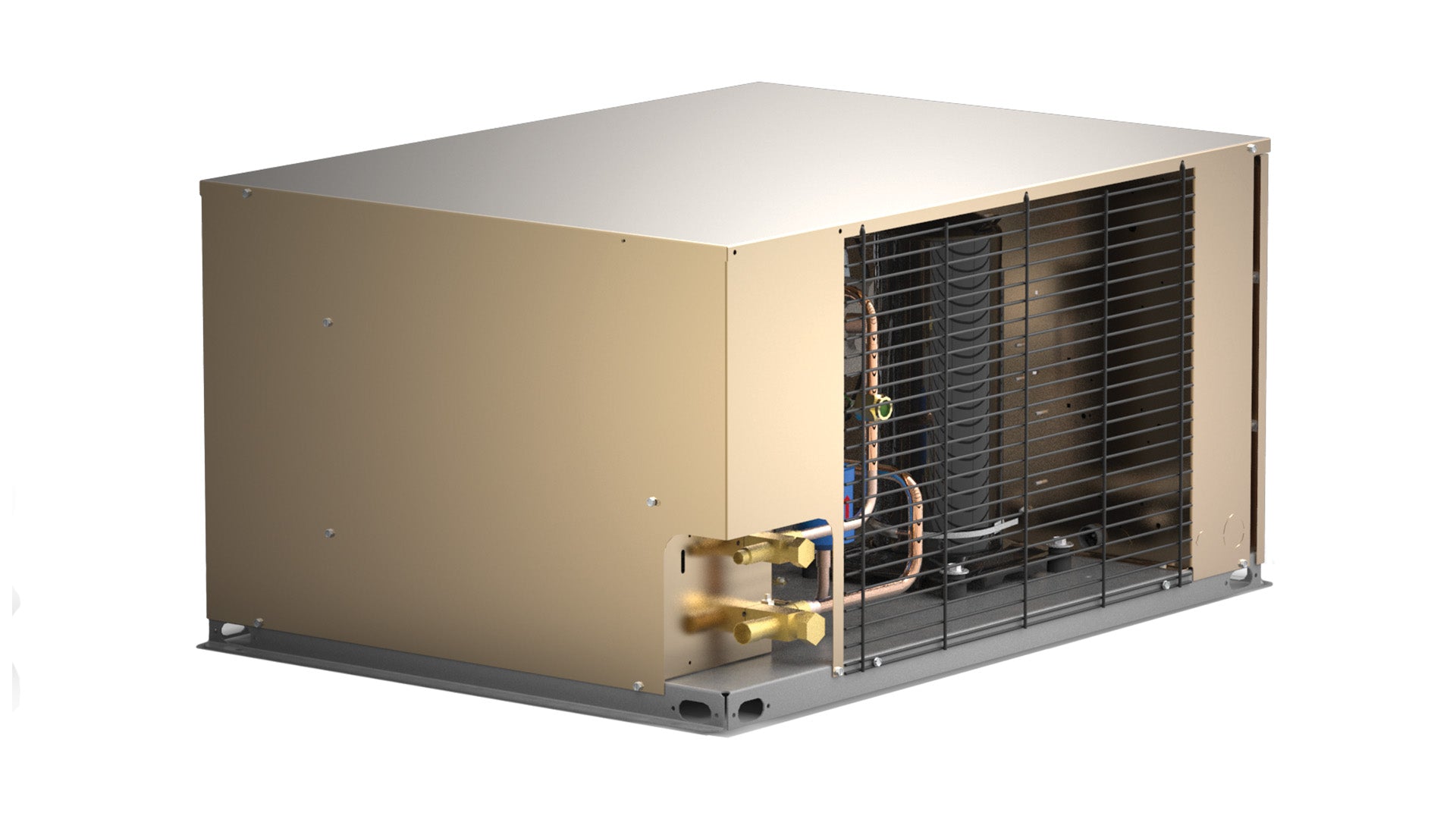

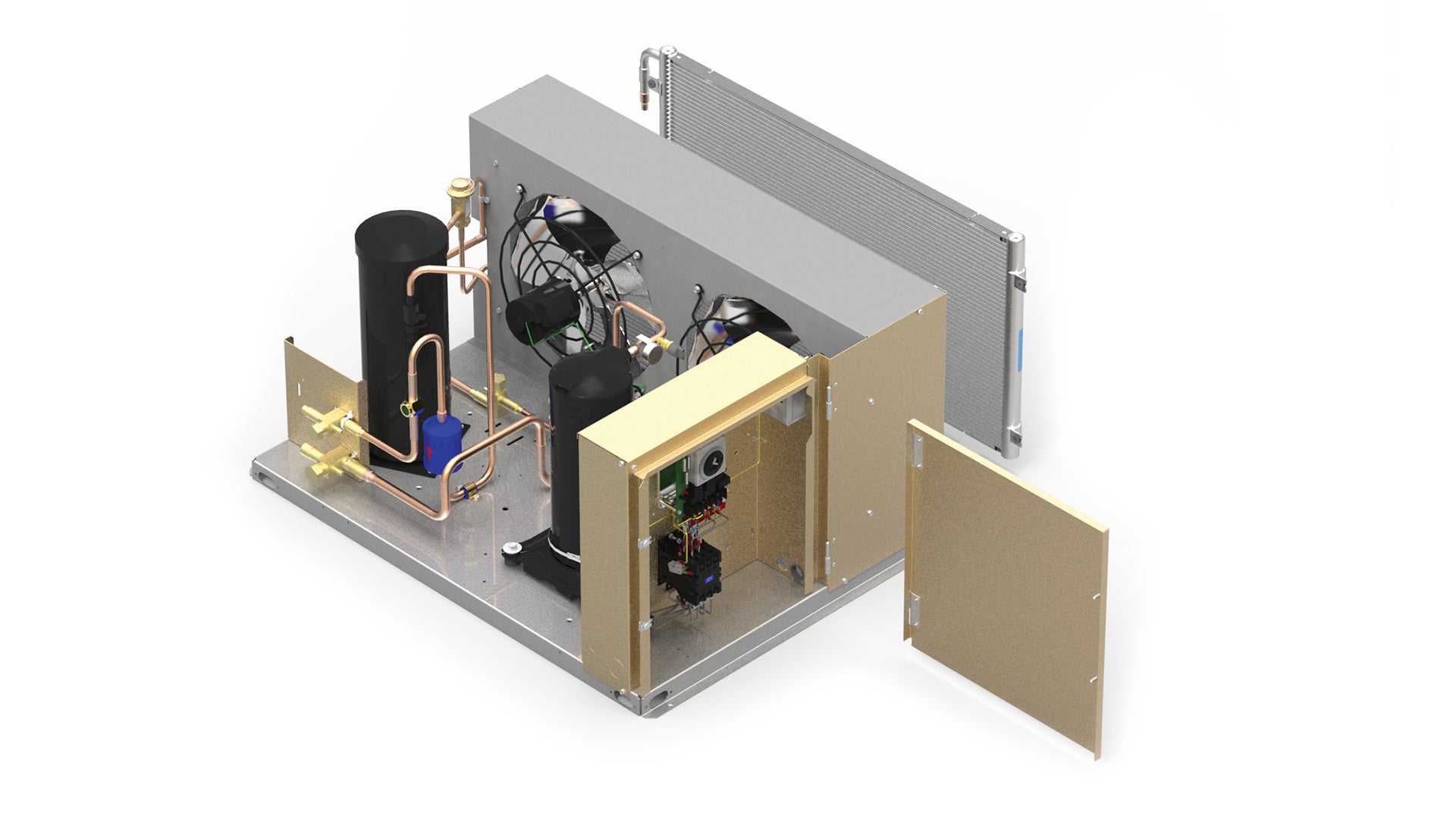

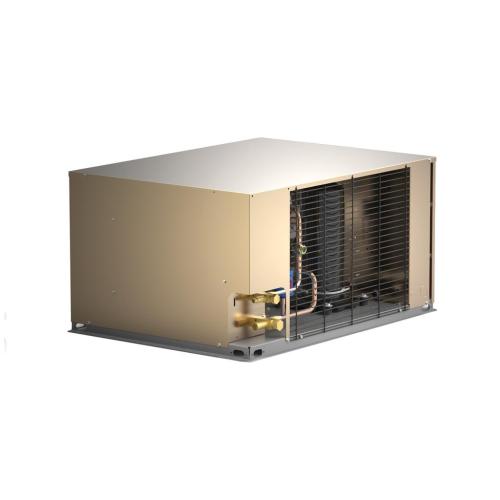

The HEATCRAFT HCH0030LBACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. It is engineered for medium or low-temperature applications with pre-configured option packages or custom configurations. Piping connections are externally mounted, and cabinets are removable for easy access to service components.

• Designed for flexibility and serviceability
• Piping connections are externally mounted
• Energy efficient and approved for use with multiple refrigerants

Product Highlights

This air-cooled condensing unit is designed for easy access and is energy efficient.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0030LBACZA0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: freezer
• Operating Range: Low Temperature
• Compressor Type: Scroll
• Compressor P N: ZF09K4E-PFV
• Voltage: 208-230/1/60
• Cabinet: C2
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95 F Ambient -20 F SST
• Ambient Temperature F: 95 F
• Suction Temperature F: -20 F
• Capacity BTUH: 10,620
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 19.75
• Depth In: 28.25
• Width (In.): 39.125
• Approx Net Weight (lbs): 230
• Receiver 90 Pc Full Standard Lbs: 14
• Receiver 90 Pc Full Optional Lbs: 20
• Sound Data Dba: 64
• Compressor Model Number: ZF09K4E-PFV
• Compressor RLA: 12.82051282
• Compressor LRA: 88
• Fan Motor Qty: 2
• Fan Motor Fla: 1
• MCA: 37.5
• MOPD: 40
• Liquid Od: 0.5
• Suction Od: 0.875
