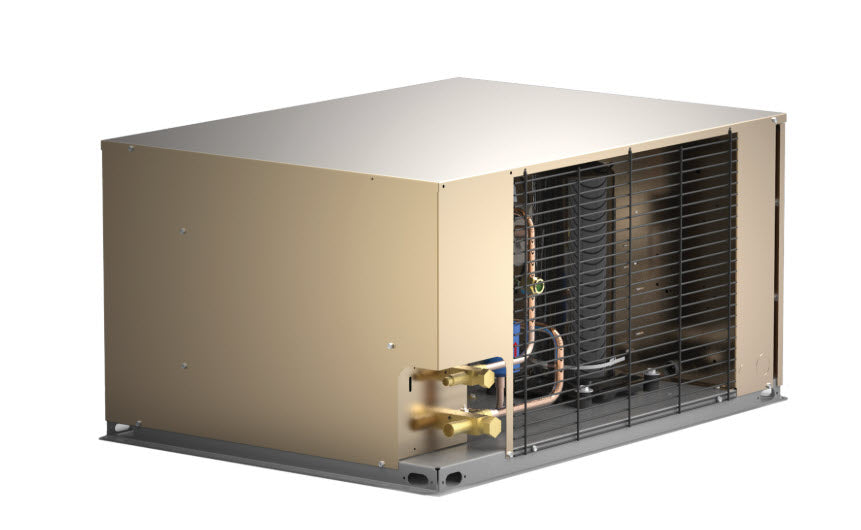

Heatcraft HCH0025LBACZA0200 Chandler Air Cooled Condensing Unit 208-230/1/60

Product Description

The Heatcraft HCH0025LBACZA0200 is an air-cooled condensing unit with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll. Designed for ½ to 6 HP, these units are suitable for medium or low-temperature applications with pre-configured or custom options. Piping connections are externally mounted, and cabinets are removable for easy access. UL Listed for US & Canada.

• ½ to 6 HP air-cooled condensing units
• Piping connections are externally mounted
• Cabinets are removable for easy access to service components

Product Highlights

Air-cooled condensing unit with easy access to service components and suitable for medium or low-temperature applications.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0025LBACZA0200

Technical Specifications

• Ambient Temperature F: 95 F
• Application: freezer
• Capacity BTUH: 9,690
• Compressor LRA: 73
• Compressor Model Number: ZF08K4E-PFV
• Compressor P N: ZF08K4E-PFV
• Compressor RLA: 14.74358974
• Compressor Type: Scroll
• Condenser Coil Type: Microchannel Coil
• Defrost Amps: 30
• Defrost Heater Amps: 30
• Depth In: 28.25
• Evap Fan Amps: 10
• Fan Motor Fla: 1
• Fan Motor Qty: 2
• Height (In.): 19.75
• Liquid Od: 0.5
• MCA: 37.5
• MOPD: 40
• Meets Minimum Awef: TRUE
• Operating Range: Low Temperature
• Power: 208-230/1/60
• Product Brand: Chandler
• Product Category: Condensing Units and Packaged Systems
• Product Classification: current
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Type: Air-Cooled Condensing Units
• Rating Point: 95 F Ambient -20 F SST
• Receiver 90 Pc Full Optional Lbs: 20
• Receiver 90 Pc Full Standard Lbs: 14
• Refrigerant: R-404A
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 37.5
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 40
• Sound Data Dba: 64
• Suction Od: 0.875
• Suction Temperature F: -20 F
• Voltage: 208-230/1/60
• Width (In.): 39.125
