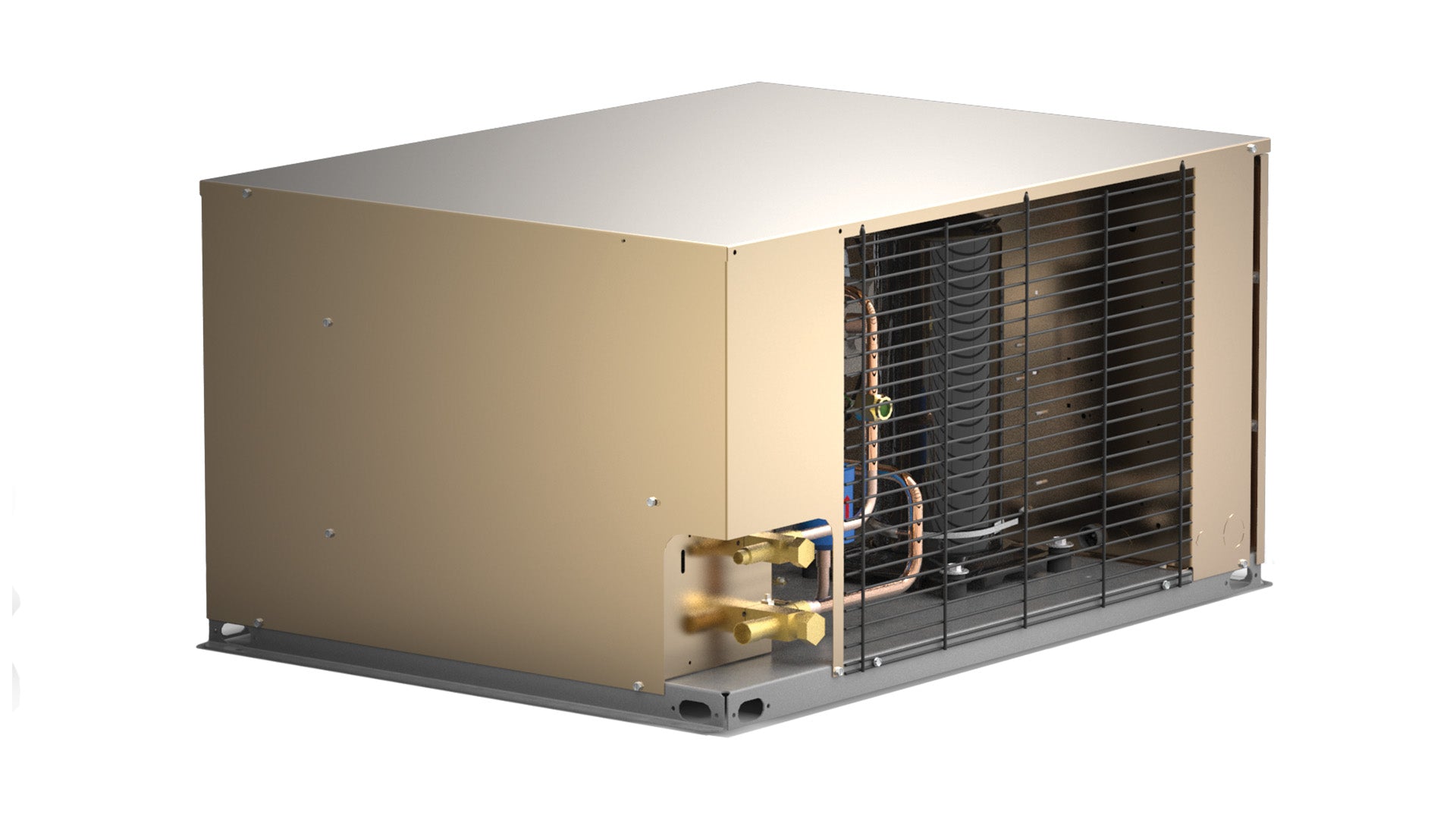

Heatcraft HCH0015MCACZA0000 Chandler Air-Cooled Condensing Unit 208-230/3/60

Product Description

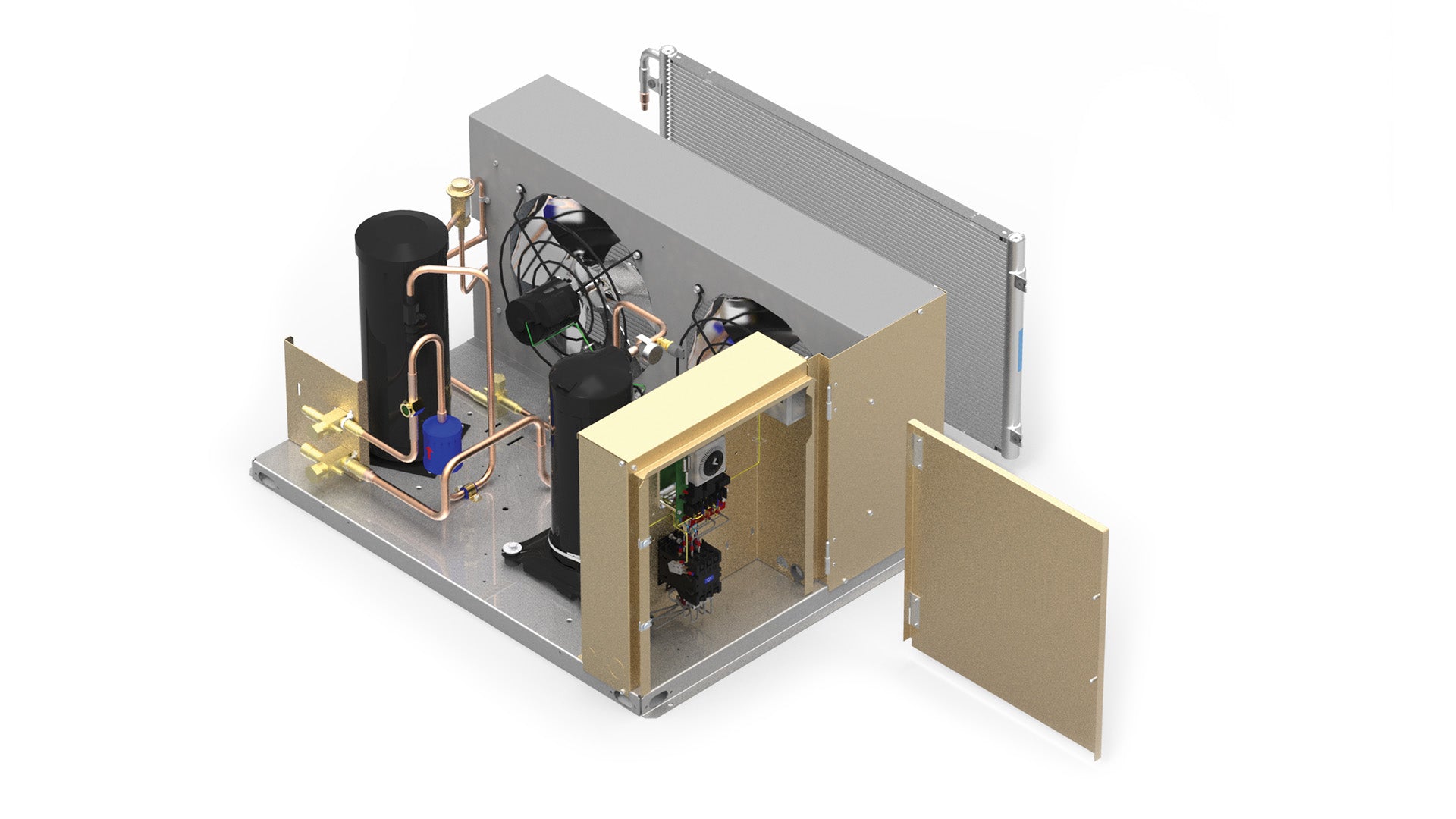

The HEATCRAFT HCH0015MCACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. These units are suitable for medium temperature applications and are energy efficient. They are approved for use with multiple refrigerants and can be configured to meet minimum AWEF. Piping connections are externally mounted for easy access.

• Designed for flexibility and serviceability.
• Energy efficient and approved for use with multiple refrigerants.
• Piping connections are externally mounted for easy access.

Product Highlights

Air-cooled condensing unit with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll compressors, designed for medium temperature applications.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0015MCACZA0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor P N: ZS13KAE-TF5
• Voltage: 208-230/3/60
• Cabinet: C2
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95 00b0 F Ambient 25 00b0 F SST
• Ambient Temperature F: 95 00b0 F
• Suction Temperature F: 25 00b0 F
• Capacity BTUH: 17,540
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 19.75
• Depth In: 28.25
• Width (In.): 39.125
• Approx Net Weight (lbs): 221
• Receiver 90 Pc Full Standard Lbs: 14
• Receiver 90 Pc Full Optional Lbs: 20
• Sound Data Dba: 63
• Compressor Model Number: ZS13KAE-TF5
• Compressor RLA: 8.717948718
• Compressor LRA: 58
• Fan Motor Qty: 2
• Fan Motor Fla: 1
• MCA: 15
• MOPD: 20
• Connection Type: Parallel Piped
• Liquid Od: 0.5
• Suction Od: 0.875
• Compressor Brand: Copeland Scroll
• HP: 1 1/2
• Manufacturer: Heat Craft
• Manufacturer Part Number: HCH0015MCACZA0000
• Temperature: Medium
• Defrost Amps: 23
• Evap Fan Amps: 9
• Defrost Heater Amps: 23
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 28.8
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 30
