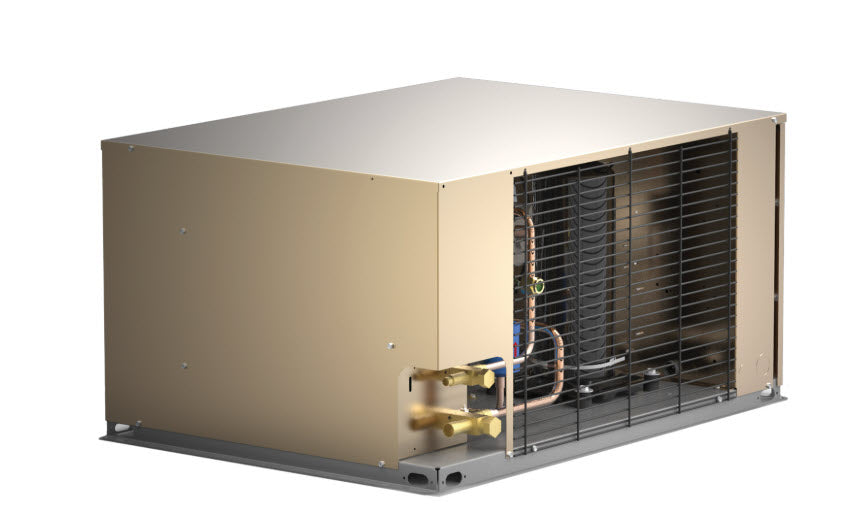

Heatcraft HCH0010MCACZA0200 Air-Cooled Condensing Unit 208-230/3/60

Product Description

The HEATCRAFT HCH0010MCACZA0200 air-cooled condensing unit features Copeland Hermetic reciprocating or Scroll compressors, and LG scroll. Designed for medium temperature applications with pre-configured option packages or custom configurations. Piping connections are externally mounted, and cabinets are removable for easy access. Energy efficient and approved for use with multiple refrigerants. Meets Minimum AWEF UL Listed US & Canada.

• ½ to 6 HP air-cooled condensing units, with Copeland Hermetic reciprocating or Scroll compressors, and LG scroll
• Piping connections are externally mounted, and cabinets are removable for easy access to service components
• Units can be configured to meet minimum AWEF, Title 24 or other regulations

Product Highlights

Air-cooled condensing unit with scroll compressor, suitable for medium temperature applications. Features easy access service components and energy-efficient design.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0010MCACZA0200

Technical Specifications

• Ambient Temperature F: 95 F
• Application: cooler
• Approx Net Weight (lbs): 179
• Cabinet: C1
• Capacity BTUH: 12,200
• Compressor LRA: 55.4
• Compressor Model Number: ZS09KAE-TF5
• Compressor P N: ZS09KAE-TF5
• Compressor RLA: 7.179487179
• Compressor Type: Scroll
• Condenser Coil Type: Microchannel Coil
• Connection Type: Parallel Piped
• Defrost Amps: 15
• Defrost Heater Amps: 15
• Depth In: 28.25
• Evap Fan Amps: 5
• Fan Motor Fla: 0.5
• Fan Motor Qty: 1
• Height (In.): 19.75
• Liquid Od: 0.375
• MCA: 15
• MOPD: 15
• Meets Minimum Awef: TRUE
• Operating Range: Medium Temperature
• Power: 208-230/3/60
• Product Brand: Chandler
• Product Category: Condensing Units and Packaged Systems
• Product Classification: current
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Type: Air-Cooled Condensing Units
• Rating Point: 95 F Ambient 25 F SST
• Receiver 90 Pc Full Optional Lbs: -
• Receiver 90 Pc Full Standard Lbs: 9
• Refrigerant: R-404A
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 20
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 20
• Sound Data Dba: 61
• Suction Od: 0.625
• Suction Temperature F: 25 F
• Voltage: 208-230/3/60
• Width (In.): 24.625
