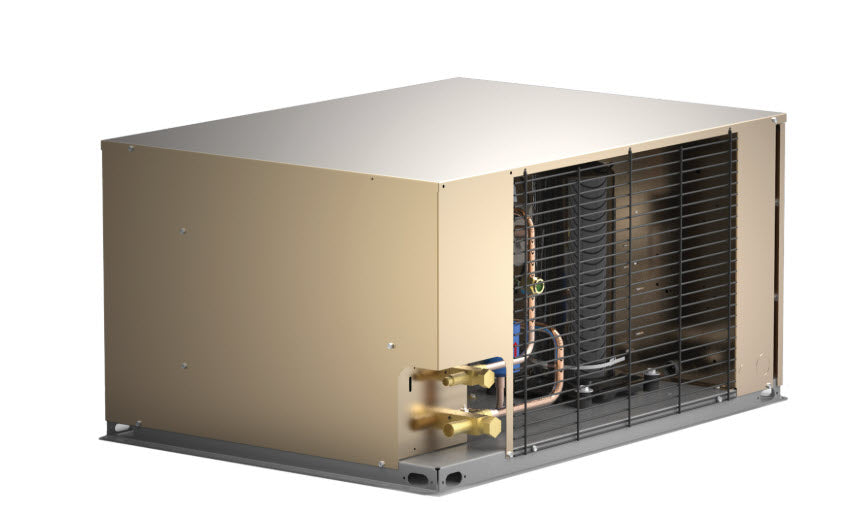

Heatcraft HCH0010MBACZA0200 Air-Cooled Condensing Unit 208-230/1/60

Product Description

The HEATCRAFT HCH0010MBACZA0200 air-cooled condensing unit features Copeland Hermetic reciprocating or Scroll compressors, and LG scroll, ranging from 1/2 to 6 HP. Designed for medium or low-temperature applications, it offers pre-configured option packages or custom configurations. Piping connections are externally mounted, and cabinets are removable for easy access. It is energy efficient and approved for use with multiple refrigerants.

• Uses Copeland Hermetic reciprocating or Scroll compressors, and LG scroll
• Energy efficient design approved for use with multiple refrigerants
• Piping connections are externally mounted for easy access

Product Highlights

This air-cooled condensing unit is designed for efficiency and easy maintenance, suitable for various refrigeration needs.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0010MBACZA0200

Technical Specifications

• Ambient Temperature F: 95 F
• Application: cooler
• Approx Net Weight (lbs): 179
• Cabinet: C1
• Capacity BTUH: 12,200
• Compressor LRA: 40.3
• Compressor Model Number: ZS09KAE-PFV
• Compressor P N: ZS09KAE-PFV
• Compressor RLA: 8.974358974
• Compressor Type: Scroll
• Condenser Coil Type: Microchannel Coil
• Connection Type: Parallel Piped
• Defrost Amps: 15
• Defrost Heater Amps: 15
• Depth In: 28.25
• Evap Fan Amps: 5
• Fan Motor Fla: 0.5
• Fan Motor Qty: 1
• Height (In.): 19.75
• Liquid Od: 0.375
• MCA: 15
• MOPD: 20
• Meets Minimum Awef: TRUE
• Operating Range: Medium Temperature
• Power: 208-230/1/60
• Product Brand: Chandler
• Product Category: Condensing Units and Packaged Systems
• Product Classification: current
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Type: Air-Cooled Condensing Units
• Rating Point: 95 F Ambient 25 F SST
• Receiver 90 Pc Full Optional Lbs: -
• Receiver 90 Pc Full Standard Lbs: 9
• Refrigerant: R-404A
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 20
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 25
• Sound Data Dba: 61
• Suction Od: 0.625
• Suction Temperature F: 25 F
• Voltage: 208-230/1/60
• Width (In.): 24.625
