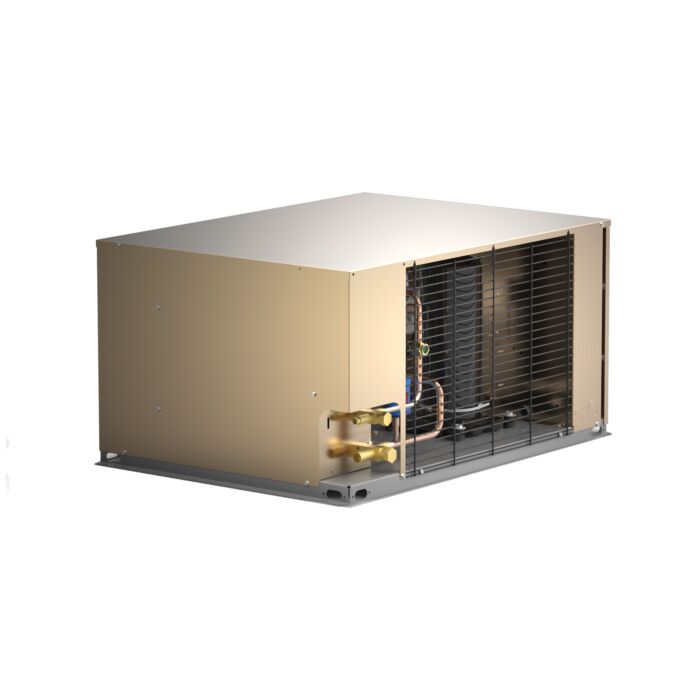

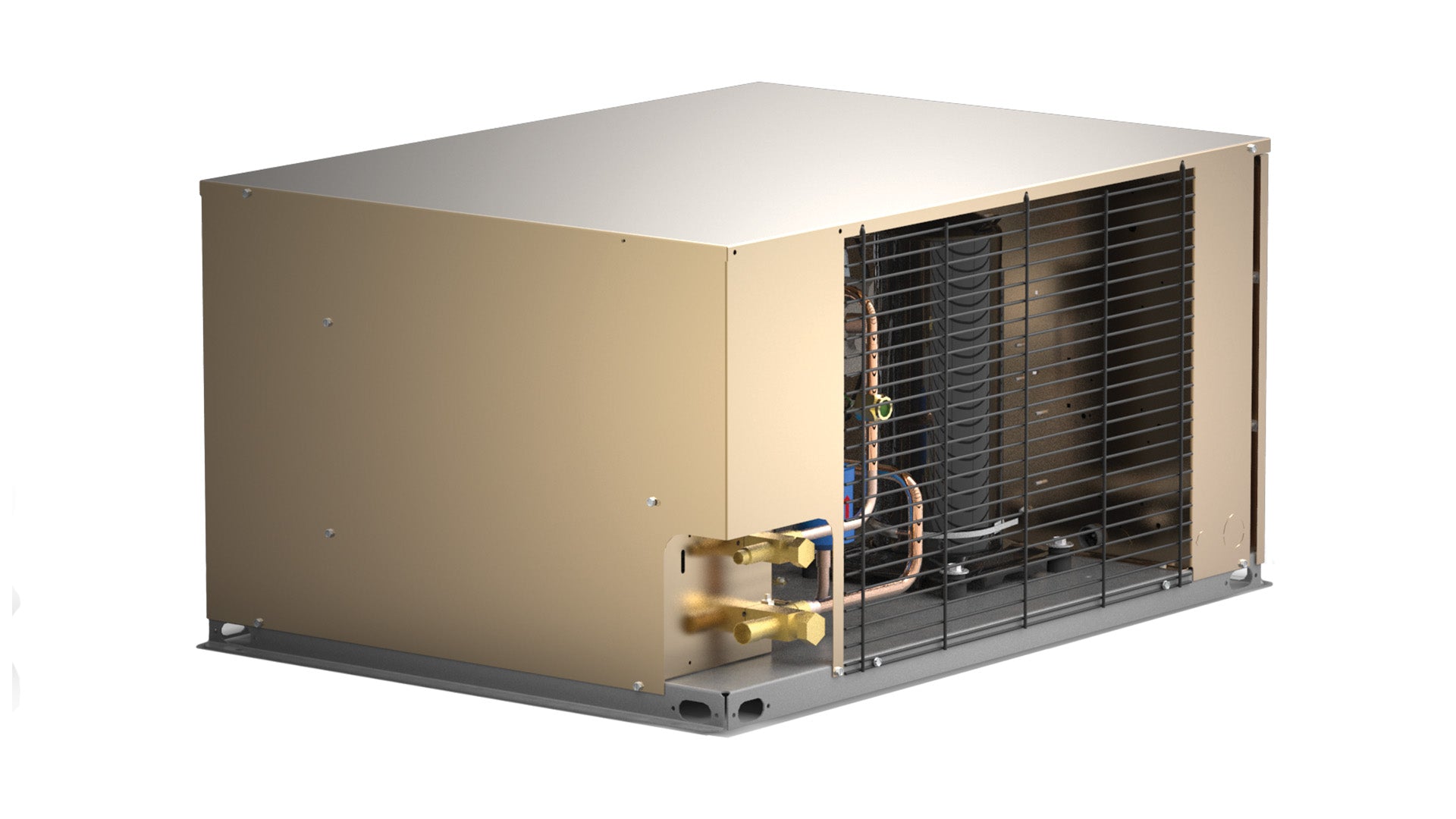

Heatcraft HCH0010MBACZA0000 Chandler Model Air-Cooled Condensing Unit 208-230/1/60

Product Description

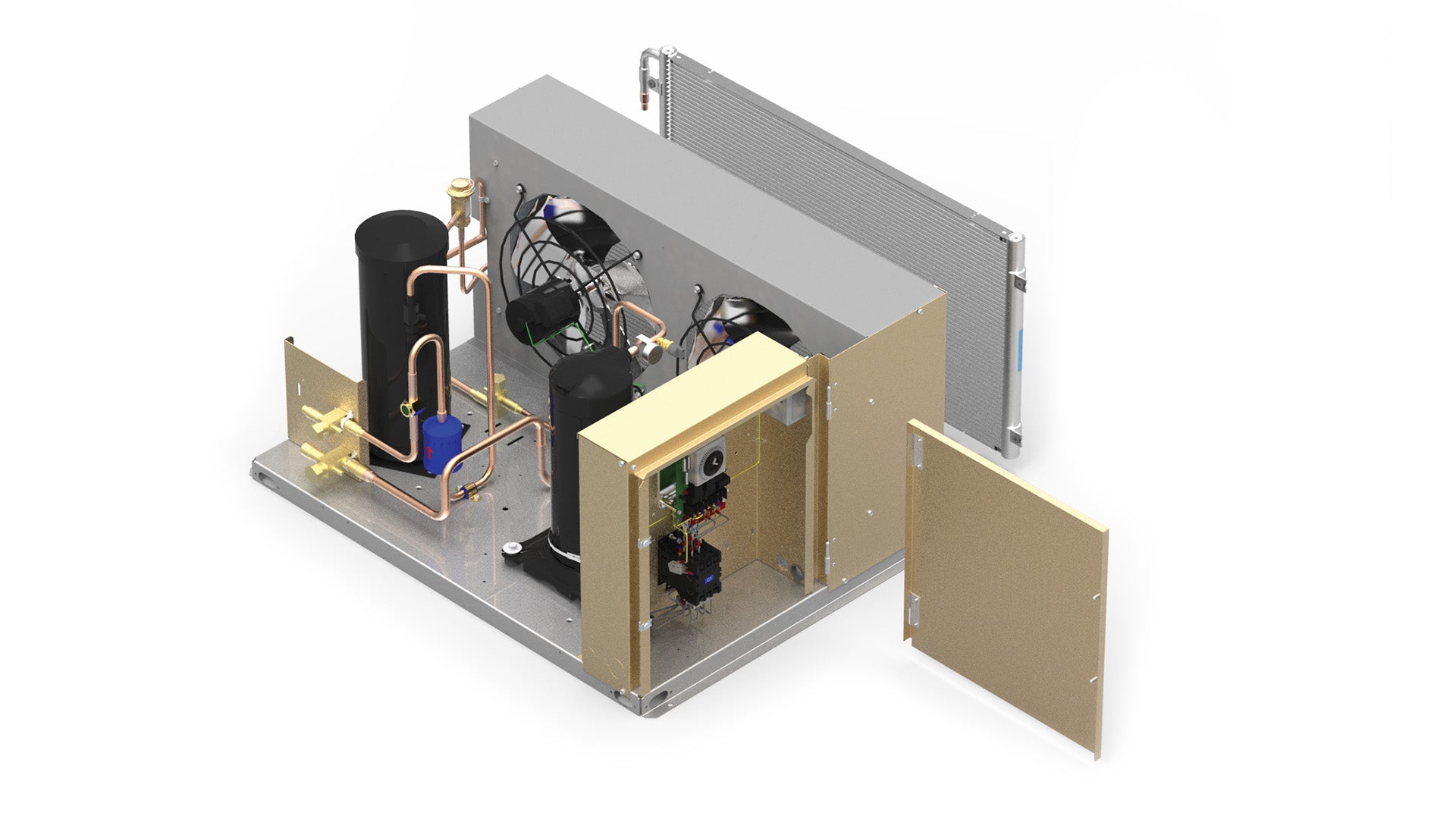

The HEATCRAFT HCH0010MBACZA0000 Chandler Model air-cooled condensing units, ranging from 1/2 to 6 HP, feature Copeland Hermetic reciprocating or Scroll compressors and LG scroll compressors, designed for flexibility and serviceability. These units are suitable for medium or low-temperature applications with pre-configured or custom configurations. Piping connections are externally mounted, and cabinets are removable for easy access.

• Designed for flexibility and serviceability.
• Energy efficient and approved for use with multiple refrigerants.
• Piping connections are externally mounted for easy access.

Product Highlights

These units can be configured to meet minimum AWEF, Title 24 or other regulations.

Product Information

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: HCH0010MBACZA0000

Technical Specifications

• Product Brand: Chandler
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor P N: ZS09KAE-PFV
• Voltage: 230V
• Cabinet: C1
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95 0 F Ambient 25 0 F SST
• Ambient Temperature F: 95 0 F
• Suction Temperature F: 25 0 F
• Capacity BTUH: 12,200
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 19.75
• Depth In: 28.25
• Width (In.): 24.625
• Approx Net Weight (lbs): 179
• Receiver 90 Pc Full Standard Lbs: 9
• Receiver 90 Pc Full Optional Lbs: None
• Sound Data Dba: 61
• Compressor Model Number: ZS09KAE-PFV
• Power: 208-230/1/60
• Compressor RLA: 8.974358974
• Compressor LRA: 40.3
• Fan Motor Qty: 1
• Fan Motor Fla: 0.5
• Defrost Amps: 15
• MCA: 15
• MOPD: 20
• Evap Fan Amps: 5
• Defrost Heater Amps: 15
• Remote Loads 1 Contractors High Amps Electric Defrost Mca: 20
• Remote Loads 1 Contractors High Amps Electric Defrost Mopd: 25
• Connection Type: Parallel Piped
• Liquid Od: 0.375
• Suction Od: 0.625
• Compressor Brand: Copeland Scroll
• HP: 1
• Manufacturer: Heat Craft
• Manufacturer Part Number: HCH0010MBACZA0000
• Temperature: Medium
