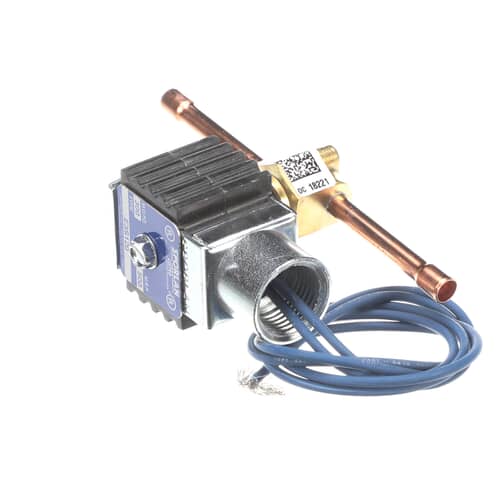

Heatcraft 29301201 Solenoid Valve 1/4 Inch Without Coil

Product Description

The HEATCRAFT 29301201 is a solenoid valve designed for commercial refrigeration and appliance systems. This valve ships without a coil, making it suitable for installations where an existing or separately sourced coil will be used. The 1/4-inch port size and E3S120 designation indicate compatibility with standard refrigerant line configurations found in light commercial and commercial refrigeration equipment. Rated for 120 CAM service, this valve controls refrigerant flow as part of the system's liquid or suction line circuit. Installation and service are typically performed by licensed HVAC-R technicians familiar with commercial refrigeration systems.

This solenoid valve is intended for use in commercial refrigeration applications, including reach-in coolers, walk-in systems, display cases, and similar equipment where precise refrigerant flow control is required. The valve is a genuine HEATCRAFT part, sourced as a replacement component through the HEATCRAFT Parts and Accessories line for commercial appliance servicing. It is sized for smaller refrigerant lines where a 1/4-inch connection is specified by the original equipment design.

Key Features

• 1/4-inch port size suited for compact refrigerant line connections
• Supplied without coil for flexibility in coil selection or reuse of existing coil
• E3S120 series designation for commercial refrigeration service
• 120 CAM rating for appropriate flow and pressure handling
• Genuine HEATCRAFT replacement part for commercial appliance systems

Compatibility

Designed as an OEM-style replacement solenoid valve for HEATCRAFT commercial refrigeration appliances and systems requiring a 1/4-inch solenoid valve without coil in the E3S120 series.

Installation Notes

This valve should be installed by a certified HVAC-R technician holding an EPA Section 608 certification, as work involves refrigerant-containing systems. Recover all refrigerant and depressurize the system before removing the existing valve or making any line connections. Verify that the replacement coil voltage matches the system control circuit before energizing. Follow applicable local mechanical codes and the equipment manufacturer's service documentation during installation.

Technical Specifications

• Connection Size: 1/4 inch
• Series: E3S120
• CAM Rating: 120 CAM
• Coil Included: No

Standard Information

• Brand: HEATCRAFT
• Manufacturer Part Number: 29301201
