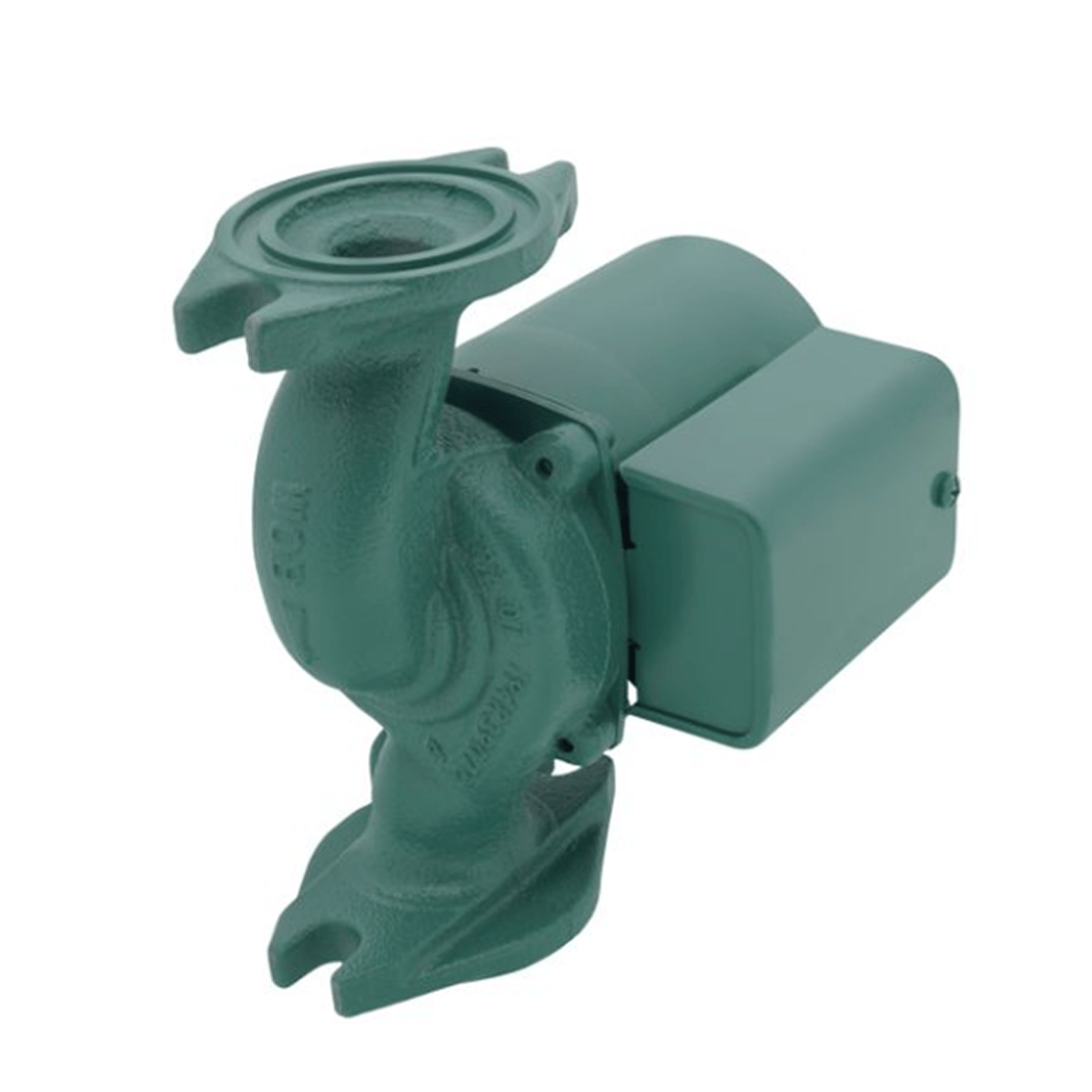

Heat Transfer Sales 007F5 Cast Iron Circulator with Integral Flow Check

Product Description

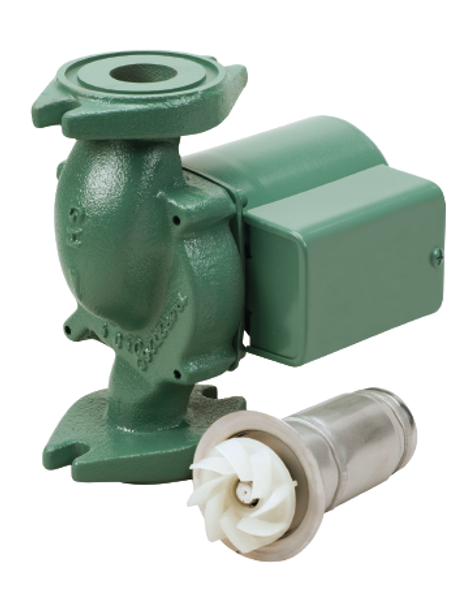

The Heat Transfer Sales 007F5 is a cast iron circulator designed for hydronic systems. This single-stage, wet-rotor pump features a cartridge design that simplifies maintenance. It is suitable for applications such as hydronic and radiant heating, hydro-air fan coils, and indirect water heaters. The circulator operates efficiently and is self-lubricating, making it maintenance-free. An integral flow check (IFC) is included in some models to prevent reverse flow and reduce installation costs.

• Field-serviceable cartridge design.
• Constructed with durable cast iron.
• Operates at a speed of 3250 RPM.

Product Highlights

The circulator's design includes features that enhance performance and ease of use, making it a reliable solution for heating applications.

Product Information

Standard Information

• Brand: Heat Transfer Sales
• MPN: 007F5

Technical Specifications

• Type: Circulator Pump
• Construction: Cast Iron
• Applications: Hydronic and radiant heating, hydro-air fan coils, indirect water heaters
• Max Pressure: 125 psi
• Horse Power: 1/25 hp
• Connection Size: 3/4, 1, 1-1/4, 1-1/2 inches
• Flow Range: 0-23 GPM
• Max Head: 10 feet
• Phase: Single
• RPM: 3250
• Connection: Flanged Reversed
