HEAT TRANSFER SALES 007-SF5 Stainless Steel Cartridge Circulator Pump

Product Description

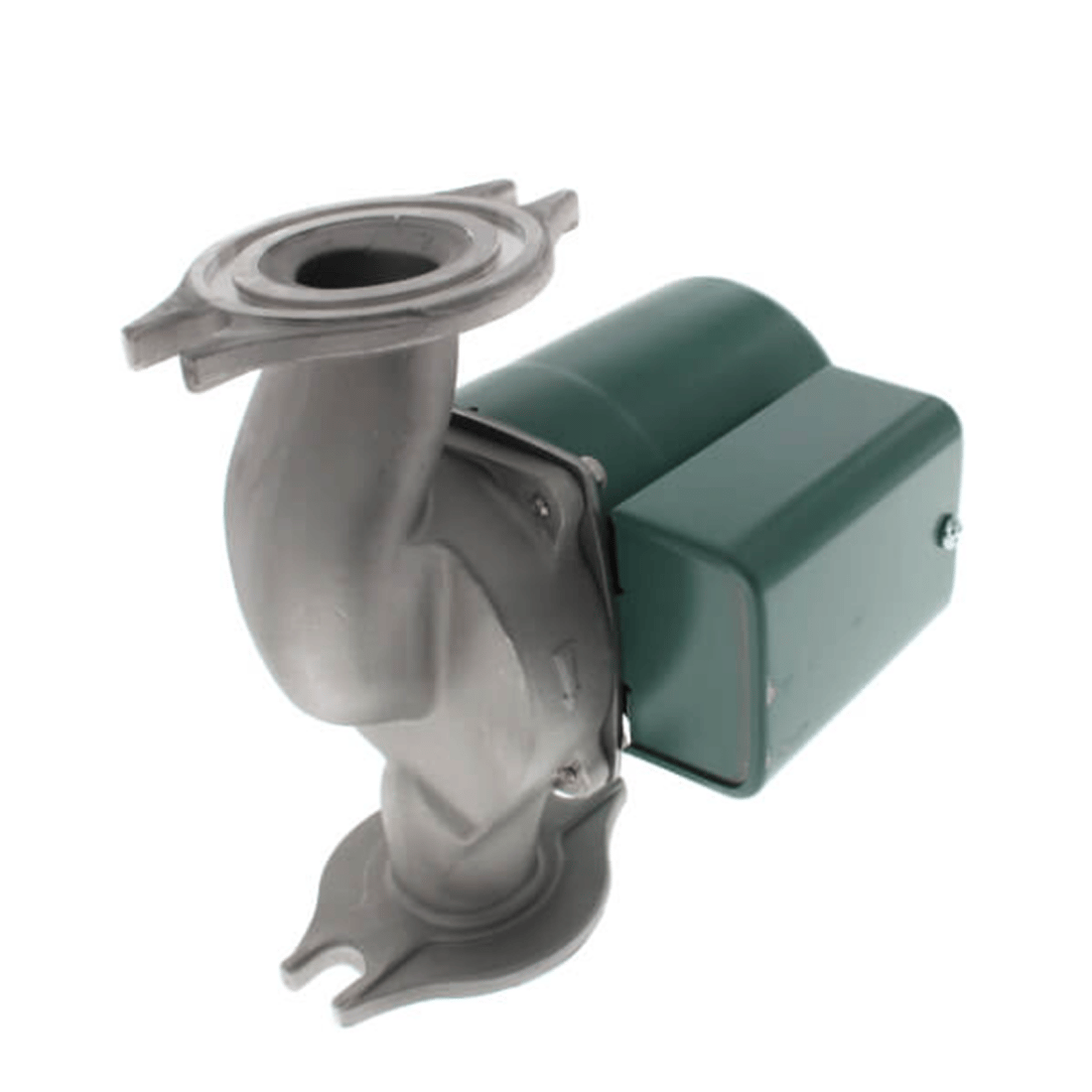

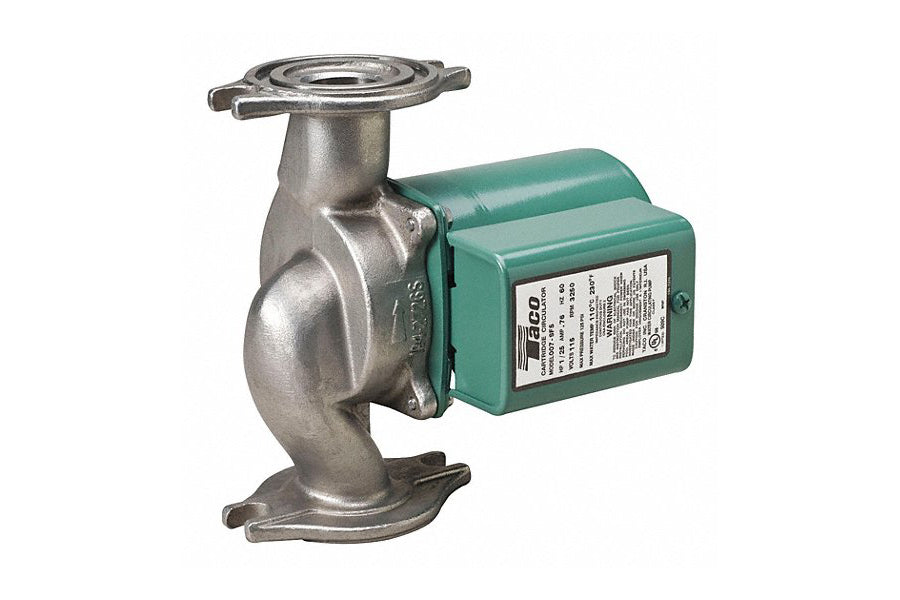

The Heat Transfer Sales 007-SF5 is a stainless steel cartridge circulator pump specifically designed for potable water and hydronic heating systems. This pump features a powerful one over twenty-five horsepower motor that operates at three thousand two hundred fifty RPM. The wet-rotor design ensures efficiency while the replaceable cartridge simplifies maintenance.

• Replaceable stainless steel cartridge for easy servicing.
• Quiet and efficient operation.
• Constructed with a durable stainless steel body.

Product Highlights

This circulator pump is ideal for applications involving potable water. It helps maintain effective water circulation in various heating systems.

Product Information

Standard Information

• Brand: Heat Transfer Sales
• Model: 007-SF5

Technical Specifications

• Series: 00 Series
• Pump Type: Booster
• Application: Potable Water
• Pump Body Material: Stainless Steel
• Connection Type: Flanged
• Flanges Included: No
• Mounting Type: In-Line
• Horsepower: 1/25 hp
• Motor Included: Yes
• RPM: 3250
• Input Voltage: 115V
• Phase: Single
• Hertz: 60Hz
• Enclosure: ODP
• Maximum Temperature: 230 °F
• Maximum Working Pressure: 125 PSI
• Flow Rate: 23 gpm
• Maximum Feet of Head: 10
• Minimum Temperature: 40 °F
• Depth: 6-3/8 inches
• Height: 6-3/8 inches
• Width: 4-3/4 inches
• Output Current: 0.76 A
