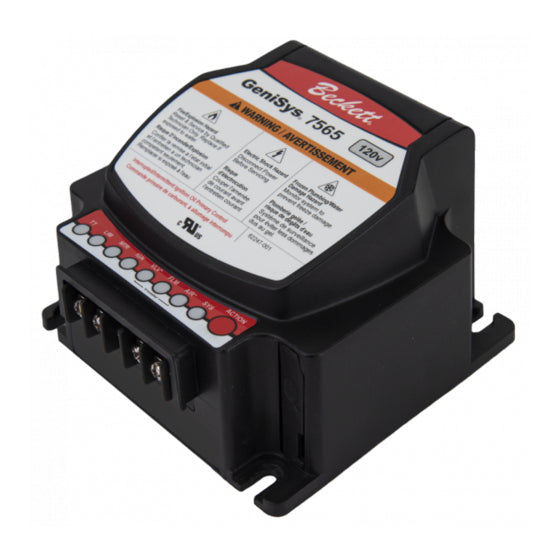

Heat Manager BECKETT GENISYS 7565 Advanced Oil Burner Control

Product Description

The Heat Manager Beckett GeniSys 7565 Advanced Oil Burner Control is a primary safety control designed for residential and light commercial oil burners, operating at 120 VAC. This unit is compatible with systems such as boilers, furnaces, and water heaters that have firing rates under twenty gallons per hour.

• Works with CAD cell or equivalent flame sensors.
• Accepts inputs for combustion air and blocked vent.
• Provides configurable timings for valve-on delay and motor-off delay.

Product Highlights

This burner control supports interrupted and intermittent duty ignition, making it versatile for various heating needs.

Product Information

Standard Information

• Input Voltage: 120 VAC nominal (102-132 VAC)
• Input Current: 100 mA plus burner motor, igniter, and valve loads

Technical Specifications

• Input Frequency: 60 Hz
• Combustion Air/Blocked Vent Input (Front): 10 mA @ 24 VAC min
• Combustion Air/Blocked Vent Input (Underside): 1.9 mA @ 120 VAC min
• Thermostat Anticipator Current: 0.1 A
• Thermostat Voltage: 24 VAC
• Motor Output: 120 VAC, 10 full load amps (FLA), 60 locked rotor amps (LRA)
• Igniter Output: 120 VAC, 3 A
• Solenoid Valve Output: 120 VAC, 1 A
