Product Description

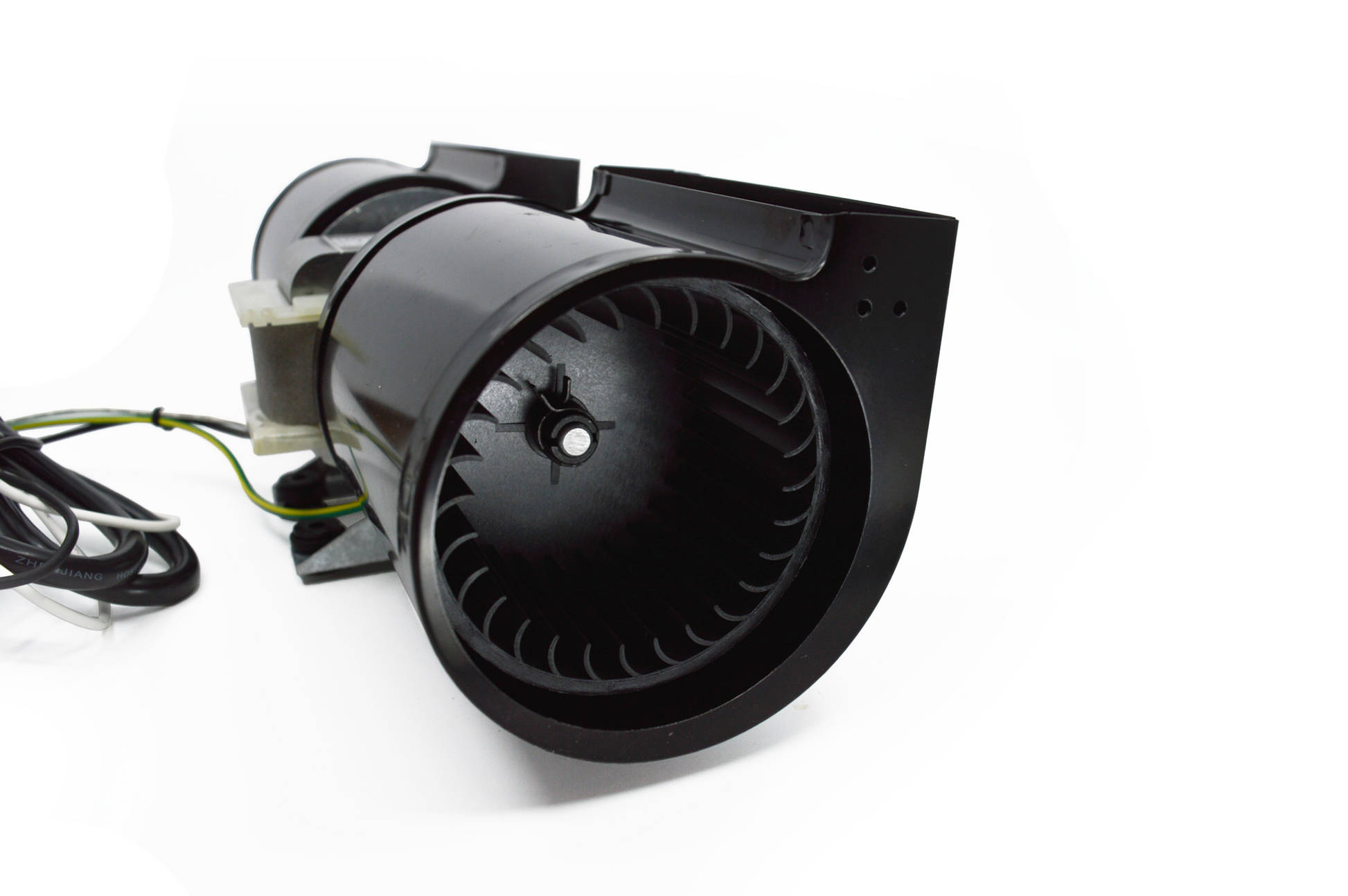

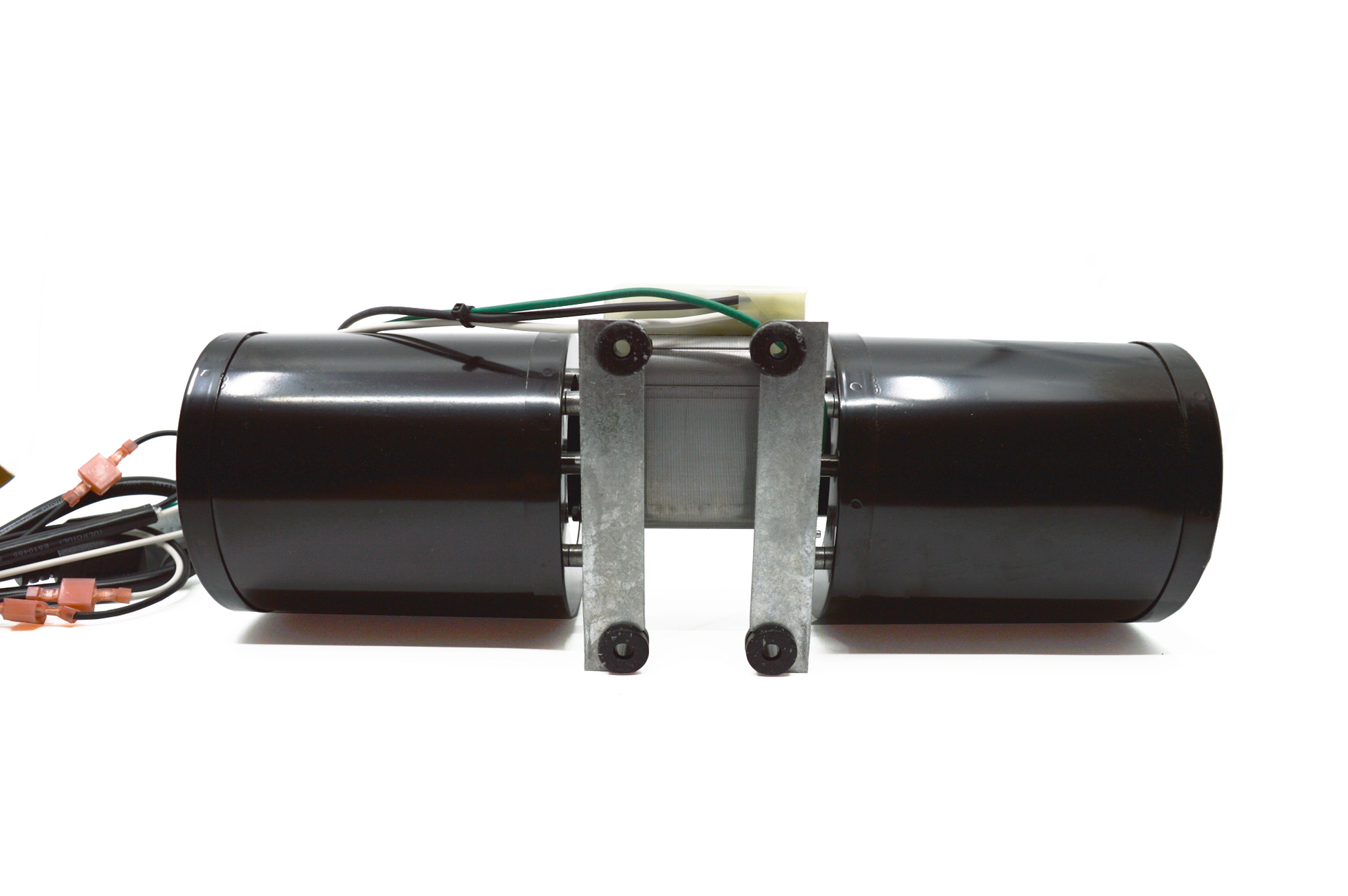

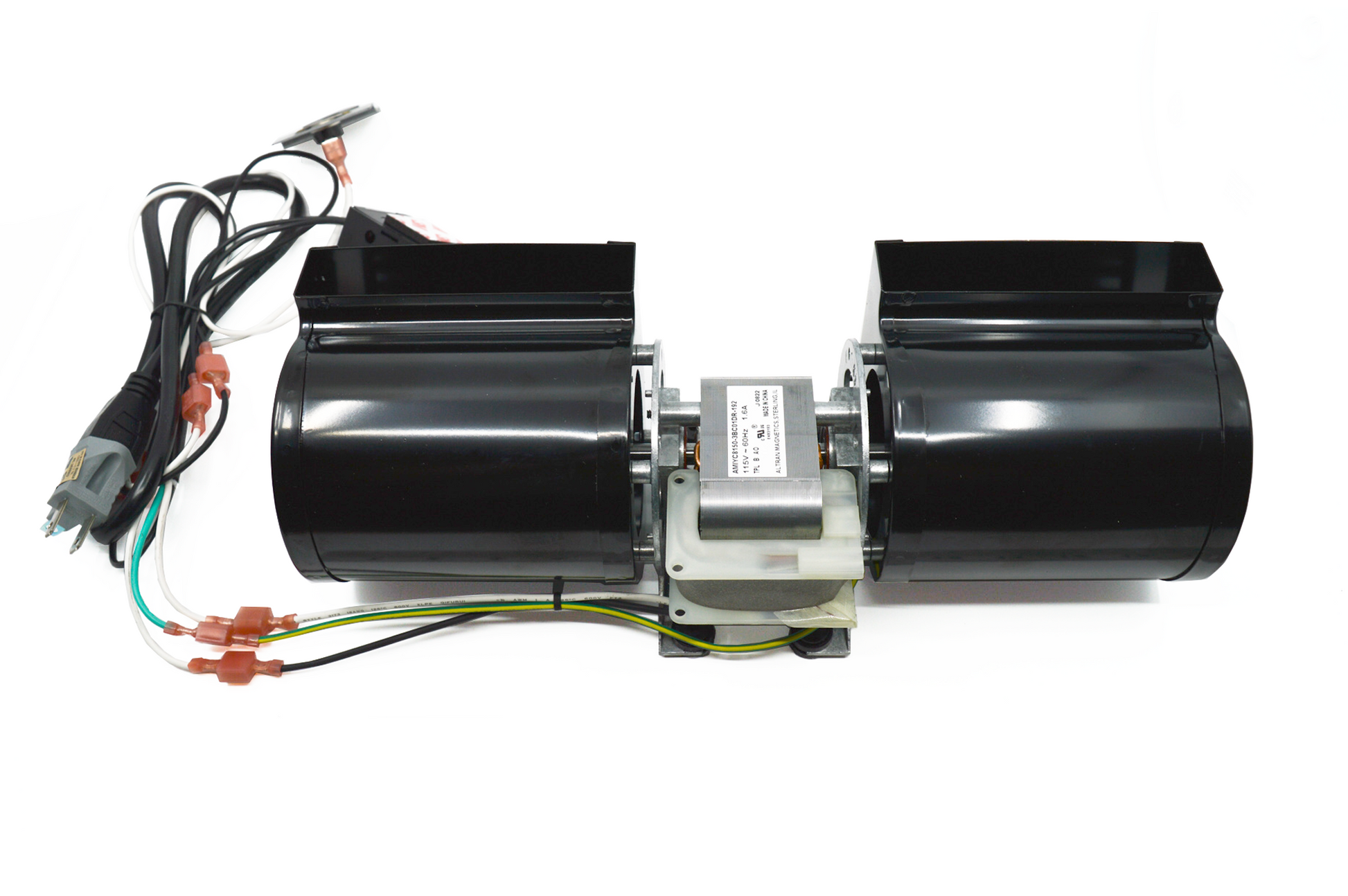

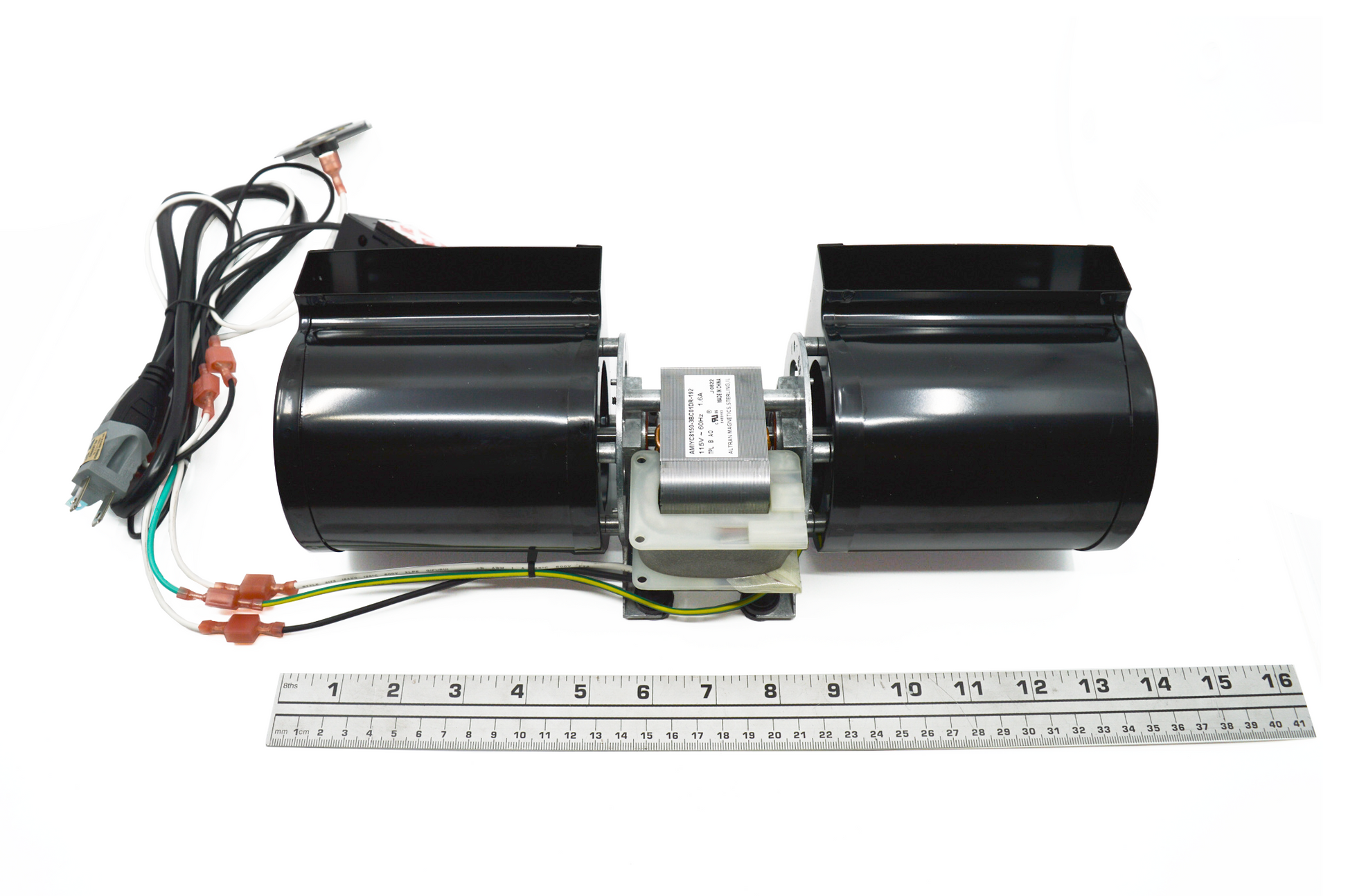

The HEAT & GLO GFK-160A blower kit fits dozens of fireplace models from brands like GTI, Heatilator, Heat & Glo, Hearth and Home and Quadra-Fire. It features a balanced, powerful, and quiet 180 CFM blower constructed of professional-grade materials. The kit is pre-wired and fully assembled for easy installation and includes a variable speed rheostat controller and an automatic thermostat sensor.
- 180 CFM ball bearing blower assembly
- Pre-wired for easy installation

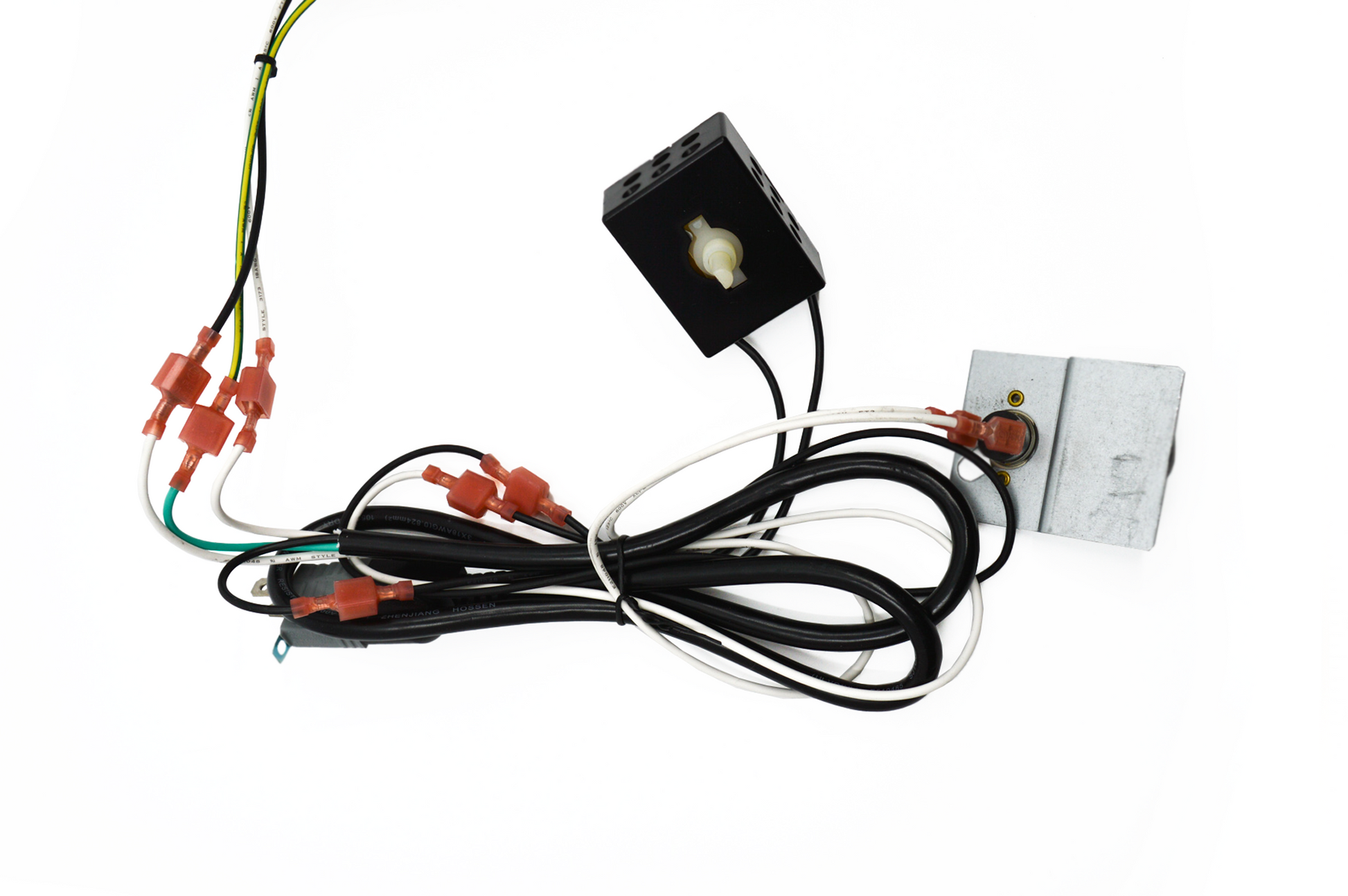

- Rheostat variable speed controller
Product Highlights
Improve fireplace efficiency and reduce energy bills with this easy-to-install blower kit. It effectively heats large rooms and offers both affordability and efficiency.
Product Information
Standard Information
-
Brand: HEAT & GLO
-
Manufacturer Part Number: GFK-160A
-
Country of Origin: USA
Technical Specifications
-
Air Discharge: 4.75" each blower
-
Type: AC Shaded Pole
-
Rotation: CW/CCW
-
Blade Type: High temperature rated composite
-
Housing Material: Steel powder coated black
-
Bearing Type: Ball
-
Outboard Bearing Type: N/A
-
Bearing Lubrication: High Temp
-
Motor Insulation: Class H (rated to 392°F)
-
Motor RPM: 3000
-
CFM: 180 CFM
-
Mounting Type: Free standing
-
Input Voltage: 115
-
Motor Frequency: 60 Hz
-
Watts: 184
-
Amperage: 1.60
-
Power Cord: Yes
-
Power Cord Length: 3 ft
-
Power Cord Type: 3-prong grounded
-
Rheostat Variable Speed Controller: Yes
-
Thermostat: Yes
-
Thermostat Type: Magnetic bracket with Selco sensor
-
Thermostat Temperature: 120° / 90°
-
Compatibility: GTI
6000 GDV, 36 DV 88, SL-36, SL-42
Heatilator
A36, A42, ADI Series (ADI60S, ADI-ZC-FB, ADI-ZCFB-S), BCDV36, BE-36, CB4842, CD4842, CNXT4236, CNXT4842, CNXT70, CNXT90, DV3732, DV4136, GBi25, GCBC60, GCBC80, GCDC60, GCDC80, GNTC80, MAX60, MAXUS, NOVi30, NOVi35, SC60, Titan, Twilight, Twilight II
Hearth & Home
DV3732, DV4136, DV4236 - All Variations
Heat & Glo
4000GDV, 4000TV, 5000GDV, 5000TV, 6000CBV, 6000GBV, 6000TVFL, 6000ARCH, 6000BE, 6000BEC, 6000C, 6000CAMP, 6000CF, 6000CL, 6000CLX, 6000 DVTFL, 6000G, 6000GCF, 6000 GDVFL, 6000GL, 6000GLX, 6000PLUS, 6000SEB, 6000TR, 6000TRB, 6000TRI, 6000TR-OAK, 6000TRXI, 6000TV, 6000TV-OAK, 6000TVB, 6000XLSB, 6000XLS, 6000XLT, 7000TR, 7000TV, 7000XLS, 8000ARCH, 8000BE, 8000BEC, 8000C, 8000CAMP, 8000CBV, 8000CF, 8000CL, 8000CLX, 8000 DVTFL, 8000G, 8000GBV, 8000GCF, 8000 GDVFL, 8000GL, 8000GLX, 8000PLUS, 8000SEB, 8000TRB, 8000TRC, 8000TRI, 8000TR, 8000TR-OAK, 8000TRXI, 8000TV, 8000TVFL, 8000XL, BAY-38HV, BAYFYRE-TRS, BE-32, BE-36, BE-41, BV4236, BV4842, CBS-41, CERONA-36, CERONA-42, DV3732, FB-GRAND, FB-IN, GATEWAY, GRAND-50, ST-36TRB, PIER-36TRB, LCOR-36TRB, RCOR-36TRB, Pier-TRC, ST-TRC, L-Corner-TRC, R-Corner-TRC, ST-36TR, ST-36TRLP, PIER-36TR, PIER-36TRLP, Pier-38HV, ST-38HV, Pier-TVFL, ST-42TVFL, Pier-TVFL, ST-42TVFL, Pier-HBV, ST-HBV, LCOR-HBV, RCOR-HBV, Pier-HV, ST-HV, LCOR-HV, RCOR-HV, Pier-TR, LCOR-TR, RCOR-HR, ST-HR, ST-550T, ST-GDV, NORTHSTAR, SL-3000, SL-32, SL-36, SL-42, SL-350DVT, SL-350TRS, SL-350TV, SL-36-Ultimate, SL-5 (all variations), SL-550BE, SL-550METRO, SL-550TR, SL-550TRS, SL-550TV, SL-7 (all variations), SL-750TR, SL-750TRS, SL-750TV, SL-9 (all variations), SL-950TR, SL-950TV, Olympus, Titan, TIARA
Quadra-Fire
7100 Series, Expression 36 (QV36A-FB), QFP38, QFP44, QV32, QV36, QV-ST, QV-PIER, Topaz, Twighlight II
-
SKU: GFK-160A
-
Part Type: Convection Blowers
