Heat & Glo 2103-010 Pilot Assembly Natural Gas 24 Inch Long Replaces 571-510A, 530-510A

Product Description

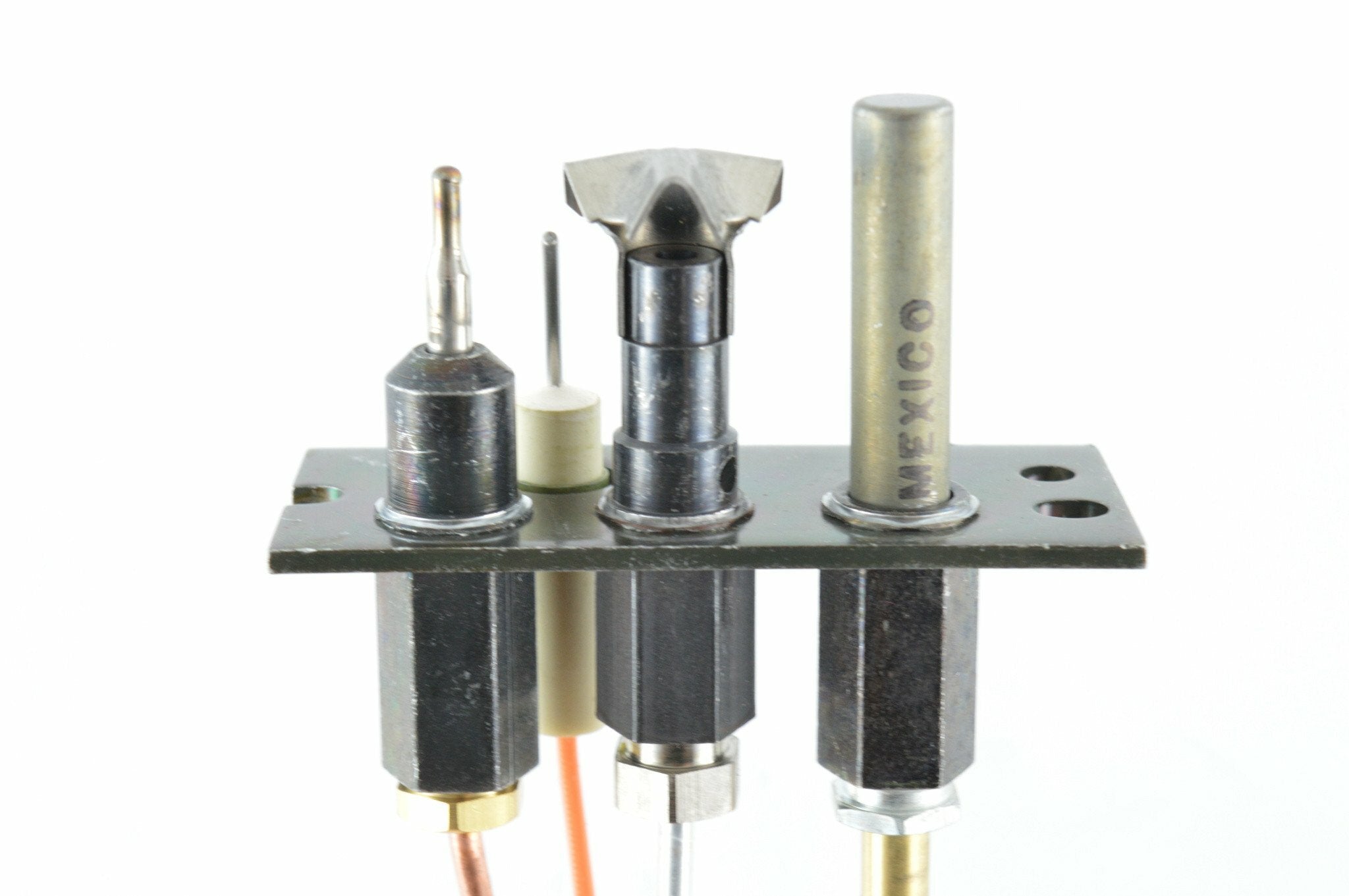

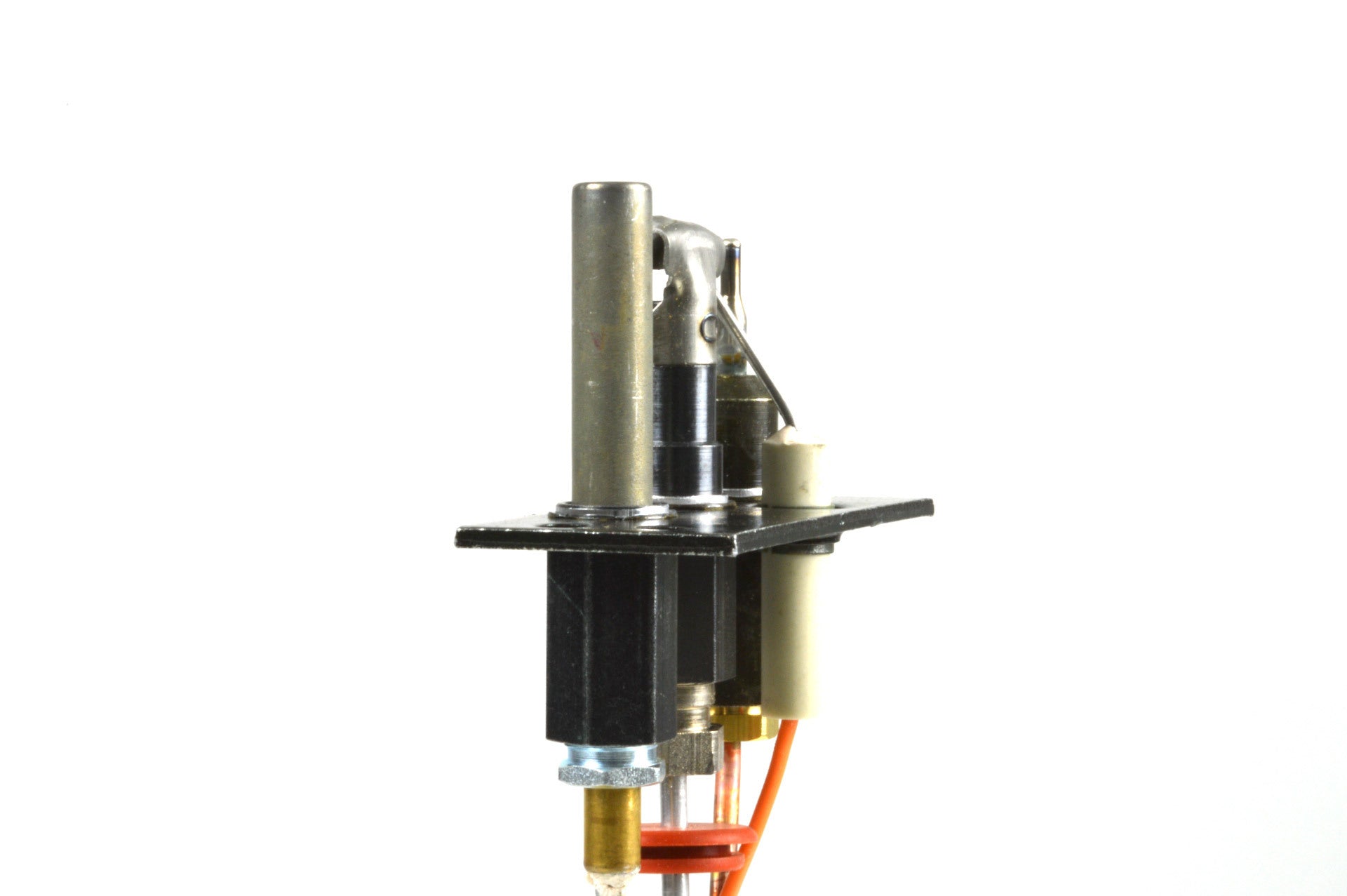

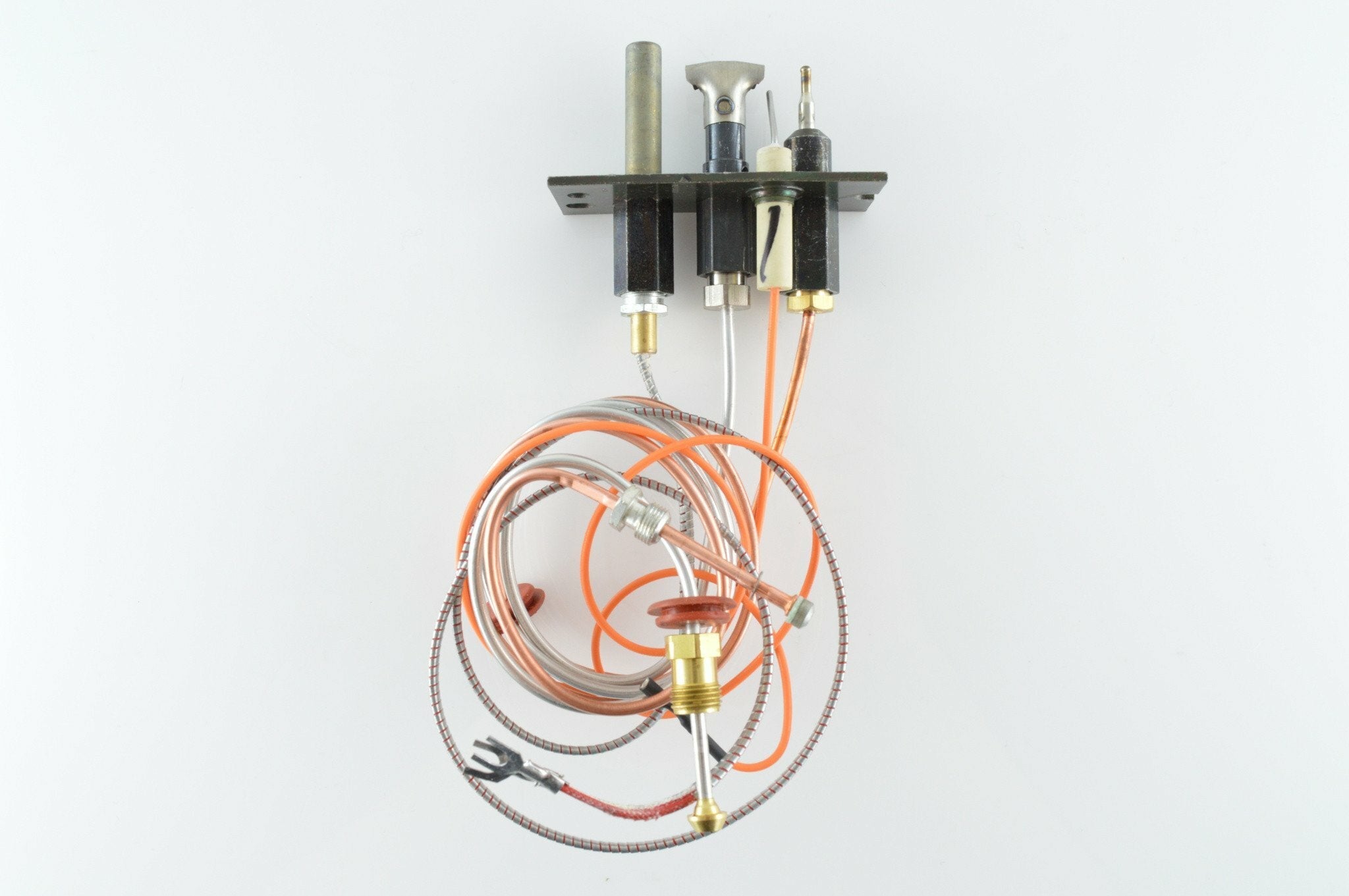

The HEAT & GLO 2103-010 Pilot Assembly is a natural gas component designed for Heat N Glo, Quadra-Fire, and Heatilator NG inserts and fireplaces. This 24-inch long assembly includes a thermocouple, thermopile, sparker electrode, and pilot tubing, featuring a fast-acting thermocouple for efficient operation. It functions with standing pilot millivolt valve systems and replaces older part numbers 571-510A and 530-510A. This assembly is not compatible with DSI, IPI, or HSI electronic ignitions.

• Complete assembly with thermocouple, thermopile, sparker electrode, and pilot tubing.
• Designed for natural gas systems and compatible with Heat N Glo, Quadra-Fire, and Heatilator NG fireplaces and inserts.
• Functions with standing pilot millivolt valve systems; not for DSI, IPI, or HSI electronic ignitions.

Product Highlights

Original HHT part, 24-inch length, and features a fast-acting thermocouple.

Product Information

Standard Information

• Brand: HEAT & GLO
• Manufacturer Part Number: 2103-010

Technical Specifications

• Brand: HHT
• Manufacturer Part Number: 2103-010
• Replaces Part Numbers: 571-510A, 530-510A
• Fuel Type: Natural Gas (NG)
• Pilot Type: Tri-flame
• System: Standing pilot millivolt valve systems
• Mounting: Top mounted
• Includes Components: Thermopile, fine thread thermocouple, pilot sensor

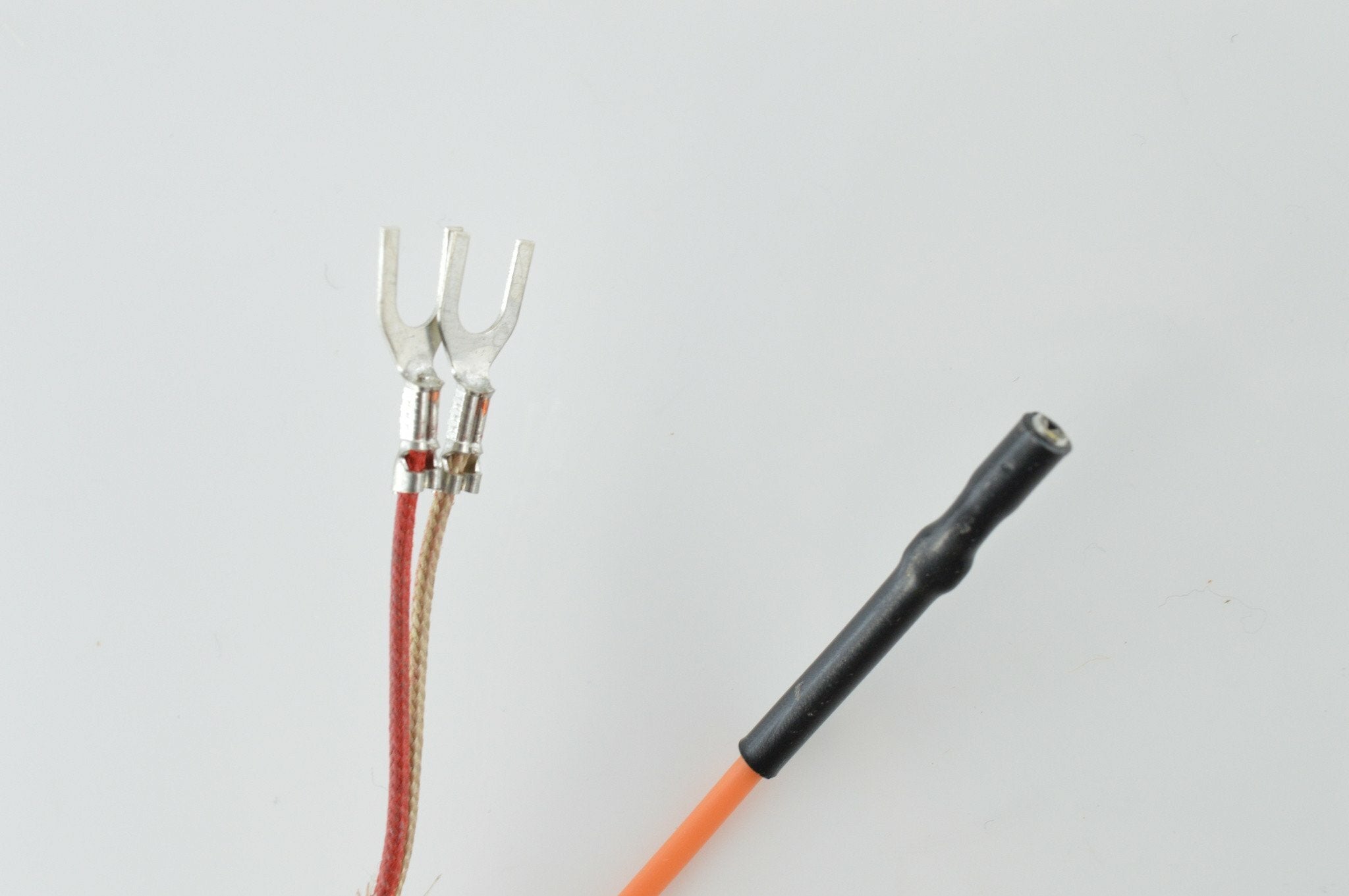

• Wiring Includes: Pilot tube, thermocouple, thermopile, ignitor wire
• Part Type: Pilot Assembly
• OEM Status: OEM HHT part
• Color: Black
• Length: 24 inches
• Ignition Compatibility: Not compatible with DSI, HSI, or IPI type electronic ignitions
• Alternative MPN: HSRV 2103010
• Cross Reference: Heat-N-Glo: 2103-010, 571-510A, 530-510A, SRV2103-010, SRV571-510A, SRV530-510A; Heatilator: 2103-010, 571-510A, 530-510A, SRV2103-010, SRV571-510A, SRV530-510A; Quadrafire: 571-510A, 530-510A, SRV571-510A, SRV530-510A, 2103-010, SRV2103-010
