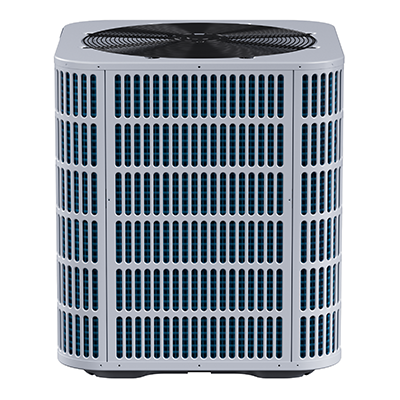

Heat Controller SAC1460S1A-CY 5 Ton R454B 14 SEER2 Condensing Unit

Product Description

The HEAT CONTROLLER SAC1460S1A-CY is a 5-ton, 60,000 BTU/h split-system air conditioning condensing unit designed for residential and light commercial cooling applications. It operates on R454B refrigerant and meets a minimum 14 SEER2 efficiency rating. The unit features a scroll compressor paired with a fin-and-tube condenser coil constructed with copper tubing and aluminum fins for reliable heat transfer. A top-discharge fan configuration directs hot air and sound away from occupied areas and landscaping. The electrical panel is pre-wired for straightforward hookup, and the unit arrives factory-charged for 15 feet of interconnecting refrigerant tubing. Licensed HVAC technicians install and commission this unit.

The SAC1460S1A-CY is intended for split-system central air conditioning installations where the condensing unit is located outdoors and paired with a compatible indoor air handler or evaporator coil. It is suited for residential or light commercial structures requiring 5-ton cooling capacity on a single-phase 208/230-volt circuit. Liquid and suction line connections are sized at 3/8 inch and 7/8 inch respectively. Internal motor overload protection guards the compressor against high-temperature conditions, and factory-installed high and low pressure switches provide additional system protection.

Key Features

• 5-ton capacity at 60,000 BTU/h for large residential or light commercial zones
• R454B refrigerant charge factory-set for 15 feet of interconnecting tubing
• Fin-and-tube condenser coil with copper tubing and aluminum fins for efficient heat transfer
• Top-discharge design routes hot air and noise away from living spaces and landscaping
• Factory-installed high and low pressure switches for compressor protection
• Internal high-temperature motor overload protection on compressor
• ETL listed for the US and Canada; AHRI 210/240 certified

Compatibility

Designed as an OEM-style outdoor condensing unit for split-system central air conditioning configurations requiring a 5-ton, single-phase, R454B-compatible outdoor section. Liquid and suction connections are 3/8 inch and 7/8 inch. Verify that the matched indoor coil or air handler is rated and approved for use with R454B refrigerant before installation.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician. Disconnect and lock out all electrical power before making any wiring or refrigerant connections. Follow local mechanical and electrical codes, including NEC requirements for disconnect sizing and overcurrent protection, as well as manufacturer clearance guidelines for the outdoor unit pad. Because the unit is factory-charged for 15 feet of line set, additional refrigerant charge adjustments will be required if the actual line set length differs from that distance.

Technical Specifications

• Capacity: 5 tons (60,000 BTU/h)
• Refrigerant: R454B
• SEER2 (Minimum): 14
• Voltage: 208/230V, 1-phase, 60 Hz
• Compressor Type: Scroll
• Coil Type: Fin and Tube (copper tubing, aluminum fins)
• Connection Size (Liquid / Suction): 3/8 inch and 7/8 inch
• Factory Refrigerant Pre-Charge: 15 feet of interconnecting tubing
• Test Listing: ETL US and Canada
• Certification: AHRI 210/240

Standard Information

• Brand: HEAT CONTROLLER
• Manufacturer Part Number: SAC1460S1A-CY
