Heat Controller PTAC15H150A 15K cooling PTAC 5 kW electric heat 208/230V (42 in) PTAC15H150A-CY

Product Description

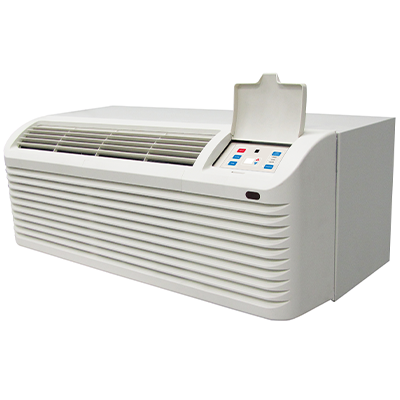

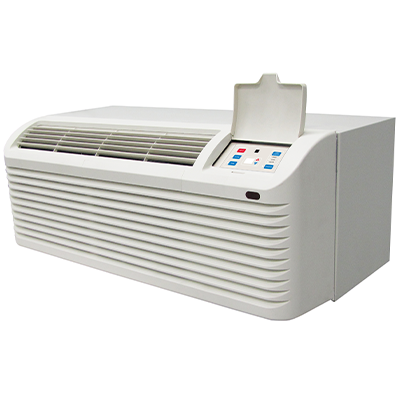

Heat Controller PTAC15H150A is a 15,000 BTU packaged terminal air conditioner with 5 kW electric heat for 208/230V single-phase operation and R32 refrigerant. It provides 14,300/14,500 BTUH cooling and up to 17,000 BTUH electric heat, with EER 10.0, two fan speeds and up to 800 CFM airflow. The unit includes an LCDI 30 Amp power cord, on-board diagnostics, smartphone compatibility, and AHRI and UL/ETL listings.

• 15,000 BTU cooling (14,300/14,500 BTUH) and 5 kW electric heat (13,900/17,000 BTUH) with EER 10.0
• 208/230-1-60 V input, R32 refrigerant, two fan speeds, maximum 800 CFM airflow and 3.27 pts/hr humidity removal
• Includes LCDI 30 Amp power cord, on-board diagnostics, smartphone compatibility; AHRI certification and UL/ETL listings

Product Highlights

15K PTAC with 5 kW electric heat, R32 refrigerant, smartphone control, on-board diagnostics and AHRI/UL/ETL certification

Product Information

Standard Information

• Brand: HEAT CONTROLLER
• Manufacturer Part Number: PTAC15H150A

Technical Specifications

• Brand: HEAT CONTROLLER
• Model Number: PTAC15H150A
• Replacement Model: PTAC15H150A-CY
• Model Series: PTAC H-Series 42"
• Configuration: 15K 208/230V Cooling with 5 kW Electric Heat
• Input Voltage: 208/230-1-60 V
• Refrigerant: R32
• Cooling Capacity (BTUH): 14,300/14,500
• Electric Heat (kW): 5 kW
• Electric Heat (BTUH): 13,900/17,000
• EER: 10.0
• Max Airflow (CFM): 800
• Fan Speeds: 2
• Modes: Cooling, Heating, Fan Only
• Humidity Removal (pts/hr): 3.27
• Sound Rating (dBA): 49/52
• Power Cord: LCDI 30 Amp
• Dimensions (W x D x H in): 42 x 21.1 x 16
• Certifications: AHRI certified; UL listed (U.S. & Canada); ETL listed (U.S. & Canada)
• Controls: On-board controls; optional wired-wall control; digital keypad; dipswitch configuration
• Filter: Two-piece filter assembly
• Fresh Air (CFM): 85 (filtered) fresh air control arm
• Service Features: On-board computer diagnostics with LED error codes
• Seacoast Option: Corrosion-resistant components available
• Smartphone Compatibility: Yes
• Note: Unit must be installed using sleeve and grill
