Heat Controller Llc rsa1560s1a 5 Ton 15 Seer Split System Ac

Product Description

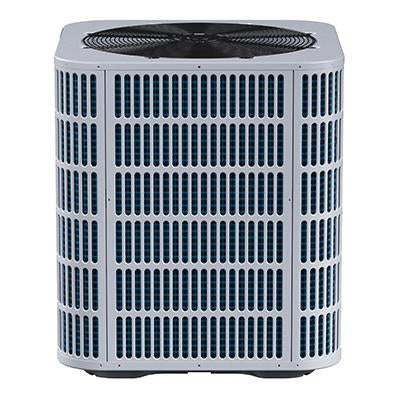

The HEAT CONTROLLER LLC rsa1560s1a is a 5-ton residential split system air conditioner rated at 60,000 BTU/h cooling capacity with a 15 SEER efficiency rating. It operates on 208/230 volts, single phase, 60 Hz power and draws 35.1 amps at full load. The unit uses a scroll compressor with R-410A refrigerant and features an electronically commutated motor (ECM) for the condenser fan. Sweat connections are required for field refrigerant line hookup. The cabinet is constructed of steel with a galvanized and polyester-coated finish for corrosion resistance. This is a condensing-unit component of a split system, installed outdoors and paired with a matched indoor evaporator coil and air handler by a licensed HVAC technician.

The rsa1560s1a is suited for residential and light-commercial cooling applications where a 5-ton single-stage system is specified. It is designed for outdoor installation and connects to a matching indoor evaporator coil via 3/8-inch liquid line and 1-1/8-inch suction line. The unit operates across a cooling ambient temperature range of 55 to 115 degrees F. The microchannel coil design with a 1-row, 18.4 square-foot face area supports efficient heat exchange while keeping the cabinet footprint compact at 33.2 inches high by 29.1 inches wide by 29.1 inches deep.

Key Features

• 60,000 BTU/h cooling capacity at 5-ton nominal rating
• 15 SEER efficiency with single-stage scroll compressor
• ECM condenser fan motor at 1050 rpm, 1/3 hp, delivering 3800 CFM airflow
• Microchannel coil design with 18.4 square-foot face area for efficient heat transfer
• Sweat connection on 3/8-inch liquid line and 1-1/8-inch suction line
• Galvanized and polyester-coated steel cabinet rated for 55 to 115 degrees F ambient operation
• 77 dB sound level with 60-amp fuse rating

Compatibility

Designed as an OEM-style outdoor condensing unit for split system installations requiring a 5-ton, single-stage, R-410A compatible indoor evaporator coil and air handler. Consult manufacturer match-up guides to confirm compatible indoor coil pairings before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 refrigerant handling regulations. Shut off all electrical power at the disconnect before making any wiring or refrigerant line connections. The outdoor unit requires a dedicated circuit with appropriate overcurrent protection not to exceed the 60-amp fuse rating stated on the nameplate. Refrigerant line sets must be properly sized, leak-tested, evacuated, and charged per manufacturer specifications before system startup.

Technical Specifications

• Nominal Capacity: 5 ton
• Cooling Capacity: 60,000 BTU/h
• SEER Rating: 15
• Voltage: 208/230 volts
• Amperage: 35.1 amps
• Fuse Rating: 60 amps
• Phase: Single phase
• Frequency: 60 Hz
• Compressor Type: Scroll
• Refrigerant: R-410A
• Motor Type: ECM
• Motor HP: 1/3 hp
• Fan Speed: 1050 rpm
• Airflow: 3800 CFM
• Sound Level: 77 dB
• Liquid Line Size: 3/8 inches
• Suction Line Size: 1-1/8 inches
• Connection Type: Sweat
• Coil Type: Microchannel, 1-Row
• Face Area: 18.4 square feet
• Number of Stages: 1
• Operating Temperature Range: 55 to 115 degrees F
• Dimensions (H x W x D): 33.2 inches x 29.1 inches x 29.1 inches
• Material: Steel
• Finish: Galvanized/Polyester-Coated
• Series: SE Series

Standard Information

• Brand: HEAT CONTROLLER LLC
• Manufacturer Part Number: rsa1560s1a
