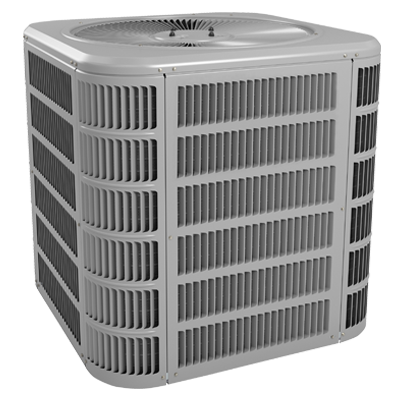

Heat Controller Llc ASA1442S1-CY 14 Seer 3.5 Ton Condenser

Product Description

The HEAT CONTROLLER LLC ASA1442S1-CY is a 14 SEER, 3.5-ton outdoor condensing unit from the LE Series, designed for residential and light-commercial split-system air conditioning. It operates on R454B refrigerant, a lower-global-warming-potential alternative now required under current EPA regulations. At 225 pounds, this is a substantial rooftop or ground-mount unit intended for installation by licensed HVAC technicians. The 14 SEER efficiency rating meets minimum federal standards for many climate regions, and the LE Series designation places it in the builder-grade and replacement-install segment of the product line.

This condensing unit is suited for new construction and retrofit applications in residential split systems where a 3.5-ton cooling capacity is matched to an appropriate air handler or evaporator coil. The R454B refrigerant charge means the matched indoor coil and lineset must be compatible with A2L refrigerant handling requirements. Installers working in jurisdictions that have adopted updated mechanical codes should verify local R454B handling and equipment approvals before installation.

Key Features

• 14 SEER efficiency rating meets current federal minimum standards for applicable regions
• 3.5-ton cooling capacity for mid-size residential and light-commercial applications
• R454B refrigerant — lower global-warming-potential A2L refrigerant formulation
• LE Series platform designed for straightforward replacement and new-construction installs
• 225-pound unit weight reflects heavy-gauge cabinet and compressor construction

Compatibility

Designed as an OEM-style outdoor condensing unit for residential and light-commercial split-system configurations requiring a 3.5-ton, 14 SEER R454B-compatible unit. No specific matched indoor model numbers were provided in the product data.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants per current EPA Section 608 requirements. Disconnect and lock out all electrical power before servicing or connecting refrigerant lines. Follow local mechanical and electrical codes, including applicable sections of the IMC and NEC, for outdoor unit placement, clearances, disconnect sizing, and linesets rated for R454B service. Do not use legacy R-22 or R-410A linesets or components without verifying compatibility with A2L refrigerant and current manufacturer guidelines.

Technical Specifications

• Efficiency Rating: 14 SEER
• Cooling Capacity: 3.5 tons
• Refrigerant Type: R454B
• Unit Weight: 225 pounds

Standard Information

• Brand: HEAT CONTROLLER LLC
• Manufacturer Part Number: ASA1442S1-CY
