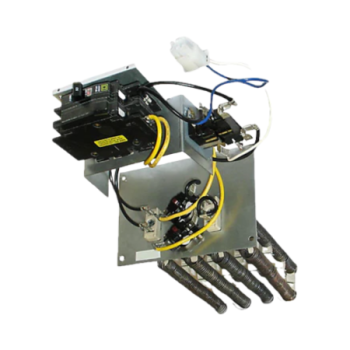

Heat Controller Llc 27a15 Electric Heat Kit 10 Kw

Product Description

The HEAT CONTROLLER LLC 27a15 is a single-phase electric heat kit rated at 10 kW, designed for forced-air HVAC systems requiring supplemental or auxiliary electric heat. Operating on a 208/230V, 60 Hz power supply, it includes an integrated 60-amp circuit breaker that provides overload and short-circuit protection without requiring a separate disconnect. The unit is ETL Listed, confirming it has been tested and certified to applicable safety standards. Licensed HVAC technicians install this kit as part of an air handler or furnace system where electric resistance heat is the specified heat source or backup.

This electric heat kit is suited for residential and light-commercial forced-air applications where electric supplemental heat is required. It is intended for use in air handler installations where the system is sized for a 10 kW heat strip. The model designation ECBA25-10CB identifies the specific kit configuration. Installation is typically performed during original equipment setup or as a field-installed accessory upgrade on compatible air handling equipment.

Key Features

• 10 kW electric resistance heat output for reliable supplemental or primary electric heat
• Integrated 60-amp circuit breaker provides overload and short-circuit protection
• 208/230V, 60 Hz single-phase operation covers common residential and light-commercial supply voltages
• ETL Listed for safety compliance with applicable North American standards
• Single-phase design simplifies wiring requirements in standard residential installations

Compatibility

Designed as an OEM-style electric heat kit replacement or accessory for forced-air air handler systems requiring a 10 kW single-phase heat strip. The alternate model designation for this kit is ECBA25-10CB.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the air handler before handling or installing the heat kit. Verify that the supply circuit ampacity and breaker sizing at the panel are compatible with the unit's electrical requirements before energizing. Do not bypass or defeat the integrated circuit breaker.

Technical Specifications

• Heating Capacity: 10 kW
• Voltage: 208/230 volts
• Frequency: 60 Hz
• Phase: Single-phase
• Circuit Breaker Rating: 60 amps
• Certifications: ETL Listed
• Alternate Part Number: ECBA25-10CB

Standard Information

• Brand: HEAT CONTROLLER LLC
• Manufacturer Part Number: 27a15
