Heat Controller DGAX090BDTA Guardian DGAX090BDTA 90 MBH 4 Ton REPLACEMENT Dgaa090bdtd

Product Description

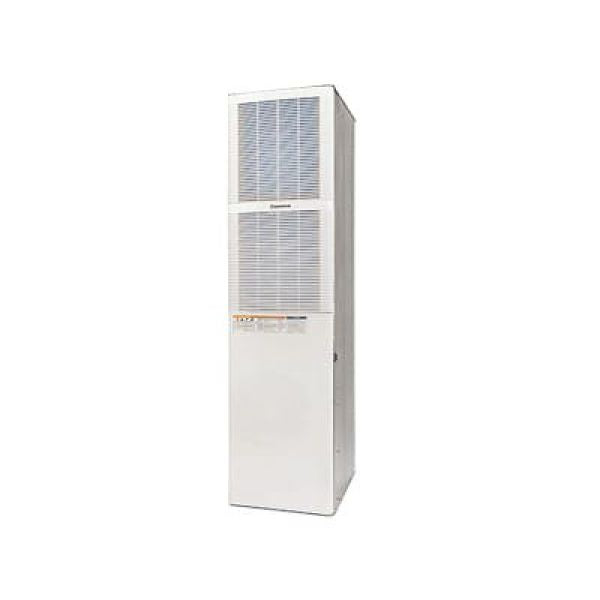

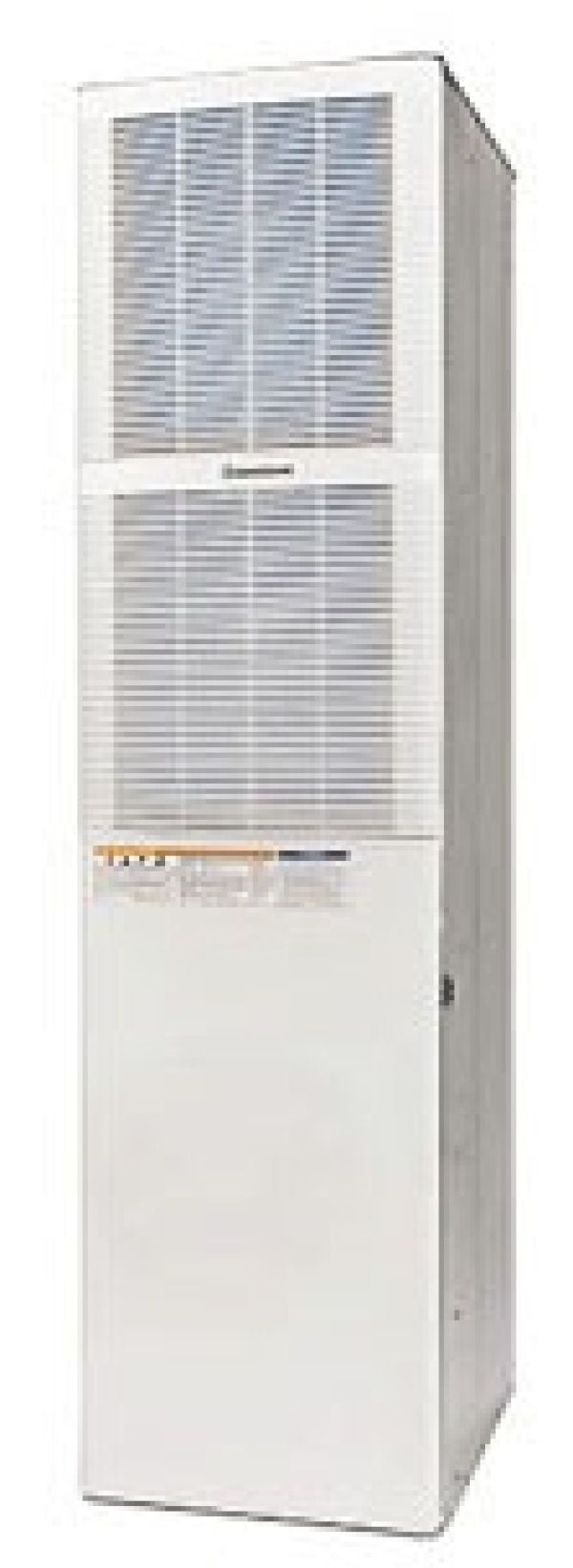

The HEAT CONTROLLER DGAX090BDTA Guardian DGAX Series gas furnace functions as a powerful air handler, managing up to 4 tons of cooling. With a capacity of 90 MBH and an AFUE Level of 80%+, this downflow gas furnace features a standard ECM fan motor. It operates at 115 V and 60 Hz, with a 1/3 hp motor.

• Powerful air handler
• Can handle up to 4 ton of cooling
• Additional blower accessories will provide 5 ton of cooling

Product Highlights

The DGAX090BDTA is a 90 MBH downflow gas furnace with an 80%+ AFUE rating, suitable for manufactured homes.

Product Information

Standard Information

• Brand: HEAT CONTROLLER
• Manufacturer Part Number: DGAX090BDTA

Technical Specifications

• Model: DGAX
• Tonnage: 4 ton
• %AFUE Level: 80%+
• Type: Gas Furnace
• Fan Motor: Standard ECM
• Configuration: Downflow
• Capacity: 90 MBH
• Brand: Guardian
• Manufacturer: Johnson Controls
• Manufacturer Part Number: DGAX090BDTA
• AFUE Rating: 80 %
• BTU Per Hour: 90000 BTU/Hour
• CFM Rating: 1305 cfm
• Connection Size: 1/2 in
• Connection Type: NFPT
• Frequency Rating: 60 Hz
• Fuel Type: Natural Gas
• Fuse Rating: 15 A
• HP Rating: 1/3 hp
• Ignition Type: Automatic Hot Surface
• Input BTU Rating: 90 mbh
• Motor Type: PSC
• Number Of Speeds: 2
• Output BTU Rating: 72 mbh
• Phase: 1
• Pressure Rating: 0.3 in-WC
• Standards/Approvals: AHRI DOE 10 CFR PART 430|CSA Certified
• Temperature Rise: 45 to 75 deg F
• Voltage Rating: 115 V
