Heat Controller ASA1418S1-CY 1.5 Ton Ac Condenser 14 SEER2

Product Description

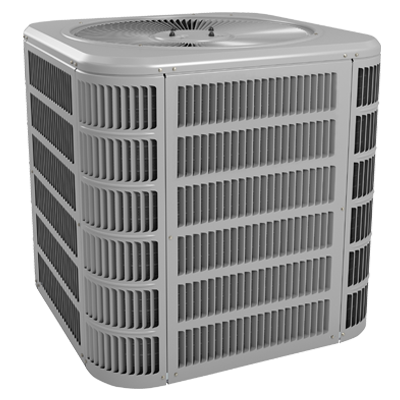

The HEAT CONTROLLER ASA1418S1-CY is a 1.5-ton residential split-system air conditioning condenser designed for use with R454B refrigerant. Rated at 14 SEER2 and built around a scroll compressor, this unit delivers efficient cooling for single-phase residential applications. The condenser coil uses aluminum tubing with an enhanced lanced fin design to maximize heat transfer capacity. The unit ships factory-charged for 15 feet of interconnecting tubing and includes a factory-installed high-pressure switch. A liquid-line drier is included loose for field installation. Licensed HVAC technicians perform this type of installation as part of a matched split system.

This condenser is suited for residential split-system cooling applications where a 1.5-ton, 208/230-volt single-phase unit is specified. It operates on 208/230V-1-60 power and accepts liquid and suction line connections sized at 3/8 inch and 3/4 inch respectively. The top-discharge configuration directs hot air and sound upward, away from occupied areas and landscaping. All units are factory run-tested before shipment. Pre-wired electrical panels allow for straightforward field hookup, and the electrical compartment is designed for easy access during installation and service.

Key Features

• R454B refrigerant — low-GWP next-generation refrigerant meeting current regulatory requirements
• Enhanced lanced aluminum fin-and-tube condenser coil for high heat transfer efficiency
• Top-discharge design directs airflow and sound away from living areas and shrubbery
• Factory-installed high-pressure switch for system protection
• Pre-charged for 15 feet of interconnecting refrigerant tubing
• Factory run-tested; ETL listed for US and Canada and AHRI 210/240 certified

Compatibility

Designed as an OEM-style replacement or new-installation condenser for residential single-phase split-system cooling applications requiring a 1.5-ton, R454B-compatible outdoor unit rated at 14 SEER2. Liquid and suction line connection sizes are 3/8 inch and 3/4 inch. Consult AHRI certification data and the equipment submittals for matched indoor coil or air handler compatibility.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Disconnect and lock out all electrical power before servicing the unit. Install the liquid-line drier shipped loose per manufacturer instructions before commissioning. Follow local mechanical and electrical codes, including applicable sections of the NEC, for line sizing, disconnect requirements, and equipment clearances.

Technical Specifications

• Capacity: 1.5 tons (18000 BTU/h)
• SEER2 (Min.): 14
• Refrigerant: R454B
• Voltage: 208/230V-1-60
• Compressor Type: Scroll
• Coil Type: Fin and Tube
• Connection Size: 3/8 inch liquid line, 3/4 inch suction line
• Test Listing: ETL US and Canada
• Certification: AHRI 210/240

Standard Information

• Brand: HEAT CONTROLLER
• Manufacturer Part Number: ASA1418S1-CY
