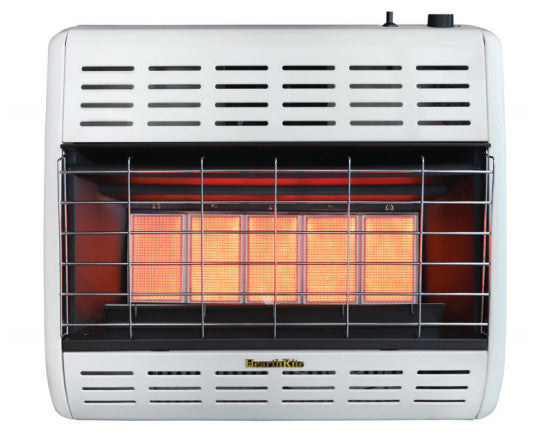

Hearthrite HRW30TN Vent Free Infrared Gas Heater 30000 Btu/h

Product Description

The HEARTHRITE HRW30TN is a 30,000 BTU/h infrared and radiant vent-free natural gas heater designed for supplemental space heating in residential and light commercial applications. Operating at 99.9% efficiency with no flue or venting required, it delivers heat through infrared and radiant flame technology, warming occupants and surfaces directly rather than cycling air. The unit runs entirely without electricity, making it functional during power outages. Ignition is handled by a standing pilot with push-button start. A built-in Oxygen Depletion Sensor (ODS) continuously monitors room oxygen levels and shuts the heater off automatically before levels reach an unsafe threshold. Thermostatic control is included for automatic temperature regulation.

The HRW30TN is intended for wall or floor installation in rooms where supplemental heat is needed and venting is not practical or available. The wall mount kit is included; an optional floor stand kit is available separately. An optional blower accessory is also available to improve heat distribution. This model is configured for natural gas only. A manual-control version of this heater is available under part number HRW30MN. This product cannot be shipped to California per vent-free product regulations. Professional installation by a certified gas technician is required, and all repairs must be performed by a qualified service contractor in compliance with local codes.

Key Features

• 30,000 BTU/h infrared and radiant vent-free heating with 99.9% efficiency
• Standing pilot ignition with push-button start — no electricity required
• Built-in ODS shuts heater off automatically when oxygen drops to unsafe levels
• Thermostatic control included for automatic room temperature regulation
• Wall mount kit included; optional floor stand and blower accessories available
• AHRI certified and Design Certified

Compatibility

Designed for use with natural gas supply systems. Compatible with optional HEARTHRITE floor stand kit and optional blower accessory. Manual-control equivalent is the HRW30MN.

Installation Notes

Installation must be performed by a licensed or certified gas technician in accordance with local codes and the manufacturer instructions. Shut off the gas supply at the main valve before making any connections. Observe all required clearances: 36 inches to ceiling, 3 inches to floor, and 8 inches to side walls. Gas connection is 3/8 inch; verify manifold pressure and inlet gas pressure are within specified ranges before commissioning the unit.

Technical Specifications

• Heating Capacity: 30,000 BTU/h
• Fuel Type: Natural Gas (NG)
• Flame Type: Infrared / Radiant
• Venting Type: Vent Free
• Ignition Type: Standing Pilot
• Control Type: Thermostatic
• Gas Connection Size: 3/8 inches
• Manifold Pressure: 6.0 inches w.c.
• Inlet Gas Pressure (Min.): 7.0 inches w.c.
• Inlet Gas Pressure (Max.): 10.5 inches w.c.
• Clearance — Top to Ceiling: 36 inches
• Clearance — Bottom to Floor: 3 inches
• Clearance — To Side Wall: 8 inches
• Installation Type: Floor or Wall Mount
• Installation Kit: Wall Kit Included / Floor Stand Kit Optional
• Blower: Optional
• Width: 27.16 inches
• Depth: 7.44 inches
• Height: 23 inches
• Net Weight: 25.6 pounds
• Certifications: AHRI, Design Certified

Standard Information

• Brand: HEARTHRITE
• Manufacturer Part Number: HRW30TN
