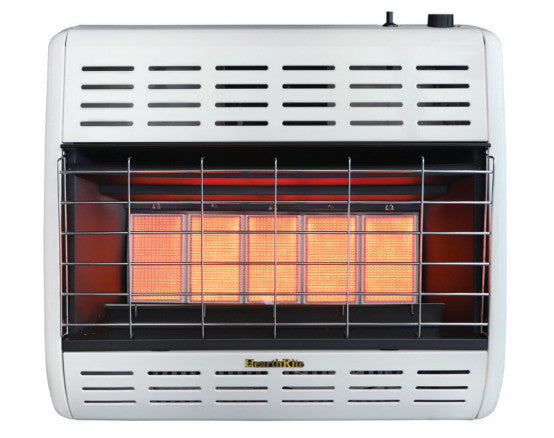

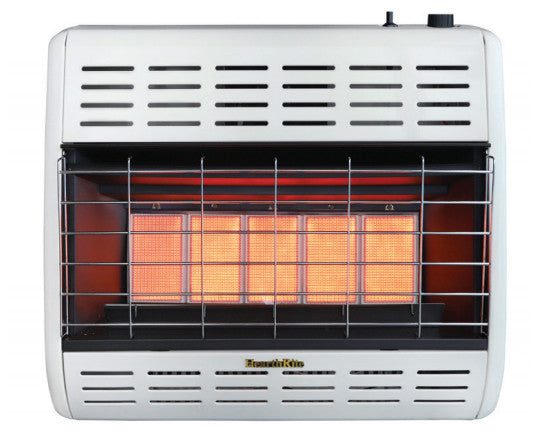

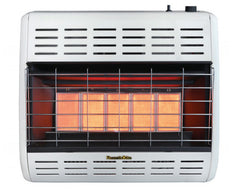

Hearthrite HRW30MN 30000 Btu Vent Free Infrared Gas Heater

Product Description

The HEARTHRITE HRW30MN is a 30,000 BTU/h infrared radiant vent-free gas heater designed for natural gas service. It operates at 99.9% thermal efficiency and requires no flue or exhaust venting, making it a practical supplemental or primary heat source in spaces where duct or chimney access is unavailable. The unit uses a standing pilot ignition with push-button startup and manual top-mounted controls. An Oxygen Depletion Sensor (ODS) monitors ambient oxygen levels and shuts the heater down automatically before conditions become unsafe. Licensed gas technicians and qualified HVAC service contractors are the intended installers for this unit.

The HRW30MN is intended for residential or light commercial supplemental heating applications where natural gas is available and local codes permit vent-free appliances. It is rated for floor or wall mounting, with a wall-mount kit included and an optional floor stand available separately. An optional blower can also be added to improve heat distribution. The unit ships in a white finish with manual controls. A thermostatically controlled variant, the HRW30TN, is available for installations requiring automatic temperature regulation. This unit is not approved for sale or installation in the state of California.

Key Features

• 30,000 BTU/h infrared radiant output with 99.9% efficiency rating
• Vent-free operation — no flue, chimney, or exhaust pipe required
• Oxygen Depletion Sensor (ODS) shuts off the unit before oxygen reaches unsafe levels
• Standing pilot ignition with push-button startup
• Manual top-mounted controls; thermostatically controlled model also available
• Wall-mount kit included; optional floor stand and blower available separately
• Factory test-fired before shipment

Compatibility

Designed for natural gas service only. Compatible with optional HEARTHRITE floor stand and blower accessories as noted by the manufacturer. The thermostatically controlled equivalent model is the HRW30TN. Not approved for installation in California.

Installation Notes

Installation must be performed by a licensed gas technician in accordance with all applicable local codes and the manufacturer instructions. Shut off the gas supply at the main valve before making any connections. Observe all required clearances: 36 inches to ceiling above the unit, 3 inches from the floor below, and 8 inches from any side wall. All repairs must be completed by a qualified service contractor.

Technical Specifications

• Heating Capacity: 30,000 BTU/h
• Fuel Type: Natural Gas (NG)
• Flame Type: Infrared / Radiant
• Ignition Type: Standing Pilot
• Control Type: Manual
• Venting Type: Vent Free
• Gas Connection Size: 3/8 inches
• Manifold Pressure: 6.0 inches w.c.
• Inlet Gas Pressure Minimum: 7.0 inches w.c.
• Inlet Gas Pressure Maximum: 10.5 inches w.c.
• Clearance Top to Ceiling: 36 inches
• Clearance Bottom to Floor: 3 inches
• Clearance to Side Wall: 8 inches
• Width: 27.16 inches
• Depth: 7.44 inches
• Height: 23 inches
• Net Weight: 25.6 pounds
• Installation Type: Floor or Wall Mount
• Blower: Optional
• Certifications: AHRI, Design Certified

Standard Information

• Brand: HEARTHRITE
• Manufacturer Part Number: HRW30MN
