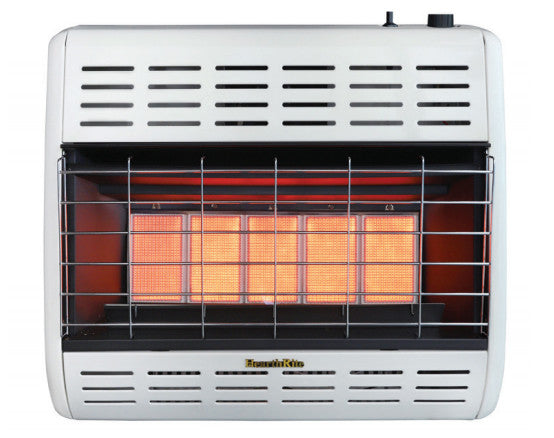

Hearthrite HRW25ML Vent Free Infrared Gas Heater 25000 Btu

Product Description

The HEARTHRITE HRW25ML is a 25,000 BTU/h vent-free infrared and radiant gas heater designed for liquid propane (LP) operation. It delivers supplemental or primary space heating without any flue or venting requirement, making it practical for rooms where duct or venting work is not feasible. The unit operates at 99.9% thermal efficiency, and its standing pilot ignition with push-button piezo start keeps it fully functional during power outages. A factory-installed Oxygen Depletion Sensor (ODS) automatically shuts the unit off before oxygen levels drop to an unsafe concentration. Installation and service must be performed by a certified gas technician.

The HRW25ML is suited for residential and light-commercial applications where supplemental zone heating is needed without electrical dependency. It ships with a wall-mount kit included; an optional floor stand is available separately. The unit is available in a white finish and is offered in LP only. A thermostatic-control version is available under model HRW25TL. An optional blower can be added for improved air circulation. LP installations require a 100-pound or larger propane tank and an external regulator providing an output of 11 to 14 inches water column (w.c.). This product cannot be shipped to the state of California.

Key Features

• 25,000 BTU/h infrared and radiant heat output with 99.9% thermal efficiency
• Vent-free design eliminates flue or chimney requirements
• Oxygen Depletion Sensor shuts off heater before oxygen reaches an unsafe level
• Standing pilot with push-button piezo ignition operates without electrical power
• Wall-mount kit included; optional floor stand and blower sold separately
• Every unit is test-fired at the factory before shipment

Compatibility

Designed for use with liquid propane gas supply only. Requires a 100-pound or larger LP tank and an external regulator with an output pressure of 11 to 14 inches w.c. A thermostatic-control variant is offered under model HRW25TL. Optional blower and floor stand accessories are available separately.

Installation Notes

Installation must be performed by a licensed or certified gas technician in accordance with all applicable local codes. Shut off the LP gas supply at the tank before making any gas connections. The inlet gas connection requires a 3/8-inch line; verify regulator output pressure is within the 11 to 14 inches w.c. required range before operation. Maintain required clearances: 36 inches to ceiling, 3 inches to floor, and 8 inches to side walls. Repairs must be performed by a qualified service contractor.

Technical Specifications

• Heating Capacity: 25,000 BTU/h
• Fuel Type: Liquid Propane (LP)
• Flame Type: Infrared / Radiant
• Venting Type: Vent Free
• Ignition Type: Standing Pilot with Push-Button Piezo
• Control Type: Manual
• Gas Connection Size: 3/8 inches
• Manifold Pressure: 10.0 inches w.c.
• Inlet Gas Pressure (Min): 11.0 inches w.c.
• Inlet Gas Pressure (Max): 14.0 inches w.c.
• Blower: Optional
• Installation Type: Floor or Wall Mount
• Installation Kit: Wall Kit Included / Floor Stand Kit Optional
• Clearance — Top to Ceiling: 36 inches
• Clearance — Bottom to Floor: 3 inches
• Clearance — To Side Wall: 8 inches
• Width: 27.16 inches
• Depth: 7.44 inches
• Height: 23 inches
• Net Weight: 25.6 pounds
• Certifications: AHRI, Design Certified

Standard Information

• Brand: HEARTHRITE
• Manufacturer Part Number: HRW25ML
