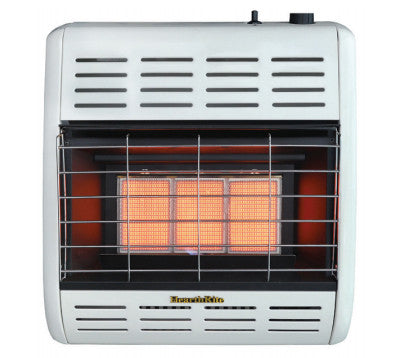

Hearthrite HRW18MN 18000 Btu Vent Free Gas Heater Natural Gas

Product Description

The HEARTHRITE HRW18MN is an 18,000 BTU infrared and radiant vent-free gas heater designed for natural gas service. Operating without a flue or chimney connection, it delivers 99.9% fuel efficiency by keeping all combustion heat in the conditioned space. The unit runs on a standing pilot with manual control and is suited for supplemental or primary zone heating in residential or light commercial applications. A built-in Oxygen Depletion Sensor (ODS) continuously monitors oxygen levels and automatically shuts the heater off if levels fall below a safe threshold. Wall mounting hardware is included; an optional floor stand is available separately.

This heater is intended for use in rooms where a flue connection is impractical or not available. Standard installation is wall mount, though the optional floor stand allows freestanding placement. A blower accessory is available separately to improve warm-air circulation throughout the space. The HRW18MN is rated for natural gas only and comes in a white finish. A thermostatic-control version of this unit, the HRW18TN, is also available. Professional installation by a certified gas technician is required, and all repairs must be performed by a qualified service contractor.

Key Features

• 18,000 BTU infrared and radiant heat output with vent-free, 99.9% efficiency operation
• Built-in ODS shuts off the unit automatically when oxygen levels drop to an unsafe level
• Standing pilot ignition with manual control for straightforward, reliable operation
• Wall mount kit included; optional floor stand and blower available separately
• Natural gas fuel type with a 3/8-inch gas connection
• AHRI certified and Design Certified for verified performance standards

Compatibility

Designed for natural gas supply systems in residential and light commercial settings. A thermostatic-control variant, the HRW18TN, is also available within the same product family. This unit is not approved for installation in the state of California.

Installation Notes

Installation must be performed by a licensed gas technician in compliance with all applicable local codes. Shut off the gas supply at the service valve before beginning any connection work. Required clearances must be maintained: 36 inches to the ceiling above, 3 inches to the floor below, and 8 inches to any side wall. Do not operate the unit without verifying that the ODS pilot assembly is functioning and that inlet gas pressure falls within the specified range.

Technical Specifications

• Heating Capacity: 18,000 BTU/h
• Fuel Type: Natural Gas (NG)
• Flame Type: Infrared / Radiant
• Venting: Vent Free
• Ignition Type: Standing Pilot
• Control Type: Manual
• Gas Connection Size: 3/8 inches
• Manifold Pressure: 6.0 inches w.c.
• Inlet Gas Pressure Minimum: 7.0 inches w.c.
• Inlet Gas Pressure Maximum: 10.5 inches w.c.
• Installation Type: Floor or Wall Mount
• Installation Kit: Wall Kit Included / Floor Stand Kit Optional
• Blower: Optional (sold separately)
• Clearance to Ceiling: 36 inches
• Clearance to Floor: 3 inches
• Clearance to Side Wall: 8 inches
• Width: 19.84 inches
• Depth: 7.44 inches
• Height: 23 inches
• Net Weight: 18.3 pounds
• Certifications: AHRI, Design Certified

Standard Information

• Brand: HEARTHRITE
• Manufacturer Part Number: HRW18MN
